SAJ AS1-3KS-5.1 User Manual page 29

Hide thumbs Also See for AS1-3KS-5.1:

Table of Contents

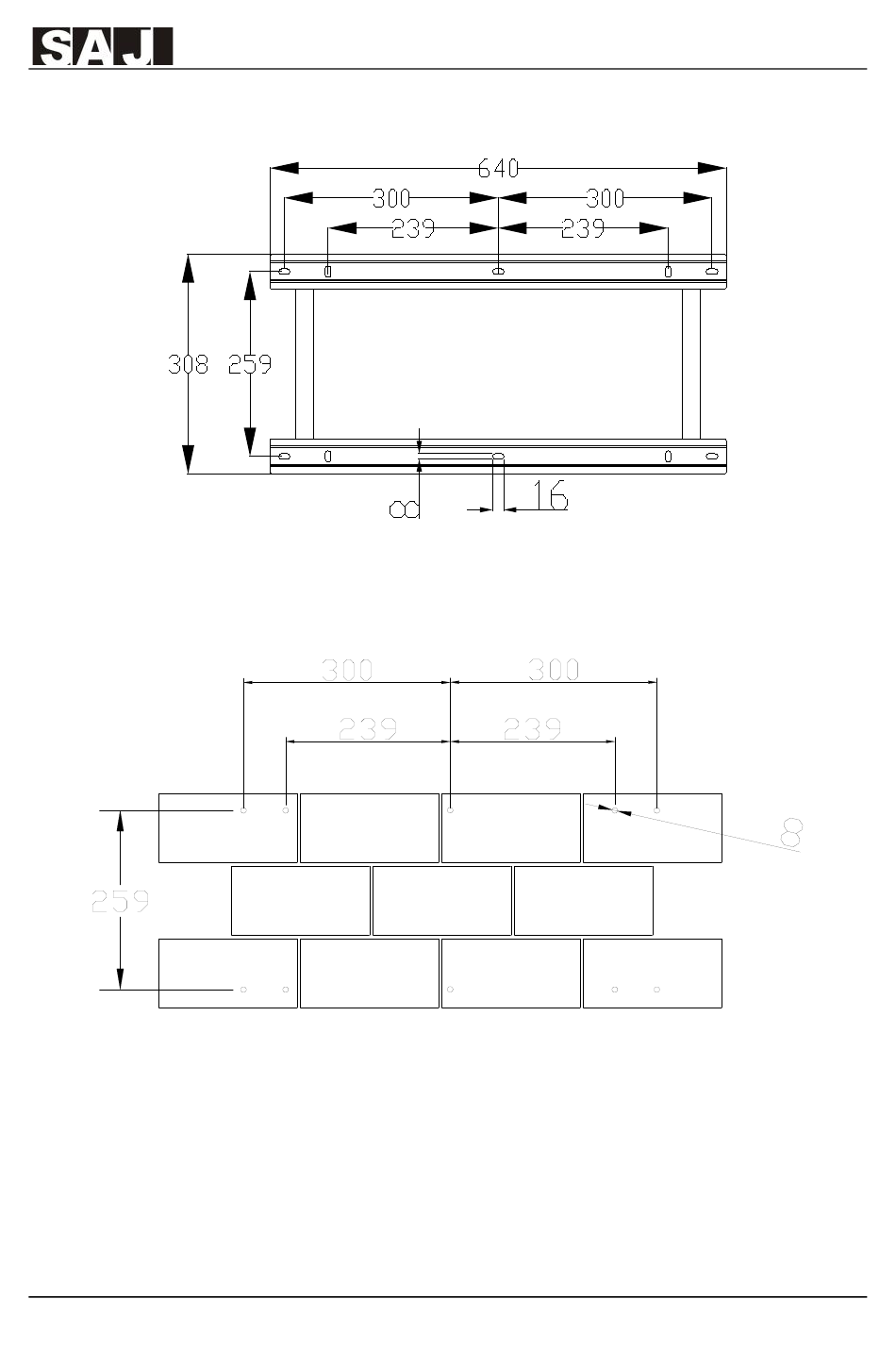

Fig. 3.10 B1-5.1-48 hanging panel dimension

∅

Fig.3.11 B1-5.1-48 Hanging holes position on the wall Unit: mm

Note: The recommended installation distances among the AS1 and

the B1 mounting brackets can be found in Fig. 3.12.

- 28 -
