VOCALISER INSTALLATION MANUAL

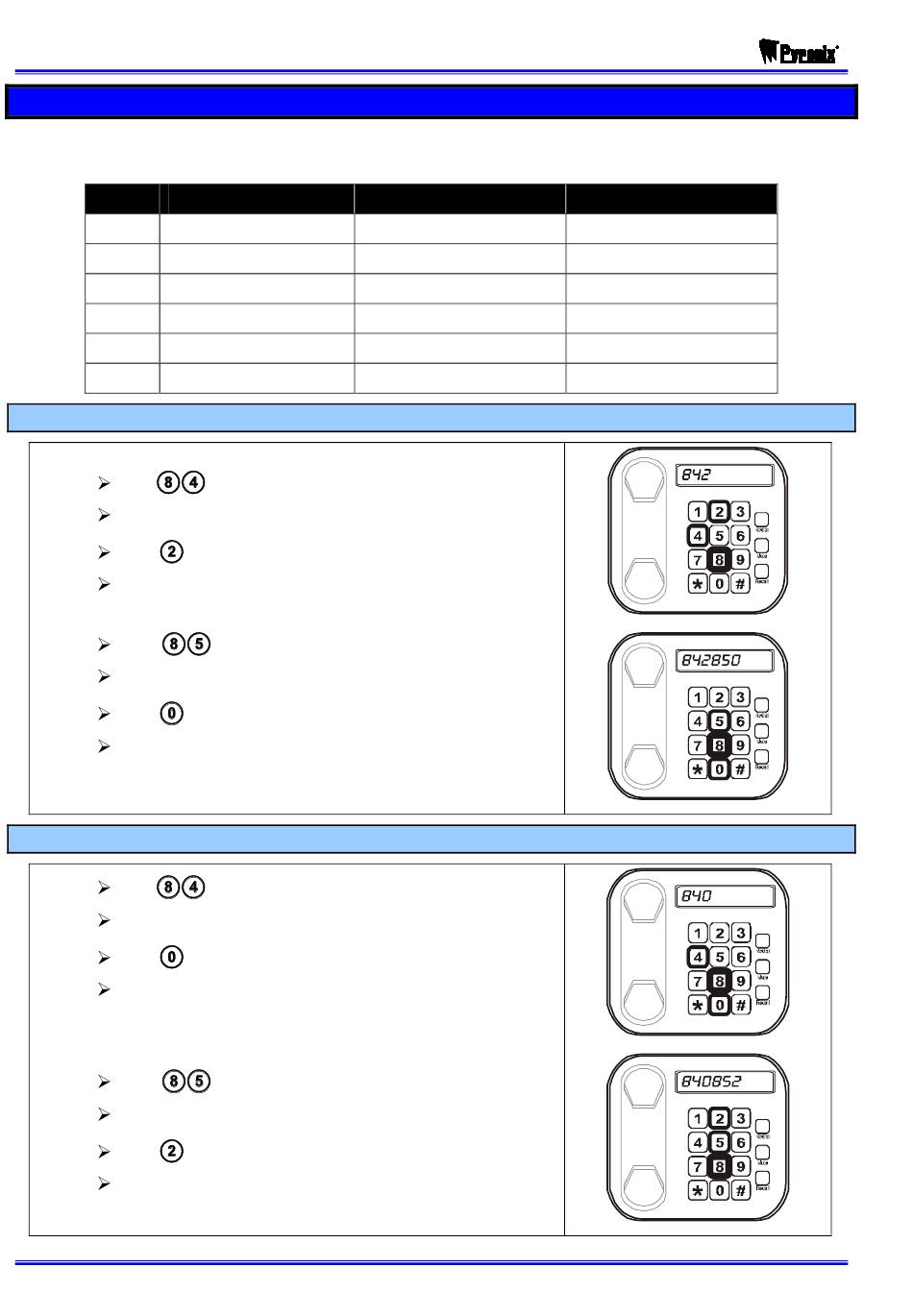

7 . 3 T h e O u t p u t 2 S t a t e ( A C K )
At default the ACK output is programmed as negative applied. The following states can be
chosen this output:
State Output Type
1 Negative Applied
2 Negative Removed
3 Positive Applied
4 Positive Removed
5 Negative Logic
6 Positive Logic

7.3.1 Output 2 State 1 Negative Applied:

Dial
A 'BEEP' will be heard
Dial
"SAVED, PLEASE ENTER COMMAND" will be
heard
Dial
a 'BEEP' will be heard
Dial
"SAVED, PLEASE ENTER COMMAND" will be
heard. You will be returned to the engineer menu.

7.3.2 Output 2 State 2 Negative Removed:

Dial
a 'BEEP' will be heard
Dial
"SAVED, PLEASE ENTER COMMAND" will be
heard
Dial
a 'BEEP' will be heard
Dial
"SAVED, PLEASE ENTER COMMAND" will be
heard You will be returned to the engineer menu.
Page: 18
for Negative applied for Output 2
for negative removed for Output 2
"OFF State"
No Voltage
0V
No Voltage
12V
12V
0V
"ON State"
0V
No Voltage
12V
No Voltage
0V
12V
