VOCALISER INSTALLATION MANUAL
The polarity of the inputs on the Vocaliser (see page 2, Vocaliser PCB) can be changed to
various different triggers.

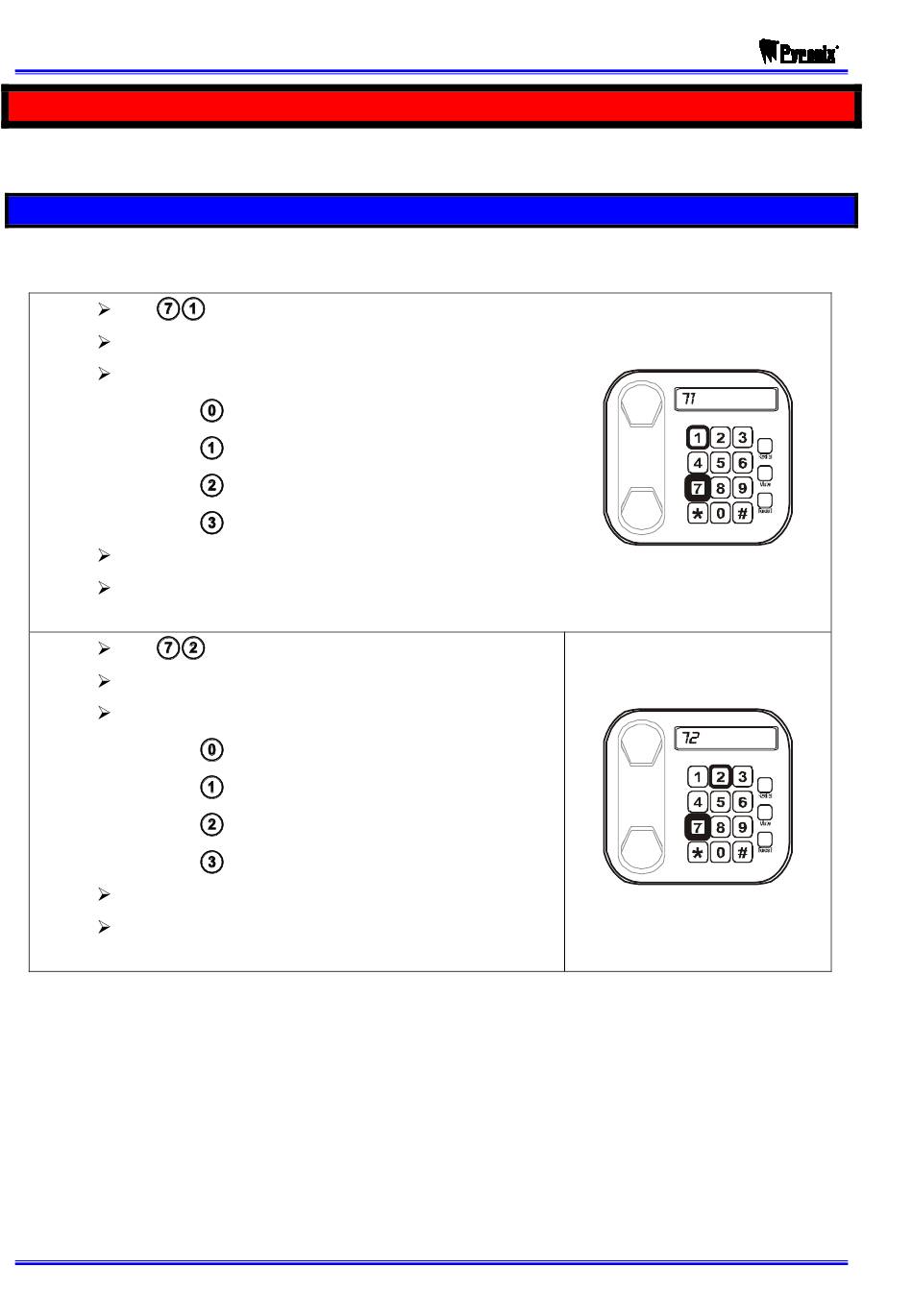

6 . 1 T h e I n p u t s S t a t e
There are four inputs on the Vocaliser, at default these are programmed as negative applied.
To change this setting please follow the below instructions:
Dial
"ONE" will be heard.
Enter the trigger type:
Dial
o
Dial
o
Dial
o
Dial
o
"SAVED" will be heard.
"PLEASE ENTER COMMAND" will be heard
returning you to the engineer menu.
Dial
"TWO" will be heard.
Enter the trigger type:
Dial
o
Dial
o
Dial
o
Dial
o
"SAVED" will be heard.
"PLEASE ENTER COMMAND" will be heard
returning you to the engineer menu.
Page: 12
C H A P T E R 6 : I N P U T S ( 1 , 2 , 3 , & 4 )
to change input 1.
for Negative Applied (default) or
for Positive Removed or
for Negative Removed or
for Positive Applied
to change input 2.
for Negative Applied (default) or
for Positive Removed or
for Negative Removed or
for Positive Applied
RINS119-5
