VOCALISER INSTALLATION MANUAL

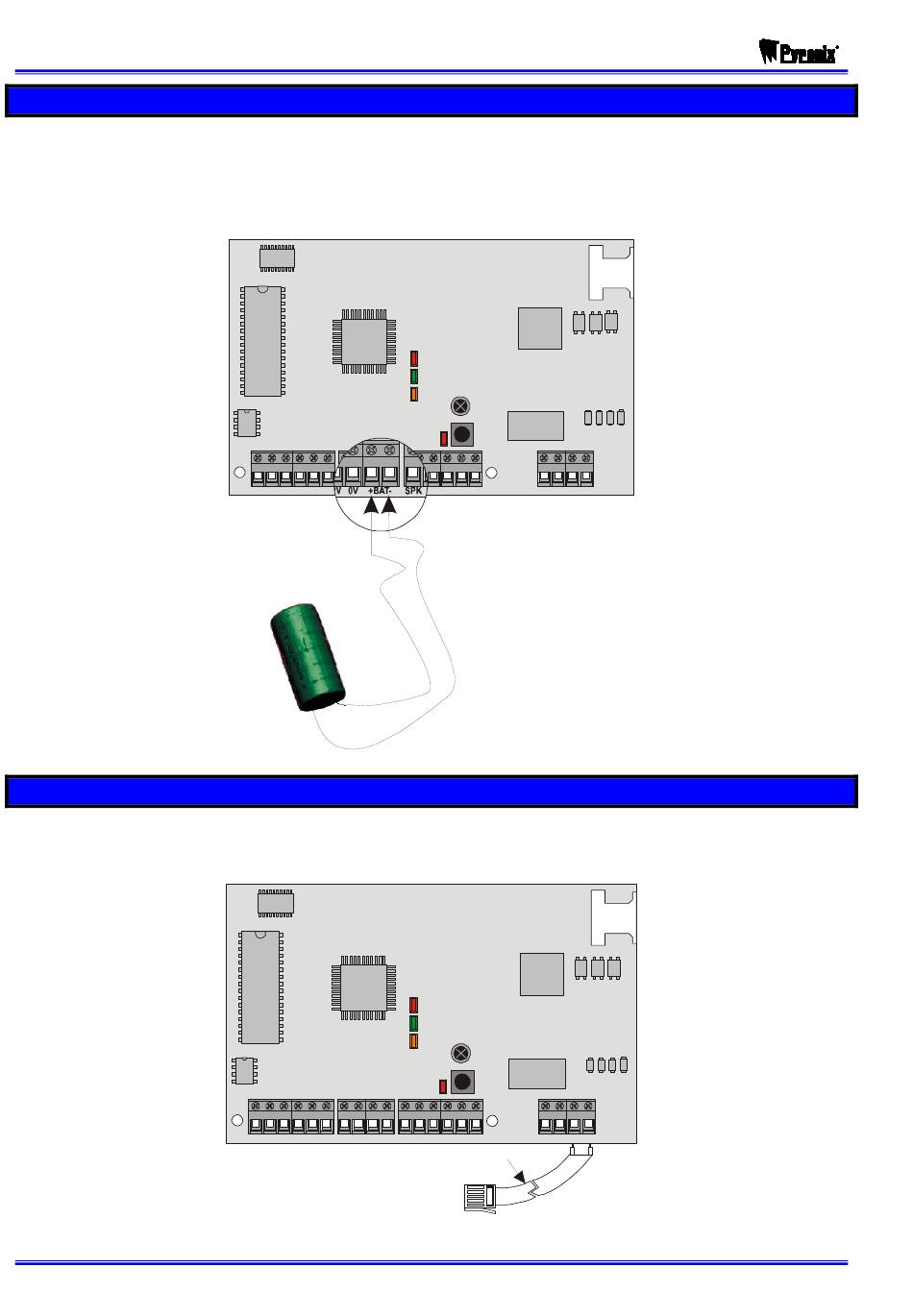

3 . 6 C o n n e c t i n g T h e B a t t e r y
If the mains power is lost on the Vocaliser, all alarm messages will be erased from memory,
therefore it is useful to connect a battery to the Vocaliser stop this from happening, the battery
will store the messages in the memory for approximately one hour.
A 7.2V NiCad battery is connected to the Vocaliser via the terminals +BAT- as shown below:
3 . 7 C o n n e c t i o n T o T h e T e l e p h o n e L i n e
The supplied cable may be wired either way round using the red and white wires, into the
terminals labelled "A" and "B" as shown below.
Page: 8
Vocaliser
1 2 3 4 FLT ACK 12V 0V +BAT- SPK M- M+ MIC T
Battery
7.2V NiCad
Battery
Vocaliser
12V 0V +BAT- SPK M- M+ MIC T
1 2 3 4 FLT ACK
T A1 B1 A B
Not Supplied
T A1 B1 A B
Telephone Plug
RINS119-5
