Connecting Microphones; Connecting Speakers - Pyronix Vocaliser Installation Manual

3 . 4 C o n n e c t i n g M i c r o p h o n e s

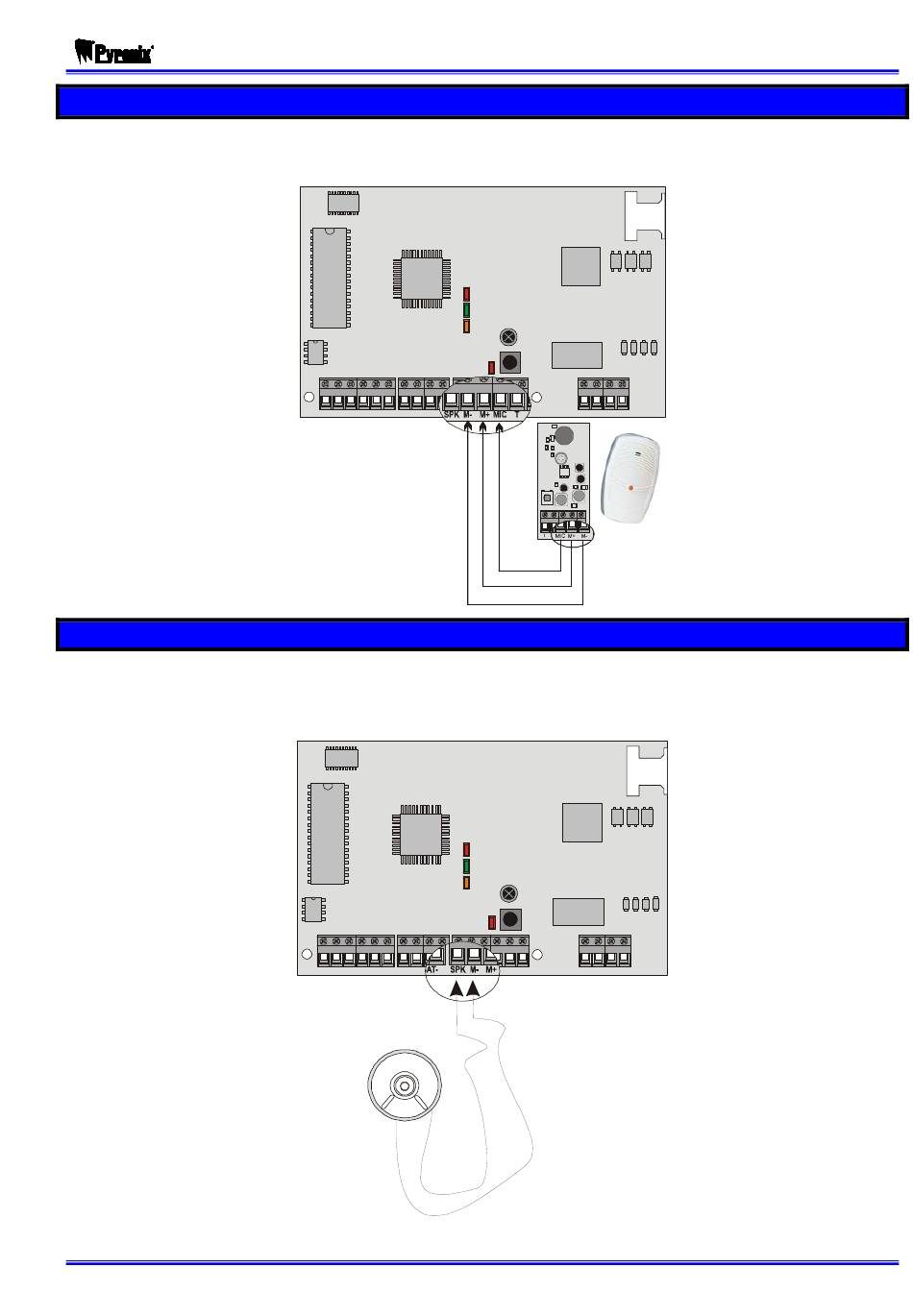

The Vocaliser may have up to 3 number of microphones connected, which will monitor the
premises. This is used when the listening in function is enabled (see the user manual).
3 . 5 C o n n e c t i n g S p e a k e r s
The Vocaliser can have any number of speakers connected, providing it doesn't exceed
16ohms. This enables the user to speak into the premises and is used in the 'Talking in'
function (see user manual).
RINS119-5
Vocaliser
1 2 3 4 FLT ACK 12V 0V +BAT- SPK M- M+ MIC T
Vocaliser
12V 0V +BAT- SPK M- M+ MIC T
1 2 3 4 FLT ACK
Speaker
(16 ohm)
VOCALISER INSTALLATION MANUAL
T A1 B1 A B
T A1 B1 A B
Not Supplied
Page: 7
