VOCALISER INSTALLATION MANUAL
This manual describes how the Vocaliser is connected to a control panel, how to change the
polarities of both inputs and outputs, NVM reset information and other set up functions.
The Vocaliser provides a means of relaying appropriate speech messages to a set of telephone
numbers on specific alarm activations which correspond to the four inputs on the printed circuit
board.

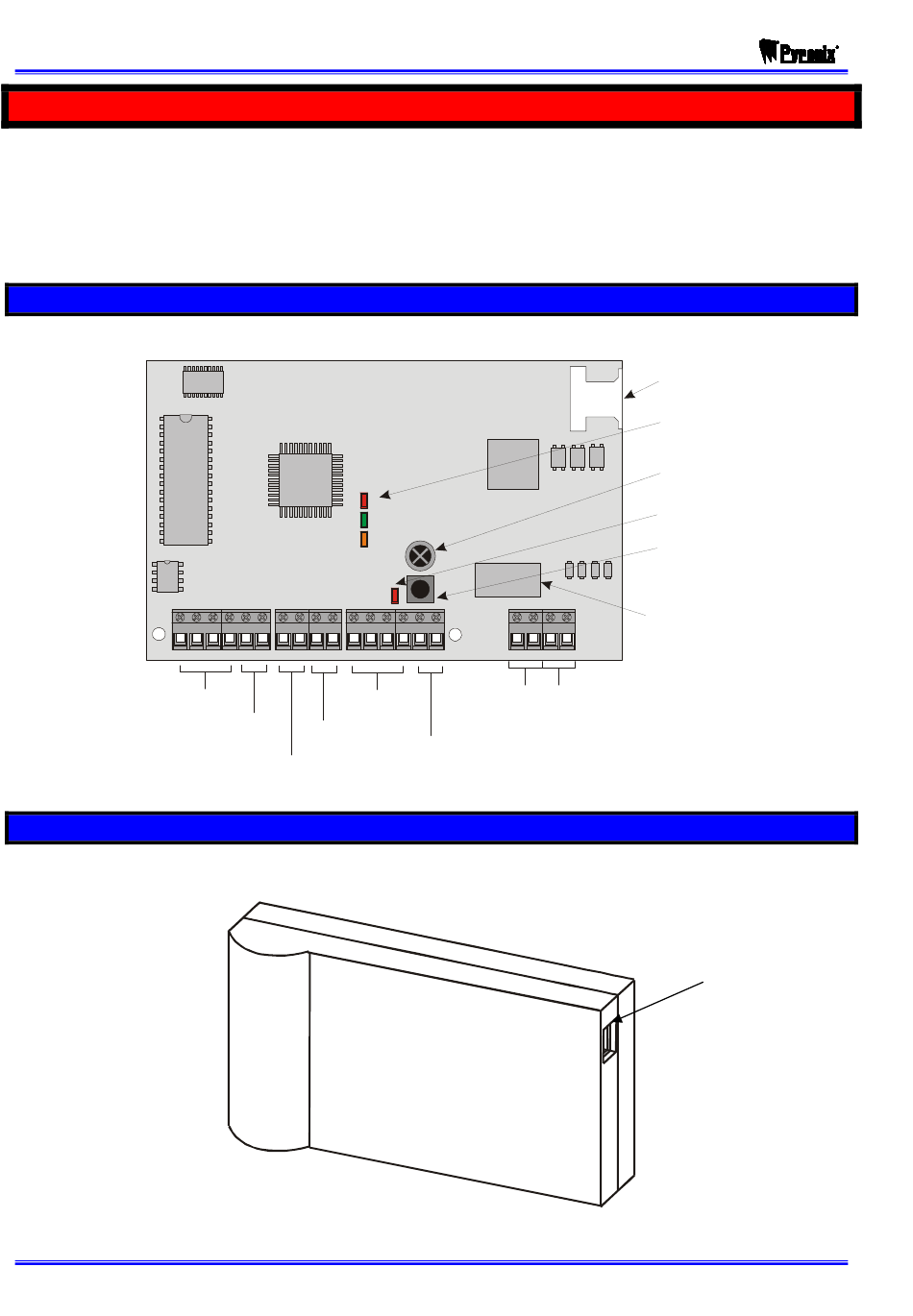

1 . 1 T h e V o c a l i s e r P C B
NVM
1
Inputs
1 . 2 T h e V o c a l i s e r C a s i n g
Page: 2
C H A P T E R 1 : I N T R O D U C T I O N
Dimensions: 85 x 145 x 15mm
12V 0V +BAT- SPK M- M+ MIC T
2 3 4 FLT ACK
Speaker/
Microphone
Outputs
Inputs
Battery
Inputs
Auxillary
Outputs
Dimensions: 104 x 185 x 36mm
T A1 B1 A B
To other To Telephone
telephone Network
equipment
Tamper
Terminals
Local
Programming
Socket
Status
LEDs
Volume
Pot
Battery
LED
Tamper
Relay
(Optional)
Local
programming
socket
