Configuring an Audio Bridge Terminal

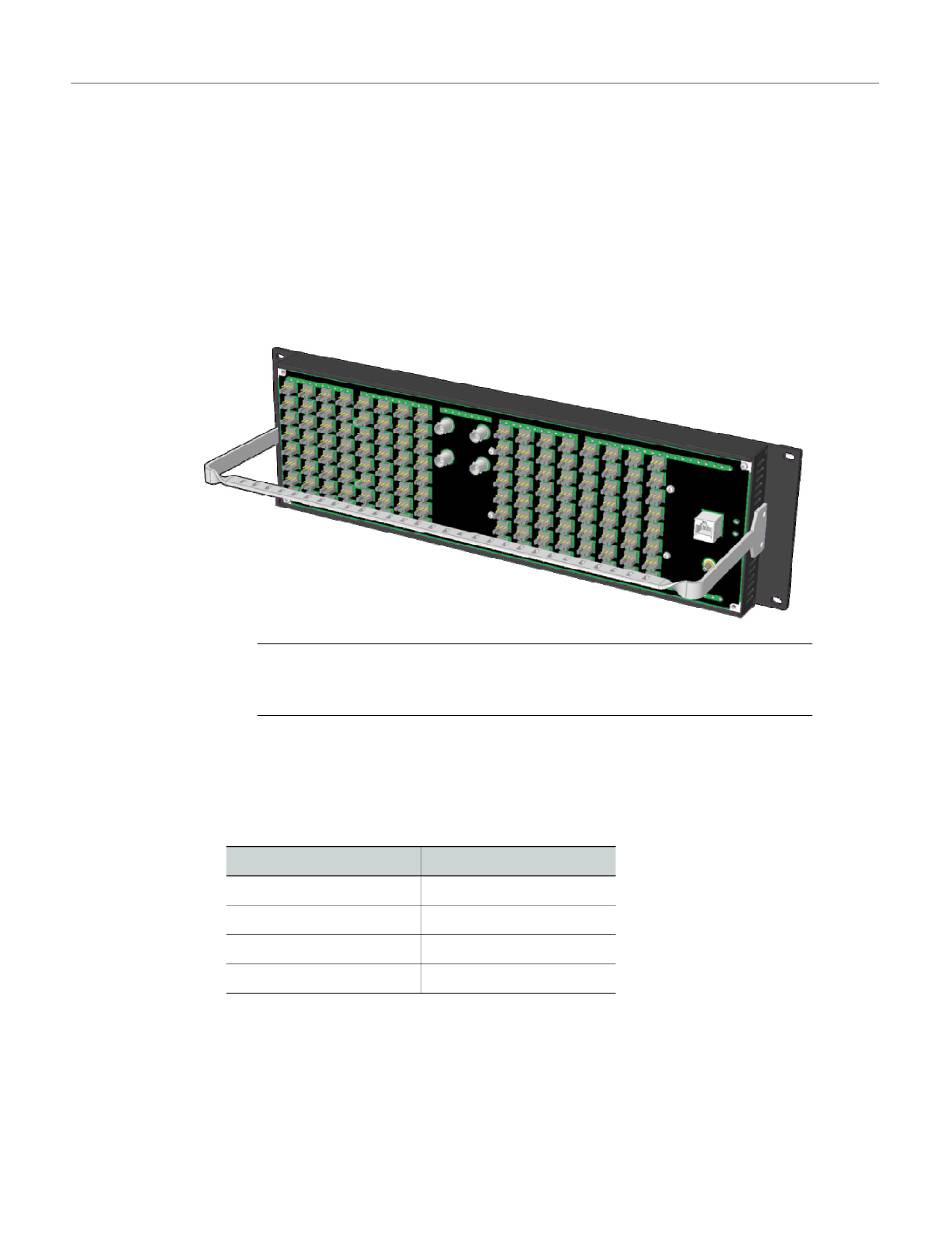

The optional Audio Bridge Terminal (ABT) is an external audio multiplexer/serializer for
Kaleido multiviewers. The Kaleido-X supports audio channel inputs from the ABT-64 or ABT-
128 series of Audio Bridge Terminal panels through up to two SDTI inputs. The ABT-64
supports 64 channels and the ABT-128 supports 128 channels.
The Audio Bridge Terminal (ABT) is an external audio multiplexer/serializer for Kaleido
multiviewers. The ABT provides connector space for audio signal inputs, and multiplexes all
the audio signals into combined serial feeds on coaxial cables that connect to the
multiviewer's input modules.
To configure the IP address and other network settings of the ABT
1 Connect a PC to a switch.
2 Referring to
page 146, configure the PC with the following network settings:
Property
DHCP
Static IP address
Subnet mask
Default gateway
3 Apply power to the Audio Bridge Terminal and make sure it is connected to the same
switch as the PC.
• If the switch is Power over Ethernet (PoE) enabled, simply connect it to the unit
• If not, PoE mid-span (inserter) equipment must be placed between the switch and
Note:
The ABT is powered through the RJ-45 Ethernet connector. There is
no power ON/OFF button, so the device is ON whenever a powered Ethernet
cable (PoE) is connected.
Configuring a Client PC to Configure an ABT's Network
Setting
Off
10.0.0.1
255.255.0.0
10.0.0.1
using an Ethernet cable.
the Audio Bridge Terminal.
