Belden grass valley MV-841 Series User Manual

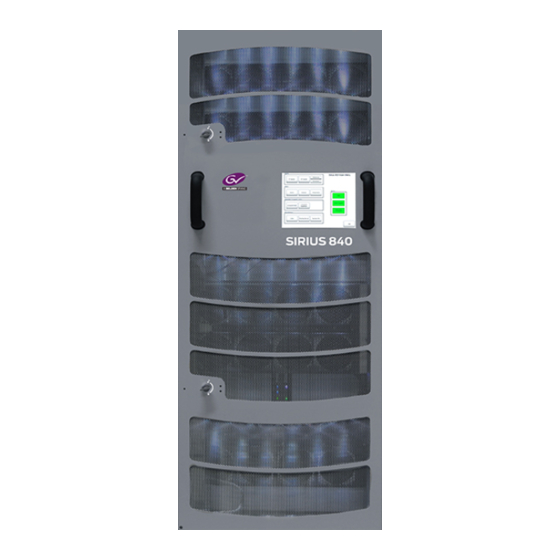

Integrated multiviewer for sirius 840/850 router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MV-841/851 INTEGRATED
MULTIVIEWER
FOR SIRIUS 840/850 ROUTER
User Manual
MV-851-UM
Issue 1 Revision 1
2020-May-27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the grass valley MV-841 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Belden grass valley MV-841 Series

Summary of Contents for Belden grass valley MV-841 Series

  • Page 1 MV-841/851 INTEGRATED MULTIVIEWER FOR SIRIUS 840/850 ROUTER User Manual MV-851-UM Issue 1 Revision 1 2020-May-27...

  • Page 2: Fcc Compliance

    Copyright and Trademark Notice Copyright © 2020, Grass Valley Canada. All rights reserved. Belden, Belden Sending All The Right Signals, and the Belden logo are trademarks or registered trademarks of Belden Inc. or its affiliated companies in the United States and other jurisdictions.

  • Page 3: About This Manual

    MV-841/851 Integrated Multiviewer User Manual About this Manual Thank you for purchasing your new MV-841/851 Integrated Multiviewer. This user manual describes how to install, configure and operate the MV-841/851 multiviewer in the Sirius 840 and 850 routers. Refer to the appropriate Sirius 800 Router Installation Manuals for details on how to unpack, install and test a Sirius 800 router.

  • Page 4: Important Safety Information

    Notices Important Safety Information This section provides important safety guidelines for operators and service personnel. Specific warnings and cautions appear throughout the manual where they apply. Please read and follow this important information, especially those instructions related to the risk of electric shock or injury to persons.
  • Page 5 MV-841/851 Integrated Multiviewer User Manual The presence of this symbol in or on Grass Valley product means that it complies with all applicable European Union (CE) directives. The presence of this symbol in or on Grass Valley product means that it complies with safety of laser product applicable standards.
  • Page 6 Notices • Do not operate with suspected equipment failure. If you suspect product damage or equipment failure, have the equipment inspected by qualified service personnel. • To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
  • Page 7 MV-841/851 Integrated Multiviewer User Manual Mesures de sécurité et avis importants La présente section fournit des consignes de sécurité importantes pour les opérateurs et le personnel de service. Des avertissements ou mises en garde spécifiques figurent dans le manuel, dans les sections où ils s’appliquent. Prenez le temps de bien lire les consignes et assurez-vous de les respecter, en particulier celles qui sont destinées à...
  • Page 8 Notices Le marquage CE indique que l’appareil visé est conforme aux exigences essentielles des directives applicables de l’Union européenne en matière de sécurité électrique, de compatibilité électromagnétique et de conformité environnementale. Le symbole ci-contre sur un appareil Grass Valley ou à l’intérieur de l’appareil indique qu’il est conforme aux normes applicables en matière de sécurité...
  • Page 9 MV-841/851 Integrated Multiviewer User Manual • Les produits qui n'ont pas d’interrupteur marche-arrêt et qui disposent d’une source d’alimentation externe doivent être installés à proximité d'une prise de courant facile d’accès. • Si l’équipement n’est pas pourvu d’un modules d’alimentation auto-adaptables, vérifiez la configuration de chacun des modules d'alimentation avant de les mettre sous tension.
  • Page 10 Notices Précautions pour les écrans LCD et TFT Regarder l’écran pendant une trop longue période de temps peut nuire à votre vision. Prenez une pause de 10 minutes, après 30 minutes d’utilisation. Si l'écran LCD ou TFT est brisé, manipulez les fragments de verre avec précaution au moment de vous en débarrasser.
  • Page 11 MV-841/851 Integrated Multiviewer User Manual Environmental Information European (CE) WEEE directive. This symbol on the product(s) means that at the end of life disposal it should not be mixed with general waste. Visit www.grassvalley.com for recycling information. Grass Valley believes this environmental information to be correct but cannot guarantee its completeness or accuracy since it is based on data received from sources outside our company.

  • Page 12: Further Safety Information

    Notices Further Safety Information Lithium Batteries Battery Warning Your Grass Valley equipment usually comes with at least one button battery located on the main printed circuit board. The batteries are used for backup and should not need to be replaced during the lifetime of the equipment.
  • Page 13 MV-841/851 Integrated Multiviewer User Manual Laser Safety Laser Safety - Fiber Output SFP and QSFP Modules Warning LASER SAFETY The average optical output power does not exceed 0 dBm (1mW) under normal operating conditions. Unused optical outputs should be covered to prevent direct exposure to the laser beam.

  • Page 14: Safety And Emc Standards

    Notices Safety and EMC Standards This equipment complies with the following standards: Safety Standards Information Technology Equipment - Safety Part 1 EN60950-1: 2006 Safety of Information Technology Equipment Including Electrical Business Equipment. UL1419 (4 Edition) Standard for Safety – Professional Video and Audio equipment (UL file number E193966) EMC Standards This unit conforms to the following standards: EN55032:2015 (Class A)
  • Page 15 SFP+ type ports; and fit 75 Ώ RF terminators to BNC type ports COAXIAL CABLES Coaxial cables connections (particularly serial digital video connections) shall be made with high-quality double-screened coaxial cables such as Belden 8281 or BBC type PSF1/2M and Belden 1694A (for 3Gbps). D-TYPE CONNECTORS D-type connectors shall have metal shells making good RF contact with the cable screen.
  • Page 16 Notices...

  • Page 17: Table Of Contents

    Table of Contents FCC Compliance ..............ii Patent Information .
  • Page 18 Table of Contents Connectors..............22 Rear Panel LEDs .

  • Page 19: Product Overview

    2-off Sirius 840/850 (expandable) standard video output modules (48 outputs). • 1-off powerful, 48-input ‘MV-8 Series’ Multiviewer. MV-841/851 Integrated Multiviewer = 2 x 24 Expandable Video Outputs + Powerful 48-input Multiviewer Issue 1 Revision 1 Page 1 © 2020 Grass Valley, a Belden Brand...

  • Page 20: Benefits Of An Integrated Multiviewer

    Sirius 850 – select from the router’s 576 inputs, or view 48 outputs. 2x Sirius expansion 850 system – select from the router’s 1152 inputs  • or view 48 outputs. Issue 1 Revision 1 Page 2 © 2020 Grass Valley, a Belden Brand...
  • Page 21 (ideal for secondary monitoring applications). Input H.264 video IP streams, from one or more MV-8X0/8X1 modules, may be displayed on a PC monitor, showing live video, audio levels and alarms. Issue 1 Revision 1 Page 3 © 2020 Grass Valley, a Belden Brand...

  • Page 22: Mv-841/851 Components

    Note 1: MV-841 and MV-851 are actually identical hardware modules with different order codes: MV-841-MB is the same as MV-851-MB and MV-840-RP is the same as MV-850-RP. MV-841 and MV-851 are interchangeable. Issue 1 Revision 1 Page 4 © 2020 Grass Valley, a Belden Brand...

  • Page 23: Order Codes

    Multiviewer Fiber Dual Output SFP module (1310 nm, single mode). FC1-HDMI1 HDMI single output SFP module SFP Module (Ethernet): FGAEY 1GBE-SFP Ethernet 1GbE SFP. SFP Module (Blank): SFPBLANK SFP blanking plug (dust and EMC cover). Issue 1 Revision 1 Page 5 © 2020 Grass Valley, a Belden Brand...

  • Page 24: Mv-841/851 And Sirius Router Frame

    More than one MV-841/851 may be fitted into a Sirius 840 or Sirius 850 router. The MV-841/851 Integrated Multiviewer combines the functionality of: • 2-off Sirius 840/850 standard router video HD-BNC output cards (expandable) • 1-off Powerful 48-input multiviewer. Issue 1 Revision 1 Page 6 © 2020 Grass Valley, a Belden Brand...
  • Page 25  a) Sirius Router - Top Level Diagram.  b) Router Front Modules and Output Rear Panels. c) MV-841/851 Double-width Output Module (Front module + Rear panel). Issue 1 Revision 1 Page 7 © 2020 Grass Valley, a Belden Brand...

  • Page 26: Monitoring Signals With Mv-841/851 In Sirius 840/850

    In a Sirius 850 router expansion system, one or more MV-851 multiviewers can be fitted and the user can use the multiviewer to monitor the (larger, expanded) router, monitoring router outputs (destinations) and/or monitoring router inputs (sources) in any combination. Issue 1 Revision 1 Page 8 © 2020 Grass Valley, a Belden Brand...

  • Page 27: Functional

    2-off 1G Ethernet ports. For communications traffic and H.264 streaming out of multiviewer inputs. • LTC and GPIO. Figure 5 MV-841/851 Module Main Input and Output Signals Issue 1 Revision 1 Page 9 © 2020 Grass Valley, a Belden Brand...

  • Page 28: Functional Overview

    Design and management of the video wall is done with the GV Orbit tool (see the ‘MV- 8 Series Multiviewer’ user manual and the GV Orbit manuals). Issue 1 Revision 1 Page 10 © 2020 Grass Valley, a Belden Brand...

  • Page 29: Software And Firmware Compatibility Matrix

    Thus, an MV-841/851 is compatible with any version of Router Controller and Workbench tool. Multiviewer Terminology Note: For a glossary of multiviewer terminology, refer to the ‘MV-8 Series Multiviewer’ user manual. Issue 1 Revision 1 Page 11 © 2020 Grass Valley, a Belden Brand...

  • Page 30: Mv-841/851 Set Up

    Refer to the ‘MV-8 Series Multiviewer’ user manual for full details of the MV-841/851 module’s RollCall templates and configuration information. Issue 1 Revision 1 Page 12 © 2020 Grass Valley, a Belden Brand...

  • Page 31: Video Wall Design

    MV-841/851. Streaming is done over Ethernet interfaces 1 or 2. The license option can be added later to MV- 841/851 modules in the field. Issue 1 Revision 1 Page 13 © 2020 Grass Valley, a Belden Brand...

  • Page 32: Hardware Modules

    ......... . . 28 Issue 1 Revision 1 Page 14 © 2020 Grass Valley, a Belden Brand...

  • Page 33: Introduction

    Although there are different order codes for the integrated multiviewer module for a Sirius 840 router (MV-841-xx) and for a Sirius 850 router (MV-851-xx), the modules are actually identical and interchangeable. Issue 1 Revision 1 Page 15 © 2020 Grass Valley, a Belden Brand...

  • Page 34: Mv-841-Mb/Mv-851-Mb Multiviewer Front Module

    Daughter card Module’s Rear Panel mating connectors Front module Grey Metal Heat Plate assembly Module  ejector  lever Figure 8 MV-841/851 Multiviewer Front Module Issue 1 Revision 1 Page 16 © 2020 Grass Valley, a Belden Brand...

  • Page 35: Status Leds, Connectors And Switches

    For Grass Valley Engineering Use only Connectors for Grass Valley Engineering Use Only. Push button For Grass Valley Engineering Use Only. Figure 9 Front LEDs, Connectors and Switches Issue 1 Revision 1 Page 17 © 2020 Grass Valley, a Belden Brand...

  • Page 36: Status Leds

    Note 4: A communications error could be caused by a hardware failure or incorrect cable insertion.  Check the four RJ45 connections between the two router frames are fitted correctly. (See Sirius 800 User Manual, section 12, Expansion.) Issue 1 Revision 1 Page 18 © 2020 Grass Valley, a Belden Brand...

  • Page 37: Dip Switches

    There is a push button on the front edge of the board. This is for engineering use only. There are other connectors on the front edge of the module, see Figure 9. These are for Engineering use only and should not be used. Issue 1 Revision 1 Page 19 © 2020 Grass Valley, a Belden Brand...

  • Page 38: Mv-841/851 Multiviewer Rear Panel (Mv-840-Rp/Mv-850-Rp)

    Sirius 850 frame. (See Sirius User Manual, Section 12 for details about S850 router expansion.) The module can provide up to 12 multiviewer video display outputs, providing multiviewer video wall outputs. Issue 1 Revision 1 Page 20 © 2020 Grass Valley, a Belden Brand...
  • Page 39 (SFP Cages for Ethernet SFPs) e in f in Note: Silk screen “MV840/50”  (Rear used on MV-840/850 and on MV-841/851) Figure 11 MV-841/851 Multiviewer Rear Panel Rear Connectors Issue 1 Revision 1 Page 21 © 2020 Grass Valley, a Belden Brand...

  • Page 40: Connectors

    27 for pin-out details. 1G Ethernet Ports 1 and 2 2-off 1 Gbps, SFP+ Ethernet sockets, RJ45 Note 1: SFP blanking plugs must be fitted if no SFP is present. Issue 1 Revision 1 Page 22 © 2020 Grass Valley, a Belden Brand...

  • Page 41: Rear Panel Leds

    Ethernet Ports  Figure 12 MV-841/851 Rear Panel LEDs:  a) Router Video Outputs and Catsii LEDs.  b) Multiviewer Video Display Outputs. c) Ethernet Ports. Issue 1 Revision 1 Page 23 © 2020 Grass Valley, a Belden Brand...

  • Page 42: Router Video Outputs - Catsii Leds

    Valid 720p HD signal Blue Valid 3G signal Connector Identification mode: Yellow Indicates row or column of connector to be identified. Flashing Red/Yellow Connector to be identified. Issue 1 Revision 1 Page 24 © 2020 Grass Valley, a Belden Brand...

  • Page 43: Multiviewer Head Video Display Output Leds

    Internal FPGAs fail to load during unit boot. Note: A unit upgrade to the same version may be carried out to recover a unit if FPGA upgrading was unsuccessful. Otherwise, contact Grass Valley support. Issue 1 Revision 1 Page 25 © 2020 Grass Valley, a Belden Brand...

  • Page 44: Ethernet Outputs

    Female high density 26 way 'D' type connector assignments Screw Terminal Figure 13 LTC and GPIO Connector, 10-way Screw Terminal Table 10 gives the pin assignments for the LTC and GPIO connector. Issue 1 Revision 1 Page 26 © 2020 Grass Valley, a Belden Brand...
  • Page 45 • Can be driven by input voltages of up to +5 V. • A logic “low” input is represented by an input voltage below +0.8 V. Issue 1 Revision 1 Page 27 © 2020 Grass Valley, a Belden Brand...

  • Page 46: Example: Driving Leds From The Gpi Outputs

    LED 4 Terminal 4 GPI Out 4 Figure 14 Connecting LEDs to GPI Outputs CAUTION Electrostatic Damage Static precautions must be observed when inserting and removing cards. Issue 1 Revision 1 Page 28 © 2020 Grass Valley, a Belden Brand...

  • Page 47: Hardware Installation

    This section describes the installation of an MV-841/851 Multiviewer hardware module into a  Sirius 840/850 router. Hardware installation can be carried out while the Sirius router is operating, without impacting the main routing function. Issue 1 Revision 1 Page 29 © 2020 Grass Valley, a Belden Brand...

  • Page 48: Introduction

    MV-841/851 Multiviewer.  (Grass Valley manuals may be downloaded from http://www.grassvalley.com/products/ Issue 1 Revision 1 Page 30 © 2020 Grass Valley, a Belden Brand...

  • Page 49: Hardware Installation Steps

    The Sirius 800 router controller software version installed on the router must support the MV-841/851 Multiviewer. Upgrading the Sirius 800 router controller software, if required, can be carried out either before or after the MV-841/851 hardware installation. Issue 1 Revision 1 Page 31 © 2020 Grass Valley, a Belden Brand...

  • Page 50: Initial Checks And Actions

    The MV-841/851 Multiviewer performs the function of two router output modules.  The host router’s configuration must be set up for a MV-841/851 Multiviewer with two output slots of module type: “Digital Output Video Variant 2” Issue 1 Revision 1 Page 32 © 2020 Grass Valley, a Belden Brand...

  • Page 51: Fitting Of Video Sfps To Mv-841/851 Rear Panel

    Before inserting the SFP modules, take notice of the required SFP orientation for fitting into the SFP cages of the MV-841/851 Rear Panel, as shown in Figure 17. Issue 1 Revision 1 Page 33 © 2020 Grass Valley, a Belden Brand...
  • Page 52 SFP module removal, if required, is achieved by operating a small lever or lever-bar on the SFP module before sliding the SFP video module out of its cage. Issue 1 Revision 1 Page 34 © 2020 Grass Valley, a Belden Brand...

  • Page 53: Identifying Modules And Slots In Router

    Sirius 830. Lower section of vertical Sirius 840 See Figure 19 Output Module slots Lower section of vertical Sirius 850 See Figure 19 Output Module slots Issue 1 Revision 1 Page 35 © 2020 Grass Valley, a Belden Brand...
  • Page 54 Figure 19 Sirius 800: Lower section of Sirius 840 and Sirius 850 router frame for MV-841/851 installation: a) Front Lower Fan Doors; and b) Rear Panel section. Issue 1 Revision 1 Page 36 © 2020 Grass Valley, a Belden Brand...
  • Page 55 Note: The MV-841/851 is a double-width module, occupying a pair of front and corresponding rear slots. Note: The MV-841/851 can occupy any pair of adjacent output module slots in the router. Issue 1 Revision 1 Page 37 © 2020 Grass Valley, a Belden Brand...
  • Page 56 Hardware Installation Front view of Slots Sirius 840 Output Slots Front 3D view of Slots Figure 20 Sirius 840 - Relevant Module Slot Positions for MV-841/851 module(s) Issue 1 Revision 1 Page 38 © 2020 Grass Valley, a Belden Brand...
  • Page 57 Hardware Installation Front view of Slots Sirius 850 Output Slots Front 3D view of Slots Figure 21 Sirius 850 - Relevant Module Slot Positions for MV-841/851 module(s) Issue 1 Revision 1 Page 39 © 2020 Grass Valley, a Belden Brand...
  • Page 58 Slot Numbering from the rear (Right to Left): 11 10 9  Figure 22 Sirius 840/850 Module Slot Positions for MV-841/851 module(s), a) Front View, and b) Rear View. Issue 1 Revision 1 Page 40 © 2020 Grass Valley, a Belden Brand...
  • Page 59 MV-841/851 installation. • Location for insertion of MV-841/851 modules. Table 12 can be used as a reference sheet for the front and rear of the Sirius router frame. Issue 1 Revision 1 Page 41 © 2020 Grass Valley, a Belden Brand...
  • Page 60 Fitted Modules Fitted Modules SLOT SLOT SLOT Slot Pair(s) Slot Pair(s) MV-841/851 MV-841/851 SLOT Fitted Modules SLOT Fitted Modules SLOT Slot Pair(s) Slot Pair(s) Front Modules Rear Modules Issue 1 Revision 1 Page 42 © 2020 Grass Valley, a Belden Brand...

  • Page 61: Removal And Then Fitting Of Modules

    Fit the MV-841/851 Rear Panel(s) before fitting the front MV-841/851 Main Module(s). These instructions are deliberately written in two stages: Removal. (See Module(s) Removal Procedure on page 44) Then fitting. (See Fitting Preliminaries on page 46) Issue 1 Revision 1 Page 43 © 2020 Grass Valley, a Belden Brand...

  • Page 62: Module(S) Removal Procedure

    Table 12 on page 42 indicates which modules need to be removed. Disconnect all cables connected to rear panel connectors on rear slots that need to be emptied. Issue 1 Revision 1 Page 44 © 2020 Grass Valley, a Belden Brand...
  • Page 63 All relevant slots should now be empty, both front and rear, ready for fitting one or more MV-841/851 modules. 10. Continue immediately to read Section “Fitting Preliminaries” on page 46 before starting Section “Module Fitting Procedure” on page 47. Issue 1 Revision 1 Page 45 © 2020 Grass Valley, a Belden Brand...

  • Page 64: Fitting Preliminaries

    Fasten the two module securing screws at the far left and far right of the module’s rear plate. Gently tighten the fixing screws. Do not over-tighten them. Issue 1 Revision 1 Page 46 © 2020 Grass Valley, a Belden Brand...

  • Page 65: Module Fitting Procedure

    Insert an MV-841/851 Rear Panel module into the rear slot pair.  Repeat for each further rear panel module being fitted.  Check the orientation of the rear module, see Figure 24. Issue 1 Revision 1 Page 47 © 2020 Grass Valley, a Belden Brand...
  • Page 66 Gently tighten the fixing screws. Do not over-tighten them. Note: The risk of non-compliance and overheating is with the user if blanking plates are not fitted in unused rear slots. Issue 1 Revision 1 Page 48 © 2020 Grass Valley, a Belden Brand...
  • Page 67 42 for MV-841/851 module fitting locations. ant fan door (refer to Figure 19). Insert a MV-841/851 Front Module into each front slot pair. Insert Figure 26 Inserting a Front Module with Levers Issue 1 Revision 1 Page 49 © 2020 Grass Valley, a Belden Brand...

  • Page 68: Connecting Cables

    This means the MV-841/851 can still appear to be operating normally, i.e. with all Ethernet ports connected, even with one or more uncon- nected network ports. There is a MV-841/851 performance penalty for operating in this way. Issue 1 Revision 1 Page 50 © 2020 Grass Valley, a Belden Brand...
  • Page 69 11 & 12 GPIO and LTC screw terminals Expansion Video Inputs 1-8, 9-16, 17-24; 25-32, 33-40, 41-48 (8-way DensiShield) 1G Ethernet Ports Figure 27 MV-841/851 Multiviewer Rear Panel Connections Issue 1 Revision 1 Page 51 © 2020 Grass Valley, a Belden Brand...

  • Page 70: Mv-841/851 Module Booting

    Note: Use the ‘1G1’ network interface when performing the initial unit configuration with Grass Valley RollCall control panel. Note: The ‘Eng’ interface is a reserved internal IP network interface, do not use this interface. Issue 1 Revision 1 Page 52 © 2020 Grass Valley, a Belden Brand...

  • Page 71: Appendix A Specification

    32 mm (~ 1.3 in.) approx. Rear Panel (MV-840-RB/MV-850-RB) Dimensions Width 435 mm (~ 17.25 in.) approx. Depth 135 mm (~ 5.6 in.) approx. Height 32 mm (~ 1.3 in.) approx. Issue 1 Revision 1 Page 53 © 2020 Grass Valley, a Belden Brand...

  • Page 72: Inputs

    MV-841/851 module can pass ASI signals.  The presence of ASI on these signals is reported to the router controller. The MV-841/851 Integrated Multiviewer fully supports this ASI router functionality. Issue 1 Revision 1 Page 54 © 2020 Grass Valley, a Belden Brand...
  • Page 73 Note: The H.264 streams do not function for the following slower-frame-rate HD standards: • 1080p30 (and slower frame rates); and • 720p30 (and slower frame rates). Applications include: confidence monitoring, compliance monitoring. Issue 1 Revision 1 Page 55 © 2020 Grass Valley, a Belden Brand...

  • Page 74: Tv Standards

    SD Video Standards 525 60 Hz/ (ITU-R BT.601-5, ANSI/SMPTE-259M(2)   59.94 Hz 4:3/16:9 50 Hz (ITU-R BT.601-5, ANSI/SMPTE-259M(2) 4:3/16:9 DVB ASI EN50083-9 DVB-ASI (router outputs only) Issue 1 Revision 1 Page 56 © 2020 Grass Valley, a Belden Brand...

  • Page 75: Gpi And Ltc

    Multiviewer v3.2.22 or later Note: For future releases: Please refer to Multiviewer, GV Orbit and RollCall Control Panel etc. software release notes for compatibility information. Issue 1 Revision 1 Page 57 © 2020 Grass Valley, a Belden Brand...
  • Page 76 MV-841/851 User Manual User Notes: Issue 1 Revision 1 Page 58 © 2020 Grass Valley, a Belden Brand...

  • Page 77: Contact Us

    An on-line form for e-mail contact is also available from the website. Corporate Head Office Grass Valley 3499 Douglas-B.-Floreani St-Laurent, Quebec H4S 2C6 Canada Telephone:+1 514 333 1772 Fax:+1 514 333 9828 www.grassvalley.com Issue 1 Revision 1 Page 59 © 2020 Grass Valley, a Belden Brand...
