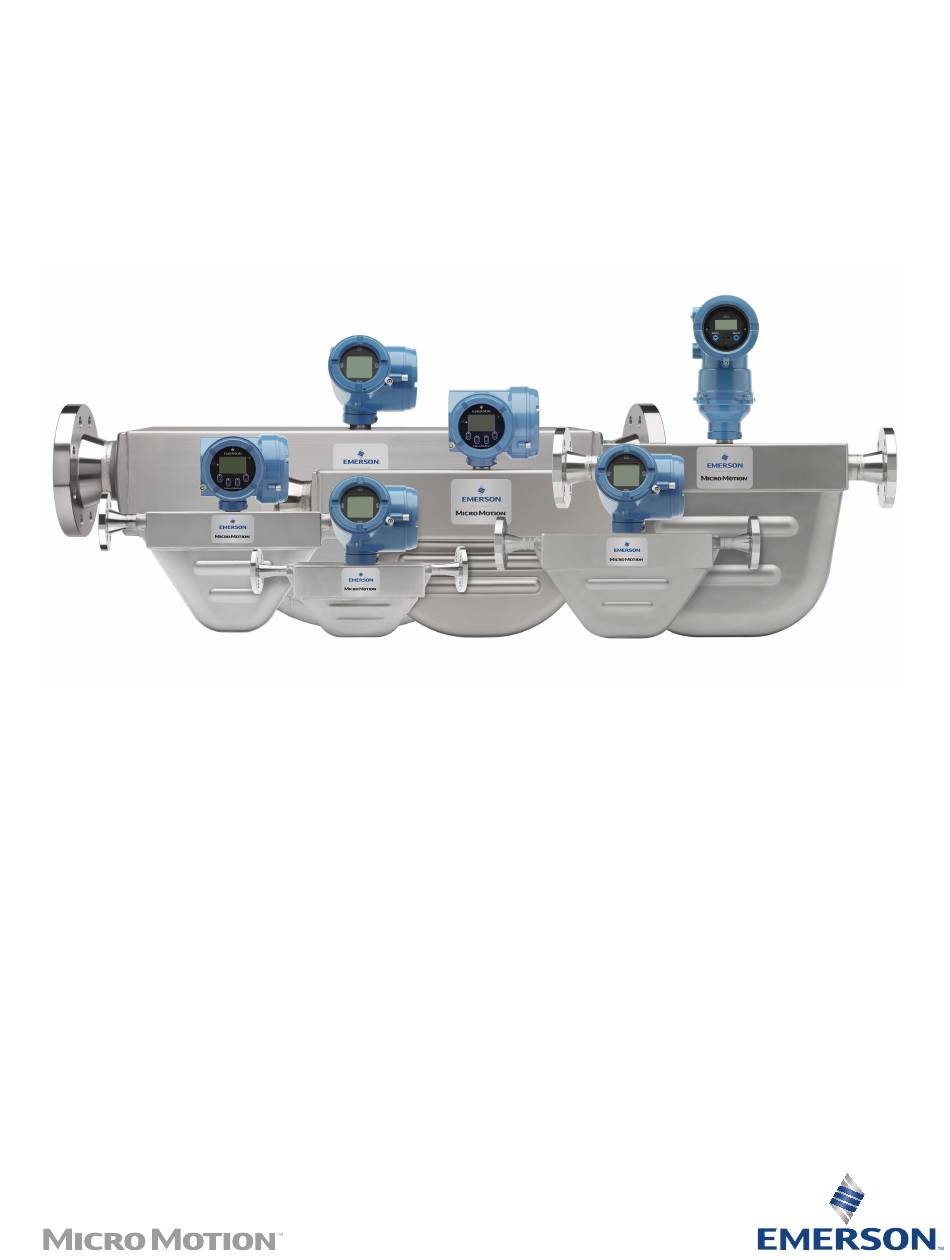

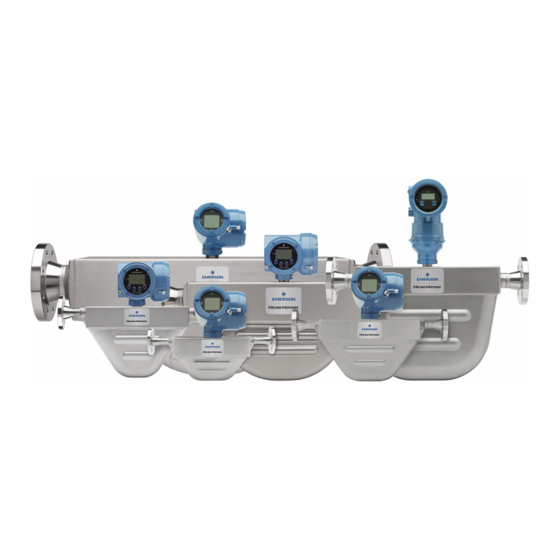

- Page 1 Installation Manual 20002298, Rev CH April 2020 ™ Micro Motion F-Series Coriolis Flow and Density Sensors...
- Page 2 Micro Motion employees. Micro Motion will not accept your returned equipment if you fail to follow Micro Motion procedures. Return procedures and forms are available on our web support site at www.emerson.com, or by phoning the Micro Motion Customer Service department.
-
Page 3: Table Of Contents
Installation Manual Contents 20002298 April 2020 Contents Chapter 1 Before you begin......................5 1.1 About this document........................5 1.2 Hazard messages......................... 5 1.3 Related documentation....................... 5 Chapter 2 Planning........................7 2.1 Installation checklist........................7 2.2 Best practices..........................8 2.3 Temperature limits........................8 Chapter 3 Mounting.........................11 3.1 Mount the sensor........................11... - Page 4 Contents Installation Manual April 2020 20002298 Micro Motion F-Series...
-
Page 5: Before You Begin
Related documentation You can find all product documentation on the product documentation DVD shipped with the product or at www.emerson.com. See any of the following documents for more information: • The hazardous area approvals documentation shipped with the sensor or available at www.emerson.com/flowmeasurement. - Page 6 Before you begin Installation Manual April 2020 20002298 • Micro Motion 9-Wire Flowmeter Cable Preparation and Installation Guide • The transmitter installation and configuration and use guides Micro Motion F-Series...
-
Page 7: Chapter 2 Planning
Installation Manual Planning 20002298 April 2020 Planning Installation checklist □ Make sure that the hazardous area specified on the approval tag is suitable for the environment in which the meter will be installed. WARNING Failure to abide by approvals can cause an explosion resulting in injury or death. □... -
Page 8: Best Practices
Planning Installation Manual April 2020 20002298 Table 2-3: Preferred sensor orientation Liquids Gases Slurries and self-draining applications □ Install the meter so that the flow direction arrow on the sensor case matches the actual forward flow of the process. (Flow direction is also software-selectable.) Best practices The following information can help you get the most from your sensor. - Page 9 • Temperature limits may be further restricted by hazardous area approvals. Refer to the hazardous area approvals documentation shipped with the sensor or at www.emerson.com/flowmeasurement. • The extended-mount electronics option allows the sensor case to be insulated without covering the transmitter, core processor, or junction box, but does not affect temperature ratings.
- Page 10 Planning Installation Manual April 2020 20002298 Micro Motion F-Series...
-
Page 11: Chapter 3 Mounting
Installation Manual Mounting 20002298 April 2020 Mounting Mount the sensor Use common practices to minimize torque and bending load on process connections. NOTICE • Lifting the sensor by the electronics or purge connections can damage the device. • To reduce the risk of collecting liquid in the electronics housing, do not orient transmitters or sensor junction boxes with their conduit openings pointing upward. - Page 12 Mounting Installation Manual April 2020 20002298 NOTICE Keep the extender and feedthrough clean and dry. Moisture or debris in the extender or feedthrough can damage electronics and result in measurement error or flowmeter failure. Procedure 1. Remove and recycle the plastic cap from the feedthrough on the sensor. Figure 3-1: Feedthrough and extender components A.
-
Page 13: Chapter 4 Wiring
Installation Manual Wiring 20002298 April 2020 Wiring Options for wiring The wiring procedure you follow depends on which electronics option you have. Table 4-1: Wiring procedures by electronics option Electronics option Wiring procedure Integral transmitter The transmitter is already connected to the sensor. No wiring is required between sensor and transmitter. -
Page 14: Connect 4-Wire Cable
Wiring Installation Manual April 2020 20002298 Connect 4-wire cable 4.2.1 4-wire cable types and usage Micro Motion offers two types of 4-wire cable: shielded and armored. Both types contain shield drain wires. The cable supplied by Micro Motion consists of one pair of red and black 18 AWG (0.823 mm²) wires for the VDC connection, and one pair of white and green 22 AWG (0.326 mm²) wires for the RS-485 connection. - Page 15 Installation Manual Wiring 20002298 April 2020 A. Gland body B. Gland nut 3. Terminate the RS-485 shield and drain wires to the housing internal grounding screw. 4. Assemble the gland according to vendor instructions. 4.2.4 Prepare a cable with Micro Motion-supplied cable glands Procedure 1.
- Page 16 Wiring Installation Manual April 2020 20002298 6. Wrap the drain wires twice around the shield and cut off the excess drain wires. A. Drain wires wrapped around shield 7. For foil (shielded cable) only: Note For braided (armored cable) skip this step and contine to the next step. Option Description a.
- Page 17 Installation Manual Wiring 20002298 April 2020 9. Install the gland body into the conduit opening on the core processor housing. 10. Insert the wires through the gland body and tighten the gland nut onto the gland body. A. Shield folded back B.
-
Page 18: Connect The 9-Wire Cable
Wiring Installation Manual April 2020 20002298 A. Terminal 1 (Power supply +): Red wire B. Terminal 2 (Power supply -): Black wire C. Terminal 3 (RS-485/A): White wire D. Terminal 4 (RS-485/B): Green wire 2. Reinstall the core processor cover. 3. -
Page 19: Chapter 5 Grounding
Installation Manual Grounding 20002298 April 2020 Grounding The meter must be grounded according to the standards that are applicable at the site. The customer is responsible for knowing and complying with all applicable standards. Prerequisites Use the following guides for grounding practices: •... - Page 20 Grounding Installation Manual April 2020 20002298 Micro Motion F-Series...
-
Page 21: Chapter 6 Supplementary Information
Installation Manual Supplementary information 20002298 April 2020 Supplementary information Purge the sensor case Prerequisites Make sure the following are available before beginning the purge procedure: ™ • Teflon tape • Argon or nitrogen gas sufficient to purge the sensor case Whenever a purge plug is removed from the sensor case, you must purge the case again. -
Page 22: Pressure Relief
Supplementary information Installation Manual April 2020 20002298 • If the purge gas is heavier than air (such as argon), locate the inlet lower than the outlet, so that the purge gas will displace air from bottom to top. • If the purge gas is lighter than air (such as nitrogen), locate the inlet higher than the outlet, so that the purge gas will displace air from top to bottom. - Page 23 Installation Manual Supplementary information 20002298 April 2020 WARNING • Orient the sensor so that personnel and equipment will not be exposed to any discharge along the pressure relief path. • Stay clear of the rupture disk pressure relief area. High-pressure fluid escaping from the sensor can cause severe injury or death.
