5.1.7 PCI Express™ (PCIe)

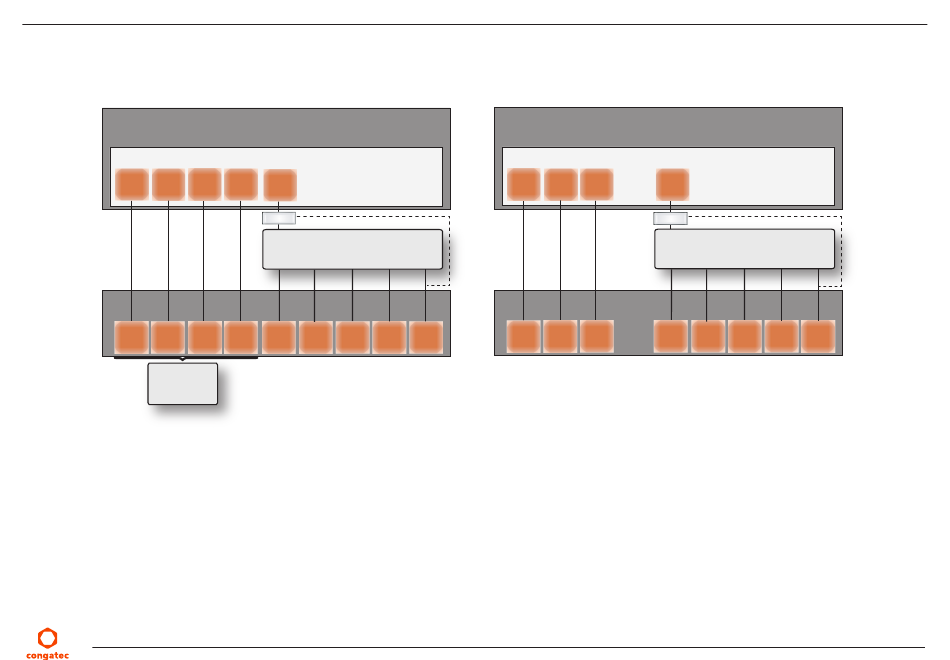

The conga-TR4 offers up to four PCIe Gen 3 ports (three in R-Series) and four PCIe Gen 2 ports as shown in the routing diagrams below:
Gen 3 Gen 3 Gen 3
Port 0
Port 1 Port 2
x1 x1
COM Express Connector
Gen 3 Gen 3
Gen 3
Port 0 Port 1 Port 2
PCIe Gen 3
x4/x2/x1
5.1.8

LVDS

The conga-TR4 offers signals for LVDS by default. Optionally, the conga-TR4 can offer signals for eDP instead. The eDP to LVDS bridge (NXP
PTN3460) on the module processes the incoming DisplayPort (DP) stream, converts the DP protocol to LVDS protocol and transmits the
processed stream in LVDS format.
The LVDS interface supports:
• Single or dual channel LVDS (color depths of 18 bpp or 24 bpp)
• VESA and JEIDA color mappings
• Resolution up to 1920x1200 @60 Hz in in dual LVDS bus mode (color depth 24 bpp)
Copyright © 2018 congatec AG
AMD SoC V-Series FP5
PCIe
Gen 3 Gen 3
Port 3 Port 4
Option
conga-TR4
PCIe Switch
x1 x1 x1 x1 x1
Gen 3 Gen 2 Gen 2 Gen 2
Gen 2
Port 3 Port 4 Port 5 Port 6 Port 7
Gen 3 Gen 3
Port 0 Port 1
x1 x1 x1 x1
Gen 3 Gen 3
GbE
Port 0 Port 1
TR44m17
AMD SoC R-Series FP5
PCIe
Gen 3 Gen 3
Port 5 Port 4
Option
conga-TR4
PCIe Switch
x1 x1 x1 x1
COM Express Connector
Gen 3 Gen 2 Gen 2 Gen 2
Port 2 Port 3 Port 4 Port 5
x1 x1
Gen 2 GbE
Port 6
