Summary of Contents for Berbel Firstline Unseen BEH 60 FLU

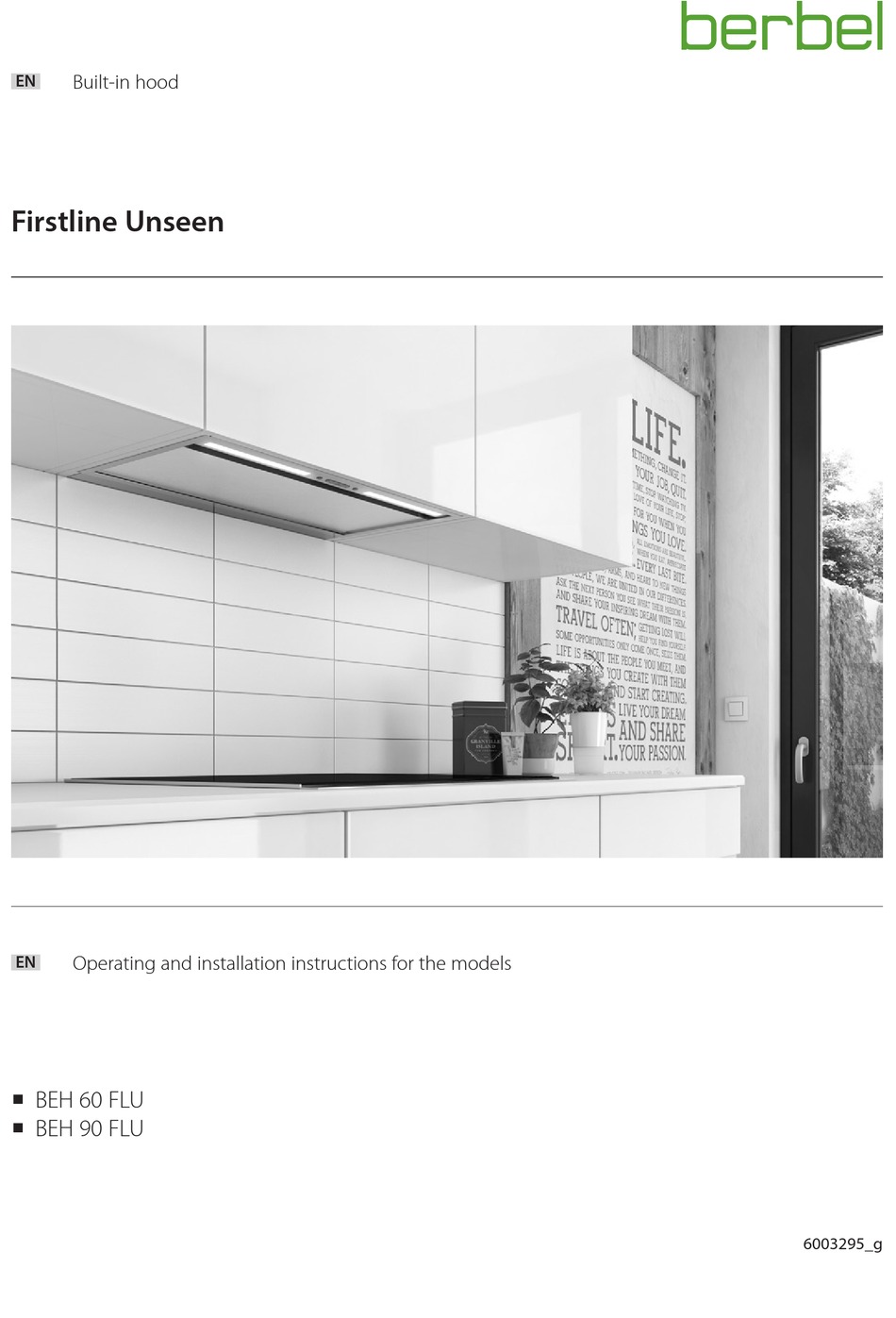

- Page 1 Built-in hood Firstline Unseen Operating and installation instructions for the models ƒ BEH 60 FLU ƒ BEH 90 FLU 6003295_g...
- Page 2 Document information Symbol clarification - text ☞ Handling requirement Operating and installation instructions for: y Built-in hood BEH 60 FLU E03 y Listing y Built-in hood BEH 90 FLU E03 D Reference to another point in this document Descriptions are identical for all models. Differences are noted separately.
-
Page 3: Table Of Contents
Table of contents Safety information ......4 Maintenance ....... . . 30 Proper intended use . -
Page 4: Safety Information
Safety information Safety information General safety instructions D WARNING! Proper intended use Hazard through a disregard of the operating and installation instructions! The device serves to extract cooking vapours. This manual contains important information for the safe The device is intended exclusively for private domestic use. handling of the device. -
Page 5: Product Information
Product information Product information Operating modes The device is suitable for the following operating modes: y Recirculated air mode Functional principle y Extracted air mode 2.2.1 Recirculated air mode The filter filling in the recirculated air filter neutralises any smelly odours present. The odour-free, cleaned room air is fed back into the room. -
Page 6: Product Overview
Product information Product overview Scope of delivery A Hood body B Mounting aid frame (optional, only BEH 90 FLU) C Fastening brackets D Hob lighting E Upper section with bulging edge (removable) F Capillar Trap (removable) G Lower section (removable) H Ratings plate (in the air induction shaft) Control panel A Hood body... - Page 7 Product information Further accessories may be required depending on the Installation frame - for installation without a cabinet (e.g. with equipment, installation situation or operating mode. suspended systems): Recirculated air filter permalyt BUR 125 – as an expansion for permanent odour absorption: A Recirculated air filter permalyt B Retaining bracket Mounting aid frame (only BEH 90 FLU) –...
-
Page 8: Installation Variants And Installation Dimensions
Product information Installation variants and installation dimensions 2.5.1 Installation with recirculated air mode The device is suitable for two installation variants: y Installation in wall cabinets without cabinet base y Installation in the installation frame (optional) ≤ 1 2 0 Dimensions for installation in wall cabinets: y Width min. -
Page 9: Exhaust Air Backwards
Product information 2.5.3 Installation with extracted air mode - Technical data exhaust air backwards Connection voltage 230 V / 50 Hz 230 V / 50 Hz Total power 178 W 182 W Fan power consumption 170 W 170 W ≥ Ø 135 LED 7.5 W, LED 12 W, Lighting... -
Page 10: Installation
Installation Installation Requirements for the installation location D WARNING! Safety instructions for installation Risk of death due to improper installation! Disregard of the ambient conditions can lead to hazardous situations, e.g. in the handling of electrical power or gas. D WARNING! ☞... -
Page 11: Requirements For Individual Operating Modes
Installation Requirements for individual operating modes Requirements for the exhaust air ducting (only for extracted air mode) Further accessories may be required depending on the operating mode. D WARNING! Fire hazard and asphyxiation hazard due to improper 3.3.1 Requirements for recirculated air mode installation! When using the exhaust air ducting with other devices y Recirculated air filter at the fan outlet. -
Page 12: Installation Procedure
Installation Installation procedure If accessories (e.g. wall box, window contact switch) are required for the installation: Short overview: Observe the instructions for the accessories. 1. Preparation for installation ☞ Ensure that the accessories are correctly installed and 2. Unpack the device ready for connection. -
Page 13: Edge And Capillar Trap
Installation 3.5.3 Removing the lower section, bulging edge and The bulging edge is attached and held in the device by Capillar Trap magnets. D ATTENTION! Danger of property damage through falling parts! When working on the device, parts of the device or tools could fall and damage the kitchen equipment. -
Page 14: Install The Device
Installation 3.5.4 Install the device Installation without mounting aid frames With the following versions, the fastening brackets are Installation in wall cabinets without a cabinet base is mounted directly on the cabinet: described in the following. y BEH 60 FLU With installation in the installation frame (e.g. - Page 15 Installation Installation with mounting aid frames (optional) With the following versions, the fastening brackets are mounted on the mounting aid frames: y BEH 90 FLU – with installation in cabinets without centre walls < 120 Cabinet depth 311 - 350 mm <...
-
Page 16: Installation In The Installation Frame
Installation With variants for the extracted air mode: In order to ease installation, the following parts can be fitted on the hood body before the hood body is installed. ☞ Fasten the mounting aid frames to the cabinet (chipboard screws PZ2 4.5 x 16 mm). A 90-degree elbow B Adapter ring C Metal adapter... - Page 17 Installation D WARNING! Risk of injury due to the cabinet detaching from the wall! The net weight of the hood body and the momentum when pushed up may cause the cabinet to be lifted and fall from the wall. ☞ Make sure the cabinet is secured against lifting. D ATTENTION! Danger of property damage through improper handling! Hanging the device requires a great deal of physical exertion...
- Page 18 Installation The angle trim strip closes the gap between the hood body Cabinet depth 300 - 310 mm and the wall. If necessary, align the dimensions of the angle The height of the angle trim strip corresponds with the trim strip with the installation situation. cabinet depth minus 286 mm.
-
Page 19: (Optional)
Installation 3.5.5 Installation in the installation frame (optional) If the device is not installed directly in a cabinet (e.g. with suspended systems), the installation frame must be used. ≤ 40 ☞ Screw the fastening brackets onto the installation frame (metal screws PZ2 3.5 x 6.5 mm). 560 (+5) BEH 60 FLU 860 (+5) BEH 90 FLU ☞... -
Page 20: Connect Accessories
Installation 3.5.6 Connect accessories Connection is implemented via cable terminals on a detachable connector on the fan housing. Depending on the installation situation, accessories may be connected to the hood: D ATTENTION! y Wall box y Recirculated air filter permalyt Risk of damage through incorrect connection! y Window contact switch A mix-up of the control wires can result in damage to the... -
Page 21: Install Filter (With Recirculated Air Mode)
Installation 3.5.7 Install filter (with recirculated air mode) 3.5.8 Connect exhaust air ducting (with extracted air mode) Installation of the filter takes place adjacent to the fan housing, on top of the hood body. The filter can be When connecting the exhaust air ducting it is possible to fit positioned precisely. - Page 22 Installation ☞ If necessary, place the 90-degree elbow on the plastic ☞ Place the 90-degree elbow on the plastic fitting in the fitting. retaining bracket. ☞ Insert the adapter ring in the 90-degree elbow from above. ☞ Fit the exhaust air ducting on the 90-degree elbow. ☞...
-
Page 23: Insert The Capillar Trap, Bulging Edge And Lower Section
Installation 3.5.9 Insert the Capillar Trap, bulging edge and lower section After the installation, the parts lying inside should be re-fitted. ☞ Insert the Capillar Trap into the mounting slot in a bow movement with both hands. ☞ Push the Capillar Trap upwards until it latches into place. ☞... -
Page 24: 3.5.10 Establish Electrical Power Supply
Installation 3.5.10 Establish electrical power supply 3.5.11 Check and carry out commissioning ☞ Observe the voltage specifications on the rating plate. D ATTENTION! Risk of disruptions due to moisture in the device! If the device is moved from a cold environment into a hot one, condensation may form inside. -
Page 25: Operation
Operation Operation Measures to ensure a sufficient supply of fresh air: ☞ Open the windows. ☞ Open the doors. ☞ Ensure that the window contact switch and the wall box Safety information for operation are installed and ready for operation. ☞... -
Page 26: Normal Operation
Operation 4.2.1 Normal operation Button Function D WARNING The device is turned off. ☞ Press button 1x. Fire hazard due to grease residue! The device switches on with power level 1. In operation grease residue, which is highly inflammable, collects in and on the device. The device is turned off. -
Page 27: Run-On Function
Operation 4.2.2 Run-on function 4.2.3 Hob lighting The device comes with a run-on function. When the function The hob lighting is fitted with energy-saving LED lighting. is used, the device continues to work 10 minutes after being The lighting can be used at any time and independently of switched off. -
Page 28: Cleaning
Cleaning Cleaning Cleaning procedures The device draws in dirt particles (e.g. grease and oil particles) with the air from the room. The dirt particles are separated Safety information for cleaning and collected in the upper section, on the bulging edge, in the lower section and in the Capillar Trap. - Page 29 Cleaning Lower section The lower section is held in the device by two pins at the sides. ☞ Pull the bulging edge from the upper section. ☞ Clean the upper section with a soft, moist cloth. ☞ Clean the bulging edge, such as in a dishwasher. ☞...
-
Page 30: Maintenance
Maintenance Maintenance 6.2.2 Replacing filter filling (with recirculated air mode) Odours are trapped in the filter filling in the recirculated air Safety instructions for maintenance filter. The odour-free, cleaned room air is fed back into the room. D WARNING! Recirculated air filters are maintenance-free for up to two Hazard through a disregard of the maintenance years. -
Page 31: Fault Rectification
Maintenance Fault rectification Moisture in the device. y Dripping or splashing water has penetrated the device. Possible faults are described below: y Liquid (e.g. from vases, bottles on the device) has Description of the fault. penetrated the device. y Possible cause. ☞... -
Page 32: Dismounting
Dismounting Dismounting If present: ☞ Unscrew the mounting aid frames. D WARNING! If present: Danger of injuries through improper handling! ☞ Remove the installation frame. Taking the device down requires a great deal of physical exertion due to its size and weight. If the device falls down, serious injuries are possible. -
Page 33: Disposal
Disposal Disposal Dispose of the device D ATTENTION! Dispose of packaging Risk of environmental damage due to improper disposal of the device! D ATTENTION! The device is subject to the European Directive 2012/19/EU and should not be disposed of with household waste. Risk of environmental damage due to improper disposal ☞... -
Page 34: Annex
EEI Hood Class BEH 60 FLU E03 FDE Hood 25.4 29.8 FDE Hood Class LE Hood 48.4 46.6 berbel BEH 60 FLU E03 LE Hood Class GFE Hood 87.3 89.5 GFE Hood Class Flow rate in extracted air mode in m³/h Stage min./max. -
Page 35: Contact
Annex Contact If you have any questions or suggestions, please select from the following options: Post: berbel Ablufttechnik GmbH Sandkampstraße 100 D-48432 Rheine Telephone: +49 (0) 5971 / 80 80 9 - 0 Mon to Thu 8:00 – 17:30 hrs and Fri 8:00 –... - Page 36 6003295_g 19.03.2019...
