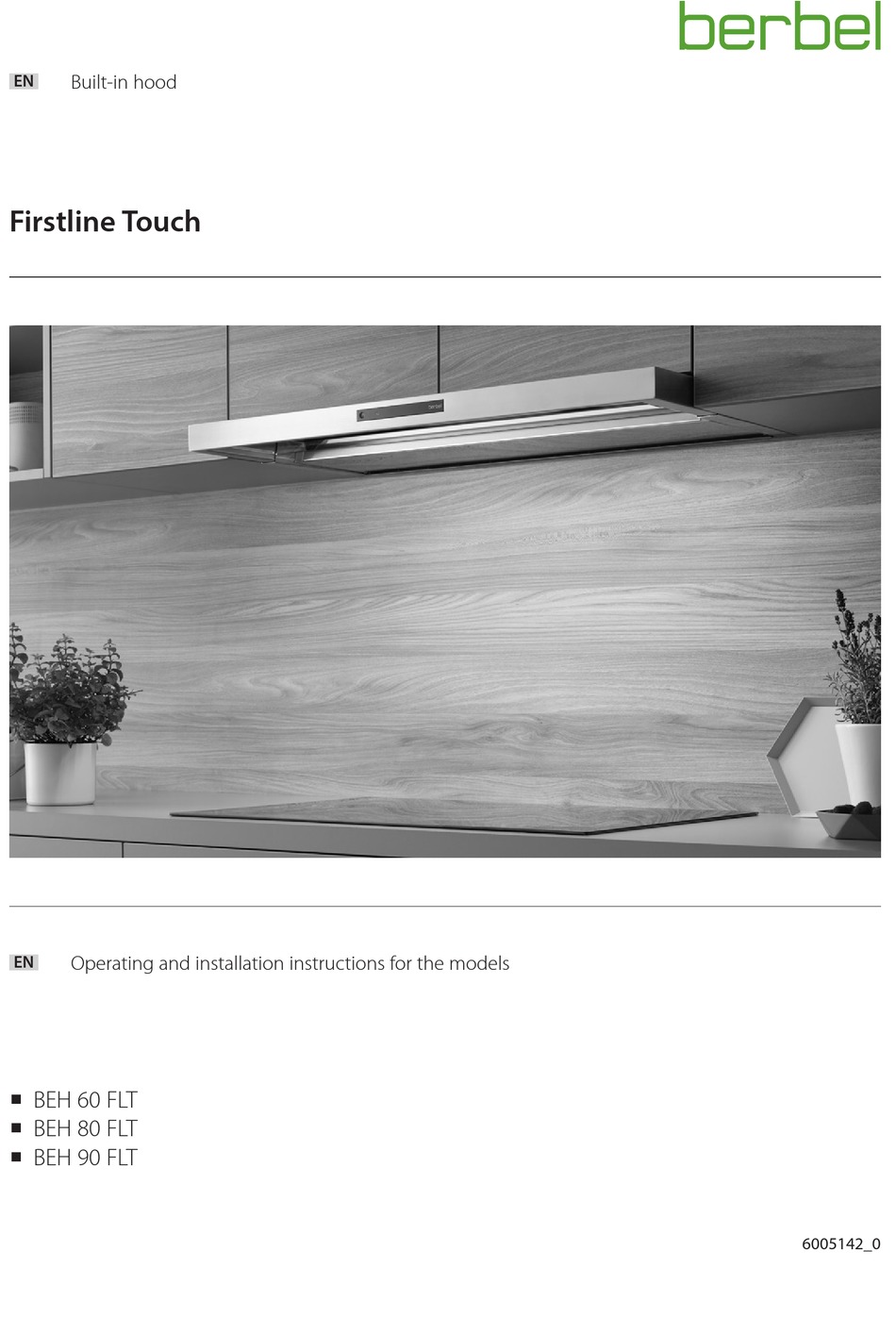

- Page 1 Built-in hood Firstline Touch Operating and installation instructions for the models ƒ BEH 60 FLT ƒ BEH 80 FLT ƒ BEH 90 FLT 6005142_0...
- Page 2 Document information Symbol clarification - text ☞ Handling requirement Operating and installation instructions for: y Built-in hood BEH 60 FLT E06 y Listing y Built-in hood BEH 80 FLT E06 y Built-in hood BEH 90 FLT E06 D Reference to another point in this document Descriptions are identical for all models.
-
Page 3: Table Of Contents
Table of contents Safety information ......4 Operation ........21 Proper intended use . -
Page 4: Safety Information
Safety information Safety information General safety instructions D WARNING! Proper intended use Hazard through a disregard of the operating and installation instructions! The device serves to extract cooking vapours. This manual contains important information for the safe The device is intended exclusively for private domestic use. handling of the device. -
Page 5: Product Information
Product information Product information Operating modes The device is suitable for the following operating modes: y Recirculated air mode Functional principle y Extracted air mode y Hybrid mode 2.2.1 Recirculated air mode The filter filling in the recirculated air filter neutralises any smelly odours present. -
Page 6: Product Overview
Product information Product overview Scope of delivery A Hood body A Hood body with extraction unit, cleaning unit and front B Mounting aid frame (optional, only BEH 80 FLT, panel BEH 90 FLT) B BackFlow port C Front panel (can be pulled out) C Mains cable with plug D Control panel D 8 chipboard screws, rounded head PZ2 4.5 x 16 mm... -
Page 7: Installation Variants And Installation Dimensions
Product information Installation variants and installation dimensions 2.5.2 Recirculated air mode with recirculated air filter permalyt BUR 125 Dimensions for installation in wall cabinets: y Width (inside cabinet) at least device width + 1 mm. y Depth (cabinet body) at least 300 mm. ≤... -
Page 8: Hybrid Mode - Exhaust Air Upwards
Product information 2.5.4 Hybrid mode – exhaust air upwards Technical data ≤ 2 0 0 ≥ 4 230 V / 230 V / 230 V / Connection voltage 50 Hz 50 Hz 50 Hz Total power 90 W 92 W 92 W Fan power consumption 85 W 85 W... -
Page 9: Installation
Installation Installation Requirements for the installation location D WARNING! Safety instructions for installation Risk of death due to improper installation! Disregard of the ambient conditions can lead to hazardous D WARNING! situations, e.g. in the handling of electrical power or gas. ☞... -
Page 10: Requirements For Individual Operating Modes
Installation Requirements for individual operating modes Requirements for the exhaust air ducting (only for extracted air mode or hybrid mode) Further accessories may be required depending on the operating mode. D WARNING! Fire hazard and asphyxiation hazard due to improper 3.3.1 Requirements for recirculated air mode installation! When using the exhaust air ducting with other devices y Recirculated air fan on the fan outlet. -
Page 11: Installation Procedure
Installation Installation procedure If accessories (e.g. wall box, window contact switch) are required for the installation: Short overview: Observe the instructions for the accessories. 1. Preparation for installation ☞ Ensure that the accessories are correctly installed and 2. Unpack the device ready for connection. -
Page 12: Removing The Lower Shell, Bulging Edge
Installation 3.5.3 Removing the lower shell, bulging edge and The bulging edge is attached and held in the device by capillary trap magnets. D ATTENTION! Danger of property damage through falling parts! When working on the device, parts of the device or tools could fall and damage the kitchen equipment. -
Page 13: Install The Device
Installation 3.5.4 Install the device The following points must be taken into account when attaching the fastening brackets: y Rear position flush with the rear edge of the cabinet. y Bottom position flush with the bottom edge of the cabinet. y If a niche back panel is used, it is necessary to consider the thickness of the niche back panel. - Page 14 Installation Installation without mounting aid frames Installation with mounting aid frames (optional) With the following versions, the fastening brackets are With the following explanations, the device is fastened on the mounted directly on the cabinet: mounting aid frames. The fastening brackets are no longer y BEH 60 FLT required: y BEH 80 FLT, BEH 90 FLT –...
- Page 15 Installation ☞ Fasten the mounting aid frames with the attached fastening brackets to the cabinet (chipboard screws, rounded head PZ2 4.5 x 16 mm). D WARNING! ☞ Lift the hood body. ☞ Guide the hood body on both sides into the retainers on Risk of injury due to the cabinet detaching from the wall! the fastening brackets.
- Page 16 Installation Installation without mounting aid frames The position of the front panel in retracted condition must be set to suit the depth of the kitchen cabinet. ☞ Secure the hood body by tightening the screws on the fastening bracket (screws M6 x12 mm with rounded head PZ3).
-
Page 17: Connect Accessories
Installation 3.5.5 Connect accessories Wall box y The wall box is closed when the control contacts are Depending on the installation situation, available accessories open. may be connected to the hood, e.g.: y The wall box is open when the control contacts are y Wall box closed. -
Page 18: Install Filter
Installation 3.5.7 Install filter (with recirculating or hybrid 3.5.8 Connect exhaust air ducting (with exhausted operation) air or hybrid operation) Installation of the filter takes place adjacent to the fan Extracted air mode without BackFlow technology housing, on top of the hood body. The filter can be The BackFlow port is not used. -
Page 19: Insert The Capillary Trap, Bulging Edge And Lower Shell
Installation Hybrid mode ☞ Place the bulging edge onto the upper shell. ☞ Check whether the bulging edge is correctly placed and held by the magnets. ☞ Fit the exhaust air ducting on the BackFlow port from above. All variants ☞... -
Page 20: 3.5.10 Establish Electrical Power Supply
Installation 3.5.11 Check and carry out commissioning D ATTENTION! Risk of disruptions due to moisture in the device! If the device is moved from a cold environment into a hot one, condensation may form inside. ☞ Wait about 2-3 hours before bringing the device into service. -
Page 21: Operation
Operation Operation Measures to ensure a sufficient supply of fresh air: ☞ Open the windows. ☞ Open the doors. ☞ Ensure that the window contact switch and the wall box Safety information for operation are installed and ready for operation. ☞... -
Page 22: Operating The Device
Operation Operating the device The intake area can be adapted by sliding the front panel in or out. Cooking vapours from the front of the hob are drawn The device is operated from the control panel. in better when the front trim is pulled out. The position of the control panel can be seen by the recess of the ON/OFF button at any time. -
Page 23: Normal Operation
Operation 4.2.1 Normal operation 4.2.2 Extraction mode / recirculated air mode changeover D WARNING If the device is configured for hybrid mode, it is possible to switch between extraction mode and recirculated air mode Fire hazard due to grease residue! at any time after activating the changeover function. -
Page 24: Window Contact Switch
Operation 4.2.4 Window contact switch 4.2.6 Run-on function If a window contact switch is connected to the device, this The device comes with a run-on function. When the function monitors whether the corresponding window is open or is used, the device continues to work 10 minutes after being closed. -
Page 25: Configuring The Device
Operation Configuring the device Button Function Automatic run-on. Button Function As delivered, the function is turned on. The device is turned on. ☞ Touch the button one time. ☞ Touch and hold 1x button for longer than Button glows brightly: 5 seconds until the configuration steps are Automatic run-on is activated. -
Page 26: Cleaning
Cleaning Cleaning Cleaning procedures The device draws in dirt particles (e.g. grease and oil particles) with the air from the room. The dirt particles are separated Safety information for cleaning and collected in the upper shell, on the bulging edge, in the lower shell and in the capillary trap. - Page 27 Cleaning Lower section The lower section is held in the device by two pins at the sides. ☞ Pull the bulging edge from the upper shell. ☞ Clean the upper section with a soft, moist cloth. ☞ Clean the bulging edge, such as in a dishwasher. ☞...
-
Page 28: Maintenance
Maintenance Maintenance Maintenance intervals y When the control indicator blinks - every 1000 fan operating hours. D “4.2.3 Filter filling indicator” (page 23). Safety instructions for maintenance y With odours in the exhaust air. y With daily use, after 24 months at the latest. D WARNING! y With occasional use, after 36 months at the latest. -
Page 29: Fault Rectification
Maintenance Fault rectification Control panel does not react after being touched several times. y The control panel is soiled. Possible faults are described below: ☞ Clean the control panel. Description of the fault. D “5. Cleaning” (page 26). y Possible cause. y The device software requires a restart. -
Page 30: Disassembly
Disassembly Disassembly D WARNING! Danger of injuries through improper handling! Taking the device down requires a great deal of physical exertion due to its size and weight. If the device falls down, serious injuries are possible. ☞ Two persons are required to take the device down. ☞... -
Page 31: Disposal
Disposal Disposal Dispose of the device D ATTENTION! Dispose of packaging Risk of environmental damage due to improper disposal of the device! D ATTENTION! The device is subject to the European Directive 2012/19/EU and should not be disposed of with household waste. Risk of environmental damage due to improper disposal ☞... -
Page 32: Annex
BEH 60 FLT E06 FDE Hood 28.3 30.1 30.1 FDE Hood Class LE Hood 43.4 56.2 42.6 LE Hood Class berbel BEH 60 FLT E06 GFE Hood 87.8 86.8 86.8 GFE Hood Class Flow rate in extracted air mode in m³/h 200/ 210/ 220/ Stage min. -
Page 33: Contact
Annex Contact If you have any questions or suggestions, please select from the following options: Post: berbel Ablufttechnik GmbH Sandkampstraße 100 D-48432 Rheine Telephone: +49 (0) 5971 / 80 80 9 - 0 Mon to Thu 8:00 – 17:30 hrs and Fri 8:00 –... - Page 34 6005142_0 – 24.02.2020...
- Page 35 6005142_0 – 24.02.2020...
