berbel

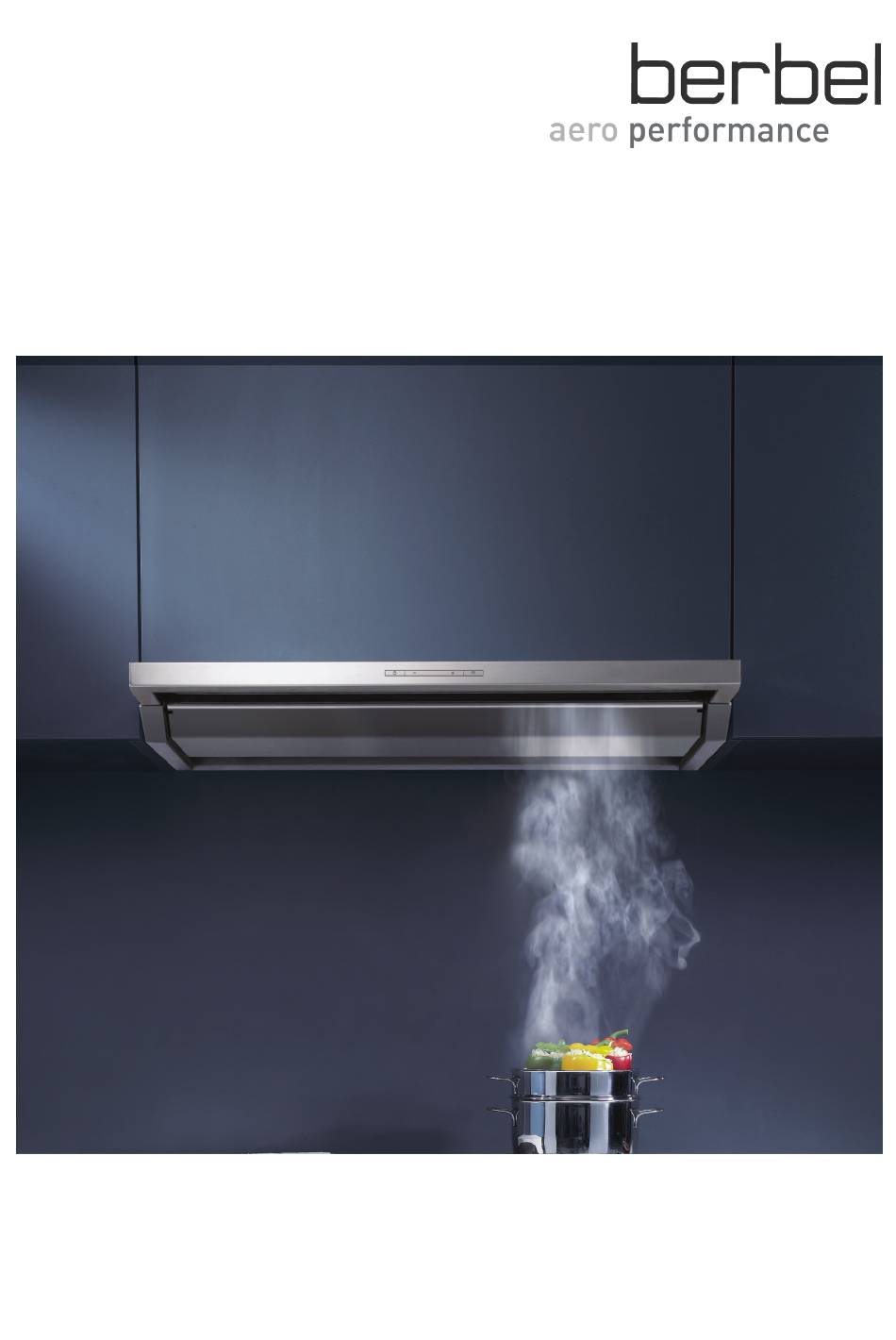

Built-in Hoods BEH 60/90 FL/FLT
Operating Instructions
03/2010
English version of original German instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEH 60 FL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Berbel BEH 60 FL

Summary of Contents for Berbel BEH 60 FL

  • Page 1 Built-in Hoods BEH 60/90 FL/FLT Operating Instructions 03/2010 English version of original German instructions...
  • Page 2 In the following The illustrations contain portrayals in various grey text, our berbel built-in hoods BEH 60 FL/FLT and scales. Movements which are to be carried out are BEH 90 FL/FLT product is briefly referred to as made clear using movement or direction arrows.

  • Page 3: Table Of Contents

    Table of contents Safety ................................5 Proper use ................................5 Ban on independent conversions and modifications ..................5 Basic safety instructions .............................5 Structural features of the information on dangers ....................7 Structural features of notices regarding material or environmental damage............7 Description...............................8 Possible operating modes ..........................8 View of the device with flap closed........................10 View of the device with flap open ........................11 Operation with the button panel ........................12...
  • Page 4 Disposal.................................29 Disposing of packaging.............................29 deviceDisposal..............................29 Technical data ...............................30 Model plate ...............................30 Built-in hood BEH 60 FL/FLT..........................30 Built-in hood BEH 90 FL/FLT..........................30 Contacting the manufacturer..........................31...

  • Page 5: Safety

    • Check the device and all parts for visible damage. In the event of damage, contact your specialist Proper use dealer or the berbel customer service. The device must only be used in flawless condition. The device can be used to extract cooking vapours during cooking.
  • Page 6 Safety Avoiding dangers due to electric shock designate a person to prevent the fuse from being switched on. • Have work on the voltage supply carried out by a qualified, trained specialist electrician only. − Allow the device to dry. At the very least, the specialist electrician must −...

  • Page 7: Structural Features Of The Information On Dangers

    Safety The device may only be installed above a fireplace Avoiding environmental damage for solid fuels (e.g. coal-fired stove) if: • Dispose of the device and its accessories • the fireplace has a sealed cover which cannot be according to the legal regulations. removed.

  • Page 8: Description

    Description Description Cleaning is carried out in several cleaning stages. The majority of the particles of dirt such as e.g. the The following illustrations show the way in grease and oil particles from the intaken room air which the possible operating modes function. are collected in the lower grease tray.
  • Page 9 Description Hybrid mode grease and oil particles from the intaken room air are collected in the lower grease tray. Whilst part of the cleaned room air is conducted outside, the filter filling in the hybrid filter neutralises odour contents which are present in the remainder of the intaken room air.

  • Page 10: View Of The Device With Flap Closed

    Description View of the device with flap closed Built-in hood BEH 60 FL Lighting ON/OFF button   Built-in hood BEH 90 FL Lighting   Extension Change output level button   Flap with lower grease tray Switch on run-on button ...

  • Page 11: View Of The Device With Flap Open

    Built-in hood BEH 90 FL Flap with lower grease tray   Upper grease tray  The following descriptions are identical for built- in hoods BEH 60 FL and BEH 90 FL. BEH 60 FL is shown in the illustrations.

  • Page 12: Operation With The Button Panel

    Operation with the button panel Operation with the button ATTENTION panel To operate the FLT version, see Operation with the Fire hazard due to flambéing beneath Sensor-Touch control panel page 16. the device. Naked flames may e.g. damage neighbouring cupboards. WARNING Do not flambé...

  • Page 13: Changing The Output Level

    Operation with the button panel Proceed as follows to switch on the device's Press the "+" button. ventilation function: Press the "+" button once. The device operates at the next higher output level. The relevant LEDs light up. The device operates at output level "1". The relevant LED lights up.

  • Page 14: Switching Off The Ventilation Function

    Operation with the button panel Switching the run-on function on and off The device is equipped with a run-on function. When this function is used, the device continues to operate at output level 2 for ten minutes and then switches the ventilation function off automatically. Press the left-hand button to switch the run-on function on.

  • Page 15: Using The Extension

    Operation with the button panel Switching on the lighting Opening the extension Press the right-hand button to switch the lighting Proceed as follows to open the extension: Grip beneath the front panel. Pull the extension forwards to stop. The lighting is switched on. Switching off the lighting Press the right-hand button again to switch the lighting off.

  • Page 16: Operation With The Sensor-Touch Control Panel

    Operation with the Sensor-Touch control panel Operation with the Sensor- In order to actuate the desired function, touch the Touch control panel corresponding touch fields with your finger. To operate the FL version, see Operation with the button panel page 12. WARNING Danger of suffocation due to a lack of oxygen on operation of the device.

  • Page 17: Changing The Output Level

    Operation with the Sensor-Touch control panel Switching the run-on function on and off Replace the filter's filling if you switch the device on and determine an unpleasant Manual odour. The device is equipped with a run-on function. If this function is used, the device continues to operate at See Cleaning from page 20.

  • Page 18: Carrying Out Settings

    Operation with the Sensor-Touch control panel Switching configuration mode on and off Cleaning the "Capillar Trap" Proceed as follows to switch configuration mode on: This display (4) flashes every 20 hours of operation. Make sure that the device is switched off. Clean the "Capillar Trap".
  • Page 19 Operation with the Sensor-Touch control panel Proceed as follows to switch recirculated air mode Proceed as follows to switch off the automatic run- on function: Switch configuration mode on. Switch configuration mode on. Touch the touch field for output level 2. Touch the touch field for output level 4.

  • Page 20: Cleaning

    Cleaning Cleaning Proceed as follows to clean the device in the case of normal soiling: DANGER Open the flap by pulling it downwards at the rounded edge. Fatal electric shock due to fluids which enter the device. Never pour fluids into the device. WARNING Fire hazard due to grease residues in and on the device.
  • Page 21 Cleaning can be easily removed and installed and can be Grip the grease tray, which is folded down reused after cleaning. vertically, at the sides using both hands. Raise the lower grease tray approx. 2 cm (1.). Proceed as follows to clean the device in the case Release the lower grease tray by pulling it of severe soiling: forwards (2.).
  • Page 22 Cleaning Removing the "Capillar Trap" Insert the "Capillar Trap" into the device by pressing it firmly upwards. Grip the "Capillar Trap" at the sides. The "Capillar Trap" does not engage; instead, it is Pull the "Capillar Trap" off downwards. merely clamped in. Cleaning parts Installing the lower grease tray Clean the lower grease tray e.g.

  • Page 23: Cleaning Surfaces

    Cleaning Press the grease tray backwards into the device Clean surfaces with a soft, moist cloth and a mild (1.). household cleaning agent. Pull the grease tray downwards (2.) until it engages. Make sure that the grease tray is inserted correctly.

  • Page 24: Maintenance

    50,000 hours of replacement of the filter filling is otherwise operation. impossible. Contact your specialist berbel dealer or the berbel Remove all coverings and other surroundings. customer service in the event of malfunctions. The filter must be freely accessible.
  • Page 25 Maintenance Removing the recirculating air filter Position the filter on the device from above. Proceed as follows to replace the filter filling: Pull the filter out upwards using the folding handle. The filter is correctly inserted when the lower edge lies fully on the device.
  • Page 26 Maintenance Hybrid mode only: Slide the outgoing air line into the filter. Mask the transition between the outgoing air line and the guide aid with sealing tape. Make sure that the outgoing air line is correctly connected. Install the coverings or other surroundings.

  • Page 27: Rectifying Malfunctions

    The extractor hood is connected to a Open the window. window switch and the window is closed. Lighting does not The bulb is defective. Contact your specialist berbel dealer. function. Odour formation The hybrid filter filling is spent. Replace the hybrid filter filling.
  • Page 28 24. The outgoing air line has not been Contact your specialist berbel dealer or connected or routed properly. the berbel customer service. If a malfunction cannot be rectified, contact your specialist berbel dealer or the berbel customer service.

  • Page 29: Disposal

    Disposal Disposal Dispose of the packaging according to material segregation and in an environmentally-friendly manner. Disposing of packaging DANGER deviceDisposal Danger of suffocation due to parts of the packaging (e.g. films and polystyrene). Store film or other parts of the packaging in a location which is inaccessible to children.

  • Page 30: Technical Data

    • Symbols of the legal regulations to which the consumption (at highest output level) device adheres and test symbols. LED bulb 24 V/7 W Built-in hood BEH 60 FL/FLT Width 599 mm The device has been manufactured under adherence to the regulations of VDE 60335-2-31 Depth...

  • Page 31: Contacting The Manufacturer

    Contacting the manufacturer Contacting the manufacturer If you have any questions which are not answered by these instructions, contact: berbel Ablufttechnik GmbH Sandkampstraße 100 D-48432 Rheine Telephone +49 (0)800/56 06 06-0* +49 (0)800/56 06 06-1* Internet www.berbel.de *) Free from the German land line...
  • Page 32 © KONTECXT GmbH Technische Dokumentation D-45145 Essen www.technische-dokumentation.de Printed in Germany...
