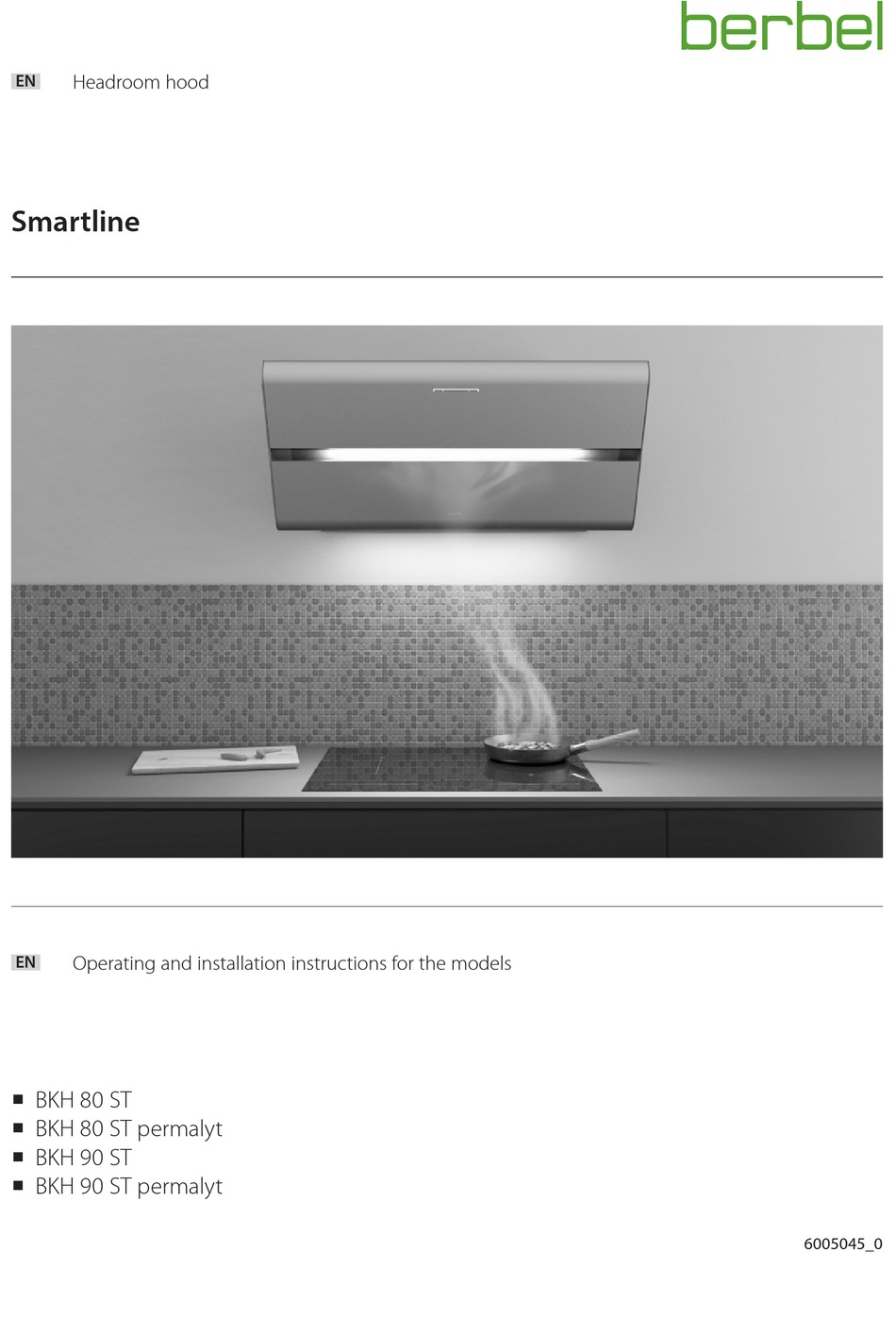

- Page 1 Headroom hood Smartline Operating and installation instructions for the models ƒ BKH 80 ST ƒ BKH 80 ST permalyt ƒ BKH 90 ST ƒ BKH 90 ST permalyt 6005045_0...
- Page 2 Document information Symbol clarification - text ☞ Handling requirement Operating and installation instructions for: y Headroom hood BKH 80 ST E02 y Listing y Headroom hood BKH 80 ST permalyt E02 y Headroom hood BKH 90 ST E02 D Reference to another point in this document y Headroom hood BKH 90 ST permalyt E02 Reference to other documents that should be observed Descriptions are identical for all models.
-
Page 3: Table Of Contents
Table of contents Safety information ......4 Proper intended use ..... 4 Authorised target groups . -
Page 4: Safety Information
Safety information Safety information General safety instructions D WARNING! Proper intended use Hazard through a disregard of the operating and installation instructions! The device serves to extract cooking vapours. This manual contains important information for the safe The device is intended exclusively for private domestic use. handling of the device. -
Page 5: Product Information
Product information Product information Recirculated air mode The device is used in recirculated air mode. Functional principle The filter filling in the recirculated air filter neutralises any smelly odours present. The odour-free, cleaned room air is fed back into the room. The humidity in the room can be reduced with the fresh air feed. -
Page 6: Scope Of Delivery
Product information Technical data Connection voltage 230 V / 50 Hz 230 V / 50 Hz A Adjusting screws for alignment 186 W, 186 W, Total power B Connector for recirculated air filter permalyt 311 W 311 W C Connector for mains cable Fan power consumption 170 W 170 W... -
Page 7: Installation
Installation Installation Requirements for the installation location D WARNING! Safety instructions for installation Risk of death due to improper installation! Disregard of the ambient conditions can lead to hazardous D WARNING! situations, e.g. in the handling of electrical power or gas. ☞... -
Page 8: Installation Procedure
Installation Installation procedure 3.4.2 Unpack the device Short overview: D ATTENTION! 1. Preparation for installation 2. Unpack the device Hazard of glass breaking or other damage due to 3. Remove inside parts incorrect handling! 4. Hang the device in place The device and its surfaces can be damaged when being 5. -
Page 9: Remove Inside Parts
Installation 3.4.3 Remove inside parts The Capillar Traps are inserted and held in place in the device by magnets. D ATTENTION! Danger of property damage through falling parts! When moving the device, the front panel may open and parts lying inside could fall out. ☞... -
Page 10: Hang The Device In Place
Installation D WARNING 3.4.4 Hang the device in place Risk of death due to explosions or electric shock! The device is designed to be hung on walls. Drilling through gas, water or electrical lines can lead to hazardous situations. When mounting on a solid wall: ☞... -
Page 11: Connect Accessories
Installation D WARNING! 3.4.5 Connect accessories Danger of injuries through improper handling! Depending on the installation situation, available accessories Hanging the device requires a great deal of physical exertion may be connected to the hood, e.g.: due to its size and weight. If the device falls down, serious y Window contact switch injuries are possible. -
Page 12: Establish Electrical Power Supply
Installation 3.4.6 Establish electrical power supply 3.4.7 Installing the recirculated air filter permalyt ☞ Observe the voltage specifications on the rating plate. ☞ Plug the cold device plug into the socket on the fan housing. ☞ Plug the connecting cable mains plug into the socket. ☞... -
Page 13: Insert Inside Parts
Installation D ATTENTION! 3.4.8 Insert inside parts Danger of property damage through improper handling! After the installation, the parts lying inside should be re-fitted. When inserting the filter in the device, the cables may become damaged. ☞ Carefully insert the filter in the device. ☞... -
Page 14: Check And Carry Out Commissioning
Installation 3.4.9 Check and carry out commissioning D ATTENTION! Risk of disruptions due to moisture in the device! If the device is moved from a cold environment into a hot one, condensation may form inside. ☞ Wait about 2-3 hours before bringing the device into service. -
Page 15: Operation
Operation Operation If you switch the machine on and hear an unusually loud fan noise: ☞ Clean the device. ☞ Observe the stipulations for cleaning. Safety information for operation D “5. Cleaning” (page 18). D WARNING! If you switch the machine on and notice a smell: ☞... -
Page 16: Normal Operation
Operation 4.2.1 Normal operation Button Function D WARNING The device is turned off. ☞ Press button 1x. Fire hazard due to grease residue! The device switches on with power level 1. In operation grease residue, which is highly inflammable, collects in and on the device. The device is turned off. -
Page 17: Run-On Function
Operation 4.2.2 Run-on function 4.2.3 Hob lighting The device comes with a run-on function. When the function The hob lighting is fitted with energy-saving LED lighting. is used, the device continues to work 10 minutes after being The lighting can be used at any time and independently of switched off. -
Page 18: Cleaning
Cleaning Cleaning Cleaning procedures The device draws in dirt particles (e.g. grease and oil particles) with the air from the room. The dirt particles are separated off Safety information for cleaning and collected in the upper section, the lower section and in the Capillar Traps. - Page 19 Cleaning Upper and lower sections Capillar Trap The lower section is inserted in the lower front panel. The Capillar Traps are inserted and held in place in the device by magnets. ☞ Fold the lower front panel down. ☞ Grasp the Capillar Traps on the sides with both hands. ☞...
-
Page 20: Maintenance
Maintenance Maintenance Maintenance intervals y When the control indicator blinks - every 1000 fan operating hours. D “4.2.4 Filter filling indicator” (page 17). Safety instructions for maintenance y With odours in the exhaust air. y With daily use, after 24 months at the latest. D WARNING! y With occasional use, after 36 months at the latest. -
Page 21: Fault Rectification
Maintenance The fan does not work. y The device is not switched on. ☞ Check all power levels. D “4.2.1 Normal operation” (page 16). y The device is connected to a window contact switch and the window is closed. ☞ Open the window. y The device is connected to a safety device. -
Page 22: Dismounting
Dismounting Dismounting Disposal D WARNING! Dispose of packaging Danger of injuries through improper handling! D ATTENTION! Taking the device down requires a great deal of physical exertion due to its size and weight. If the device falls down, Risk of environmental damage due to improper disposal serious injuries are possible. -
Page 23: Dispose Of The Device
Risk of environmental damage due to improper disposal of the device! Post: berbel Ablufttechnik GmbH The device is subject to the European Directive 2012/19/EU Sandkampstraße 100 and should not be disposed of with household waste. D-48432 Rheine ☞... - Page 24 6005045_0 05.12.2019...
