Summary of Contents for Berbel Smartline BIH 100 ST
Page 1

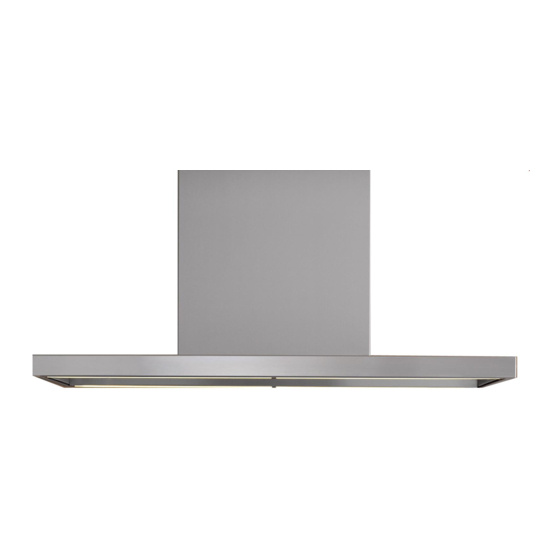

Island hood Smartline Operating and installation instructions for the models BIH 100 ST 6005736_0...
Page 2
Document information Symbol clarification - text ☞ Handling requirement Operating and installation instructions for: y Smartline BIH 100 ST E02 island hood y Listing y Original instructions. D Reference to another point in this document y Part of the product.
Safety information Safety information General safety instructions D WARNING! Proper intended use Hazard through a disregard of the operating and installation instructions! The device serves to extract cooking vapours. This manual contains important information for the safe The device is intended exclusively for private domestic use. handling of the device.
Product information Product information Functional principle BackFlow technology (optional) y Condensate or droplet formation on the extractor hood (e.g. if steam touches the cold surface) is prevented by the ventilation of the hood underside. y Part of the vented air quantity is blown in at the sides over the hood underside and directed into the suction gap.
Product information Product overview Scope of delivery A Telescopic chimney stack with cover B Control panel C Hood body D Upper section E Lower section (removable) F Separating unit (removable) consisting of centrifugal separation and catchment screen (“Capillar Trap”) G Ratings plate (in the air induction shaft of the separating unit) H Hob lighting A Ceiling mounting panel...
Product information Technical data A Chimney stack B Rear chimney cover C Front chimney cover D BackFlow port E Drilling template BIH 100 ST E02 F Wieland plug (plugged into chimney stack) G Hood body H 2 cladding panels for the underside of the hood body 4 galvanised steel bolt anchors 8 mm with nuts (size 13) Connection voltage 230 V / 50 Hz...
Installation Installation Requirements for the installation location D WARNING! Safety instructions for installation Risk of death due to improper installation! Disregard of the ambient conditions can lead to hazardous situations, e.g. in the handling of electrical power or gas. D WARNING! ☞...
Installation Requirements for individual operating modes Requirements for the exhaust air ducting (only for extracted air mode or hybrid mode) Further accessories may be required depending on the operating mode. D WARNING! Fire hazard and asphyxiation hazard due to improper 3.3.1 Requirements for recirculated air mode installation! When using the exhaust air ducting with other devices y Recirculated air fan on the fan outlet.
Installation Installation procedure If accessories (e.g. wall box, window contact switch) are required for the installation: Short overview: Observe the instructions for the accessories. 1. Preparation for installation ☞ Ensure that the accessories are correctly installed and 2. Unpacking the device ready for connection.
Installation 3.5.3 Determining the hanging position View from the front The device is designed to be hung on ceilings. When mounting on a solid ceiling: ☞ Make sure that the ceiling has sufficient load bearing capacity. ☞ Use the fastening materials provided. With different installation situations: ☞...
Page 12
Installation D WARNING! Risk of death due to explosions or electric shock! Drilling through gas, water or electrical lines can lead to hazardous situations. ☞ Ensure that there are no lines in the ceiling at the fastening points. ☞ Insert the bolt anchors into the holes. ☞...
Installation 3.5.4 Hanging the chimney stack D WARNING! Danger of injuries through improper handling! Hanging the device requires a great deal of physical exertion due to its size and weight. If the device falls down, serious injuries are possible. ☞ Two persons are required to hang the device. ☞...
Installation 3.5.5 Hanging the hood body D WARNING! Danger of injuries through improper handling! Hanging the device requires a great deal of physical exertion due to its size and weight. If the device falls down, serious injuries are possible. ☞ Two persons are required to hang the device. ☞...
Installation 3.5.6 Connecting accessories Depending on the installation situation, available accessories may be connected to the hood, e.g.: y Wall box y Window contact switch y Control flap y Recirculated air filter permalyt Observe the instructions for the accessories. D ATTENTION! Danger of damage due to improper connection! ☞...
Installation 3.5.7 Connecting the power supply D WARNING! Risk of death due to electric shock! Touching live parts can cause an electric shock, burns or death. ☞ Ensure that the power supply is switched off and remains ☞ Observe the voltage specifications on the ratings plate. ☞...
Installation 3.5.9 Installing filter (with recirculating and hybrid 3.5.10 Connecting exhaust air ducting (with extracted operation) air and hybrid mode) The BackFlow port (Ø 150 mm) is located on the fan housing Extracted air mode without BackFlow technology as an aid for the installation of the filter. The BackFlow port is not used.
Installation 3.5.11 Fitting chimney cover Hybrid mode D ATTENTION! Danger of damage due to improper handling! The body of the hood and the chimney could be damaged by movements during the installation. ☞ Keep a distance between the chimney and the body of the hood.
Page 19
Installation ☞ Pull the inner chimney element upwards and align the ☞ Pull the inner chimney element upwards and align the height of the chimney cover. height of the chimney cover. ☞ Gently bend the chimney cover apart and when doing so ☞...
Installation 3.5.12 Inserting lower section and separating unit 3.5.13 Check and carry out commissioning D ATTENTION! Risk of disruptions due to moisture in the device! If the device is moved from a cold environment into a hot one, condensation may form inside. ☞...
Operation Operation Measures to ensure a sufficient supply of fresh air: ☞ Open the windows. ☞ Open the doors. ☞ Ensure that the window contact switch and the wall box Safety instructions for operation are installed and ready for operation. ☞...
Operation 4.2.1 Normal operation Button Function D WARNING! The device is turned off. ☞ Press button 1x. Fire hazard due to grease residue! The device switches on with power level 1. In operation grease residue, which is highly inflammable, collects in and on the device. The device is turned off.
Operation 4.2.2 Run-on function 4.2.3 Hob lighting The device comes with a run-on function. When the function The hob lighting is fitted with energy-saving LED lighting. is used, the device continues to work 10 minutes after being The lighting can be used at any time and independently of switched off.
Operation 4.2.5 Check filter filling indicator The device has a control indicator to remind the operator to change the filter filling. If no air circulation filter is used, the control indicator has no meaning. The control indicator flashes every 1,000 fan operating hours. The hours counter is started anew by switching off the control indicator.
Cleaning Cleaning Cleaning procedures The device draws in dirt particles (e.g. grease and oil particles) with the air from the room. The dirt particles are separated off Safety instructions for cleaning and collected in the lower section and separating unit. Before every cleaning: D WARNING! ☞...
Page 26
Cleaning Lower section Separating unit The lower section is held in the device by two guide pins. The separating unit is inserted and is held in the device by side hooks. ☞ Fold the lower section down. ☞ Pull the side hooks inwards on both sides. ☞...
Maintenance Maintenance 6.2.2 Replacing filter filling (with recirculating and hybrid mode) Odours are trapped in the filter filling in the recirculating air Safety instructions for maintenance filter or hybrid filter. The odour-free, cleaned room air is fed back into the room. D WARNING! Recirculating air filters and hybrid filters are maintenance-free Hazard through a disregard of the maintenance...
Page 28
Maintenance Remove the hybrid filter ☞ Remove the exhaust pipe from the hybrid filter. ☞ Lift the filter at least 30 mm. ☞ Remove the filter to the front. ☞ Loosen the chimney cover at the bottom of the chimney The replacement of the filter filling is carried out as stack.
Maintenance Fault rectification Control panel does not react after being touched several times. y The control panel is soiled. Possible faults are described below: ☞ Clean the control panel. Description of the fault. D “5. Cleaning” (page 25). y Possible cause. y The device software requires a restart.
Disassembly Disassembly ☞ Loosen the front chimney cover. ☞ Loosen the rear chimney cover. ☞ Release the threaded connection for the hood body on the chimney stack. D WARNING! ☞ Secure the hood body against falling with a second Danger of injuries through improper handling! person.
Disposal Disposal Disposing of the device D ATTENTION! Disposing of packaging Risk of environmental damage due to improper disposal of the device! D ATTENTION! The device is subject to the European Directive 2012/19/EU and should not be disposed of with household waste. Risk of environmental damage due to improper disposal ☞...
BIH 100 ST E02 LE Hood 29.1 LE Hood Class GFE Hood 96.6 BIH 100 ST E02 berbel GFE Hood Class Flow rate in extracted air mode in m³/h Stage min. to max. 320/410/520 Stage Power/Intense Flow rate in recirculated air mode in m³/h...
Annex Contact If you have any questions or suggestions, please select from the following options: Post: berbel Ablufttechnik GmbH Sandkampstraße 100 D-48432 Rheine Telephone: +49 (0) 5971 / 80 80 9 - 0 Mon to Thu 8:00 – 17:30 hrs and Fri 8:00 –...
