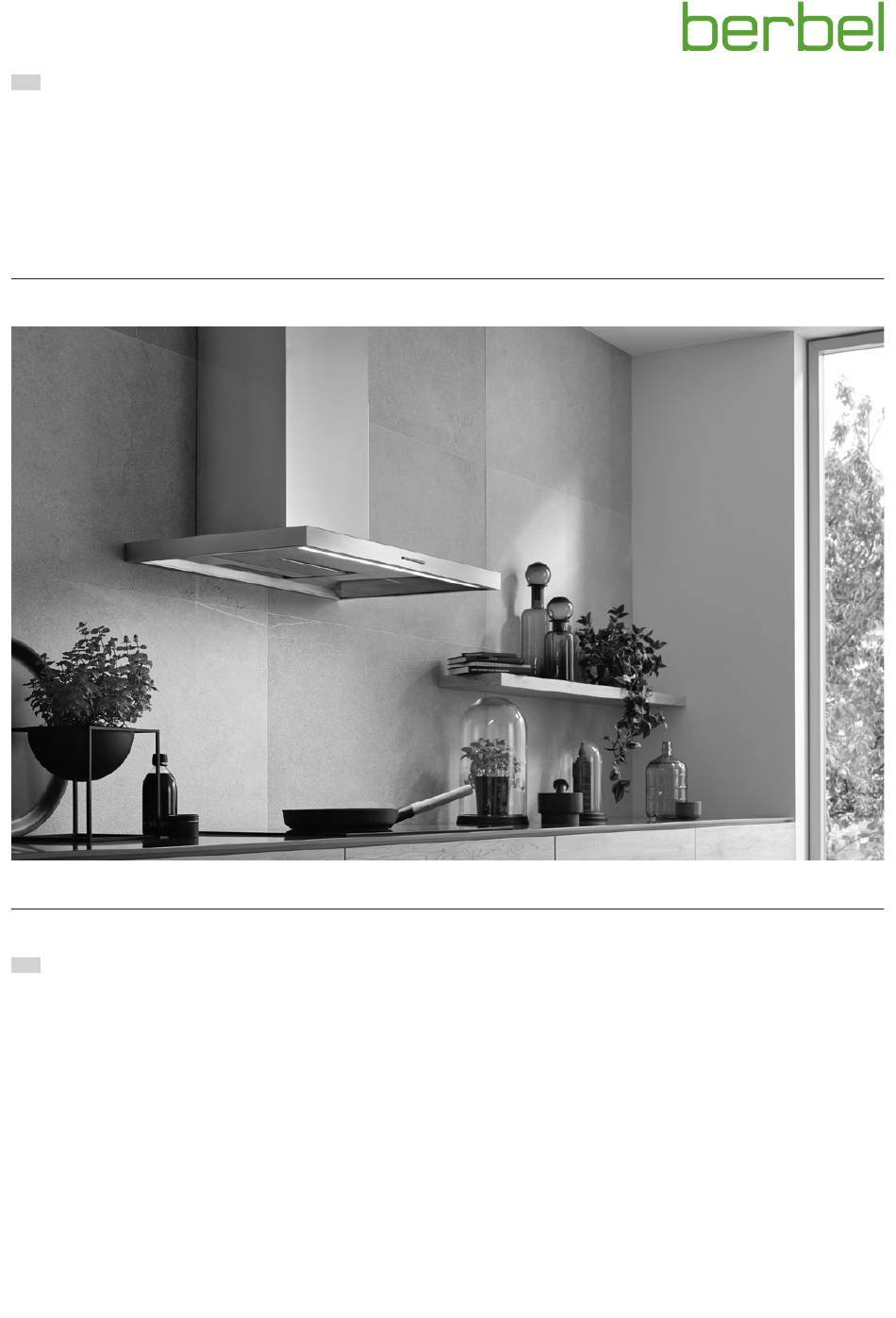

- Page 1 Wall hood Smartline Operating and installation instructions for the models ƒ BWH 90 ST 6005738_0...
- Page 2 Document information Symbol clarification - text ☞ Handling requirement Operating and installation instructions for: y Smartline wall hood BWH 90 ST E02 y Listing y Original instructions. D Reference to another point in this document y Part of the product. y Copyright protected.
-
Page 3: Table Of Contents
Table of contents Safety information ......4 Maintenance ....... . . 25 Proper intended use . -
Page 4: Safety Information
Safety information Safety information General safety instructions D WARNING! Proper intended use Hazard through a disregard of the operating and installation instructions! The device serves to extract cooking vapours. This manual contains important information for the safe The device is intended exclusively for private domestic use. handling of the device. -
Page 5: Product Information
Product information Product information Functional principle BackFlow technology (optional) y Condensate or droplet formation on the extractor hood (e.g. if steam touches the cold surface) is prevented by the ventilation of the hood underside. y Part of the vented air quantity is blown from the front and sides over the hood underside and directed into the suction gap. -
Page 6: Operating Modes
Product information Operating modes Product overview The device is suitable for the following operating modes: y Recirculated air mode y Extracted air mode y Hybrid mode 2.2.1 Recirculated air mode The filter filling in the recirculated air filter neutralises any smelly odours present. -
Page 7: Scope Of Delivery
Product information Scope of delivery Technical data BWH 90 ST E02 Connection voltage 230 V / 50 Hz Total power 178 W Fan power consumption 170 W Lighting LED 7.3 W, 373 lx Hob lighting colour temperature 3500 K Width 900 mm Depth 515 mm Height in recirculated air mode 710 - 1035 mm... -
Page 8: Installation
Installation Installation Requirements for the installation location D WARNING! Safety instructions for installation Risk of death due to improper installation! Disregard of the ambient conditions can lead to hazardous situations, e.g. in the handling of electrical power or gas. D WARNING! ☞... -
Page 9: Requirements For Individual Operating Modes
Installation Requirements for individual operating modes Requirements for the exhaust air ducting (only for extracted air mode or hybrid mode) Further accessories may be required depending on the operating mode. D WARNING! Fire hazard and asphyxiation hazard due to improper 3.3.1 Requirements for recirculated air mode installation! When using the exhaust air ducting with other devices y Recirculated air fan on the fan outlet. -
Page 10: Installation Procedure
Installation Installation procedure 3.5.2 Unpacking the device Short overview: D ATTENTION! 1. Preparation for installation 2. Unpacking the device Hazard of glass breaking or other damage due to 3. Removing the lower section and separating unit incorrect handling! 4. Hanging the device in place The device and its surfaces can be damaged when being 5. -
Page 11: Removing The Lower Section And Separating Unit
Installation 3.5.3 Removing the lower section and separating The separating unit is inserted and is held in the device by unit side hooks. D ATTENTION! Danger of property damage through falling parts! When working on the device, parts of the device or tools could fall and damage the kitchen equipment. -
Page 12: Hanging The Device In Place
Installation D WARNING! 3.5.4 Hanging the device in place Risk of death due to explosions or electric shock! The device is designed to be hung on walls. The chimney can Drilling through gas, water or electrical lines can lead to be adapted to the ceiling height by pulling it out. - Page 13 Installation a = 7 b = 3-6 The top fastening screws should only be tightened once the ☞ Hang the device on the mounting points. device has been aligned. The lower fastening screws prevent the device pulling away from the wall and are no longer accessible after the device is hung in place.
-
Page 14: Connecting Accessories
Installation 3.5.5 Connecting accessories Wall box y The wall box is closed when the control contacts are Depending on the installation situation, available accessories open. may be connected to the hood, e.g.: y The wall box is open when the control contacts are y Wall box closed. -
Page 15: Installing Filter
Installation 3.5.7 Installing filter (with recirculating and hybrid 3.5.8 Connecting exhaust air ducting (with extracted operation) air and hybrid mode) The BackFlow port (Ø 150 mm) is located on the fan housing Extracted air mode without BackFlow technology as an aid for the installation of the filter. The BackFlow port is not used. -
Page 16: Establishing The Electrical Power Supply
Installation 3.5.10 Mounting the chimney Hybrid mode D ATTENTION! Danger of damage due to improper handling! The body of the hood and the chimney could be damaged by movements during the installation. ☞ Keep a distance between the chimney and the body of the hood. -
Page 17: Inserting Lower Section And Separating Unit
Installation ☞ Guide the lower section into the device from below, until the guide pins of the lower section are in front of the guide grooves on both sides. ☞ Pull the guide pins of the lower sections into the guide grooves. -
Page 18: Check And Carry Out Commissioning
Installation 3.5.12 Check and carry out commissioning D ATTENTION! Risk of disruptions due to moisture in the device! If the device is moved from a cold environment into a hot one, condensation may form inside. ☞ Wait about 2-3 hours before bringing the device into service. -
Page 19: Operation
Operation Operation Measures to ensure a sufficient supply of fresh air: ☞ Open the windows. ☞ Open the doors. ☞ Ensure that the window contact switch and the wall box Safety instructions for operation are installed and ready for operation. ☞... -
Page 20: Normal Operation
Operation 4.2.1 Normal operation Button Function D WARNING! The device is turned off. ☞ Press button 1x. Fire hazard due to grease residue! The device switches on with power level 1. In operation grease residue, which is highly inflammable, collects in and on the device. The device is turned off. -
Page 21: Run-On Function
Operation 4.2.2 Run-on function 4.2.3 Hob lighting The device comes with a run-on function. When the function The hob lighting is fitted with energy-saving LED lighting. is used, the device continues to work 10 minutes after being The lighting can be used at any time and independently of switched off. -
Page 22: Check Filter Filling Indicator
Operation 4.2.5 Check filter filling indicator The device has a control indicator to remind the operator to change the filter filling. If no air circulation filter is used, the control indicator has no meaning. The control indicator flashes every 1,000 fan operating hours. The hours counter is started anew by switching off the control indicator. -
Page 23: Cleaning
Cleaning Cleaning Cleaning procedures The device draws in dirt particles (e.g. grease and oil particles) with the air from the room. The dirt particles are separated off Safety instructions for cleaning and collected in the lower section and separating unit. Before every cleaning: D WARNING! ☞... - Page 24 Cleaning Lower section Separating unit The lower section is held in the device by two guide pins. The separating unit is inserted and is held in the device by side hooks. ☞ Fold the lower section down. ☞ Pull the side hooks inwards on both sides. ☞...
-
Page 25: Maintenance
Maintenance Maintenance 6.2.2 Replacing filter filling (with recirculating and hybrid mode) Odours are trapped in the filter filling in the recirculating air Safety instructions for maintenance filter or hybrid filter. The odour-free, cleaned room air is fed back into the room. D WARNING! Recirculating air filters and hybrid filters are maintenance-free Hazard through a disregard of the maintenance... - Page 26 Maintenance Remove the hybrid filter ☞ Slide the inner chimney duct downwards. ☞ Remove the exhaust pipe from the hybrid filter. ☞ Lift the filter at least 30 mm. ☞ Remove the filter to the front. The replacement of the filter filling is carried out as described in the associated instructions.
-
Page 27: Fault Rectification
Maintenance Fault rectification Control panel does not react after being touched several times. y The control panel is soiled. Possible faults are described below: ☞ Clean the control panel. Description of the fault. D “5. Cleaning” (page 23). y Possible cause. y The device software requires a restart. -
Page 28: Disassembly
Disassembly Disassembly D WARNING! Danger of injuries through improper handling! Taking the device down requires a great deal of physical exertion due to its size and weight. If the device falls down, serious injuries are possible. ☞ Two persons are required to take the device down. ☞... -
Page 29: Disposal
Disposal Disposal Disposing of the device D ATTENTION! Disposing of packaging Risk of environmental damage due to improper disposal of the device! D ATTENTION! The device is subject to the European Directive 2012/19/EU and should not be disposed of with household waste. Risk of environmental damage due to improper disposal ☞... -
Page 30: Annex
29.3 FDE Hood Class BWH 90 ST E02 LE Hood 51.1 LE Hood Class GFE Hood 96.3 berbel BWH 90 ST E02 GFE Hood Class Flow rate in extracted air mode in m³/h Stage min. to max. 310/370/450 Stage Power/Intense Flow rate in recirculated air mode in m³/h... -
Page 31: Contact
Annex Contact If you have any questions or suggestions, please select from the following options: Post: berbel Ablufttechnik GmbH Sandkampstraße 100 D-48432 Rheine Tel: +49 (0) 5971 80 80 9 - 0 Mon to Thu 08:00 – 17:30 hrs and Fri 08:00 – 16:30 hrs... - Page 32 6005738_0 25.03.2021...
