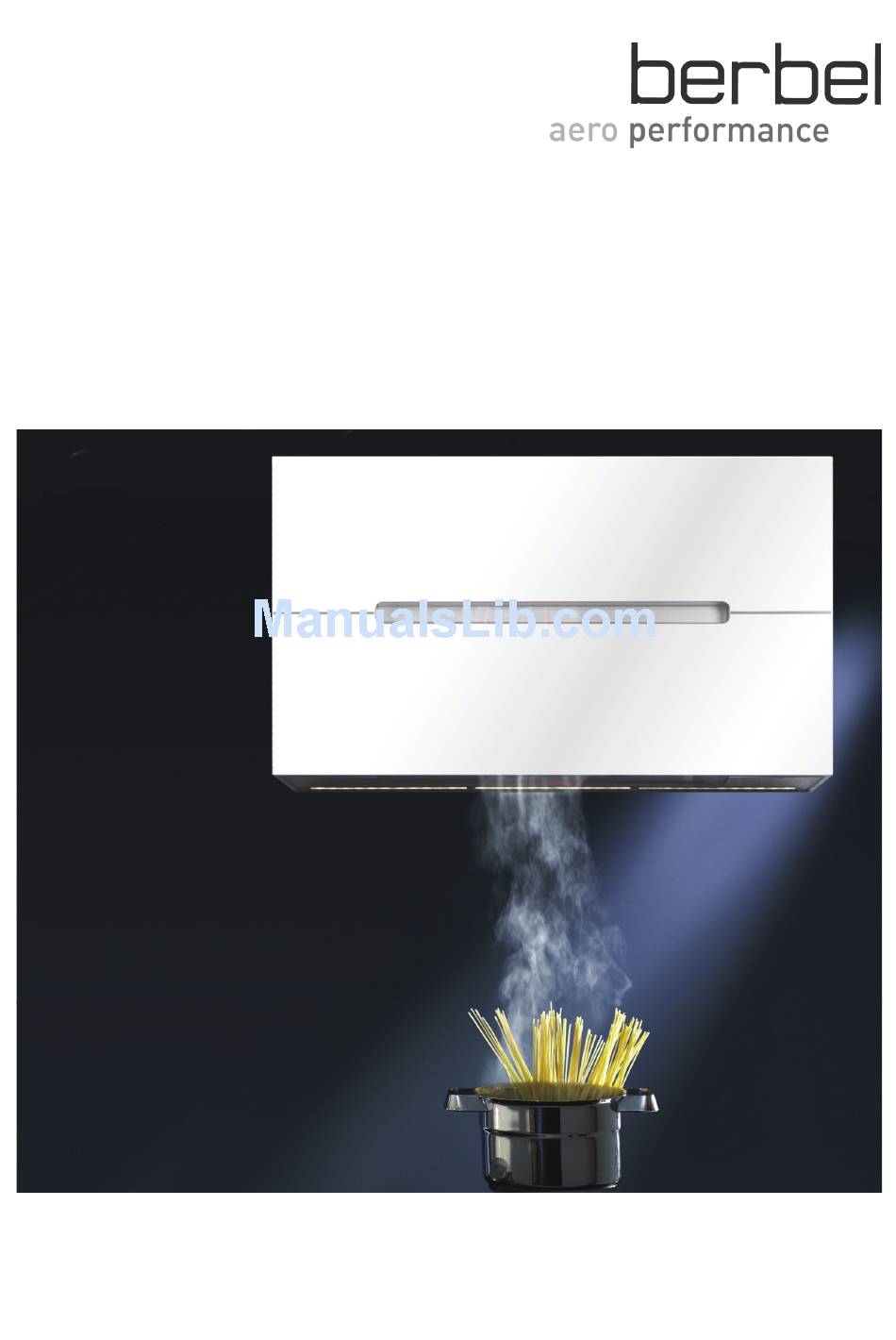

Page 1: Operating Instructions
BKH 90/120 CB Air extraction and recirculated air mode Operating Instructions 11/2009 English version of original German instructions... - Page 2 These instructions help you to use our product properly, safely and economically. In the following The illustrations contain portrayals in various grey text, our berbel headroom hood BKH 90/120 CB scales. Movements which are to be carried out are product is briefly referred to as device.
-
Page 3: Table Of Contents
Replacing the recirculating air filter filling ......................15 Maintenance ..............................19 Maintaining the device ............................19 Maintaining the lighting .............................19 Rectifying malfunctions ..........................20 Disposal.................................21 Disposing of packaging.............................21 deviceDisposal..............................21 Technical data ...............................22 Model plate ...............................22 BKH 90 CB ...............................22 BKH 120 CB ..............................22 Contacting the manufacturer..........................23... -
Page 4: Safety
• Check the device and all parts for visible damage. In the event of damage, contact your specialist Proper use dealer or the berbel customer service. The device must only be used in flawless condition. The device can be used to extract cooking vapours during cooking. - Page 5 Safety • Only use the device if it is connected and fused A soiled device may cause fire hazards. according to the technical data. • Keep the device in flawless condition and check it • Do not kink or crush the mains cable. regularly.
-
Page 6: Structural Features Of The Information On Dangers
Safety simultaneously, gases or waste gases may be CAUTION drawn into the room. • Make sure that all of the permits required for Notices containing the word CAUTION operation in your country are available (e.g. those warn of a situation which may lead to of the master chimney sweep). -
Page 7: Description
Description Description cleaning stage removes e.g. grease and air particles from the intaken room air. The next cleaning stage filters light, flying particles (e.g. fluff) Air extraction mode from the intaken room air. The cleaned room air is The device intakes room air, filters the room air and conducted into the open air. -
Page 8: Recirculated Air Mode
The device intakes room air, filters the room air and returns the cleaned room air into the room. berbel extractor hoods are developed according to Cleaning is carried out in several cleaning stages. the state-of-the-art. They meet the prescribed safety The first cleaning stage removes e.g. -
Page 9: Operation
Operation Operation ATTENTION The following information on dangers applies to air extraction mode only. Fire hazard due to flambéing beneath the device. Naked flames may e.g. damage WARNING neighbouring cupboards. Danger of suffocation due to a lack of Do not flambé beneath the device. oxygen on operation of the device. -
Page 10: Changing The Output Level
Operation Switching off the ventilation function Proceed as follows to switch on the device: Turn the rotary knob clockwise from level "0" to Proceed as follows to switch off the ventilation the desired output level. function: The rotary knob engages at each output level. Turn the rotary knob counter-clockwise to the "0"... -
Page 11: Switching The Lighting On And Off
Operation Switching the lighting on and off output level for at least one minute. Carry out the following activities in direct In order to illuminate the cooker top, the device is succession: equipped with energy-saving LED lighting. Turn the rotary knob from the current position to The lighting can be used independently from the the "0"... -
Page 12: Cleaning And Care
Cleaning and care Cleaning and care Proceed as follows to clean the device in the case of normal soiling: DANGER Switch the device off. Fatal electric shock due to fluids which Open the lower front flap by pulling on the enter the device. -
Page 13: Cleaning In The Case Of Severe Soiling
Cleaning and care Close the lower front flap. Pull both dirt strips off forwards by hand. Cleaning in the case of severe soiling If the device is severely soiled, the dirt strips and the fluff screen must be removed. The stainless steel parts are held magnetically. -
Page 14: Cleaning Surfaces
Cleaning and care Insert the dirt strips into the device again. Close the lower front flap. Cleaning surfaces ATTENTION Damage to surfaces due to sharp- edged objects or aggressive cleaning agents. Never use sharp-edged objects, scouring agents or aggressive Make sure that the fluff screen is completely dry cleaning agents. -
Page 15: Replacing The Recirculating Air Filter Filling
Cleaning and care Removing the rotary knob Install the rotary knob by pressing the rotary knob upwards into the correct installation position (1). Pull the rotary knob off. Cleaning the rotary knob Clean the rotary knob in the dishwasher or using The following chapter applies to recirculated air a moist cloth. - Page 16 Cleaning and care Proceed as follows to replace the recirculating air WARNING filter filling: Remove the five screws (1) for the upper Risk of falling when replacing filter. ventilation cover. Use a stable stepladder. WARNING Risk of injury due to falling parts. Make sure that nobody is standing beneath the working area during work.
- Page 17 Cleaning and care Pull both recirculating air filters out upwards in To ensure that the recirculating air filter is succession using the folding handle. installed correctly, an approx. two centimetre- high guide aid is installed on the filter. Insert the recirculating air filters into the device from above using the folding handle.
- Page 18 Cleaning and care The ventilation cover can only be installed when the recirculating air filters are installed correctly. Place the ventilation cover (2) onto the extractor hood. Insert the five screws (1) and tighten them.
-
Page 19: Maintenance
Maintaining the lighting The device is equipped with LED lighting. The bulbs have a service life of approx. 50,000 hours of operation. Maintenance is not required. Contact your specialist berbel dealer or the berbel customer service in the event of malfunctions. -
Page 20: Rectifying Malfunctions
Replace the recirculating air filter filling. during operation. See Replacing the recirculating air filter filling on page 15. If a malfunction cannot be rectified, contact your specialist berbel dealer or the berbel customer service. DANGER Fatal electric shock due to improperly carried out repairs. -
Page 21: Disposal
Disposal Disposal Dispose of the packaging according to material segregation and in an environmentally-friendly manner. Disposing of packaging DANGER deviceDisposal Danger of suffocation due to parts of the packaging (e.g. films and polystyrene). Store film or other parts of the packaging in a location which is inaccessible to children. -
Page 22: Technical Data
• Symbols of the legal regulations to which the LED bulb 24 V/24 W device adheres and test symbols. BKH 90 CB The device has been manufactured under adherence to the regulations of VDE 60335-2-31 Width 900 mm and complies with the following directives and laws:... -
Page 23: Contacting The Manufacturer
Contacting the manufacturer Contacting the manufacturer If you have any questions which are not answered by these instructions, contact: berbel Ablufttechnik GmbH Sandkampstraße 100 D-48432 Rheine Telephone +49 (0)800/56 06 06-0* +49 (0)800/56 06 06-1* Internet www.berbel.de *) Free from the German land line... - Page 24 © KONTECXT GmbH Technische Dokumentation D-45145 Essen www.technische-dokumentation.de Printed in Germany...
