Tftp Software Updates For Mog600 Systems - SpectraLink NetLink MOG600 Installation Manual

SpectraLink Corporation Installation
NetLink OAI Gateway
9.2

TFTP Software Updates for MOG600 Systems

The OAI Gateway uses proprietary software programs written and maintained by
SpectraLink Corporation. The software versions that are running on the system
components can be displayed via the NetLink Telephony Gateway's
System Status
screen. SpectraLink or its authorized dealer will provide information about software
updates and how to obtain the software (for example, downloading from a web site).
Obtain and load a TFTP server on a LAN connected system. Consult your server
vendor's documentation for information about TFTP.
Once the update is obtained from SpectraLink, load it in a location that is accessible by
the TFTP program.
To configure the host and start the download, select the
TFTP Server Download
option from the menu.
Configuration NetLink OAI System
Enter the TFTP server hostname then use the arrow keys to move the cursor to the
Begin
option and press Enter to begin the download.

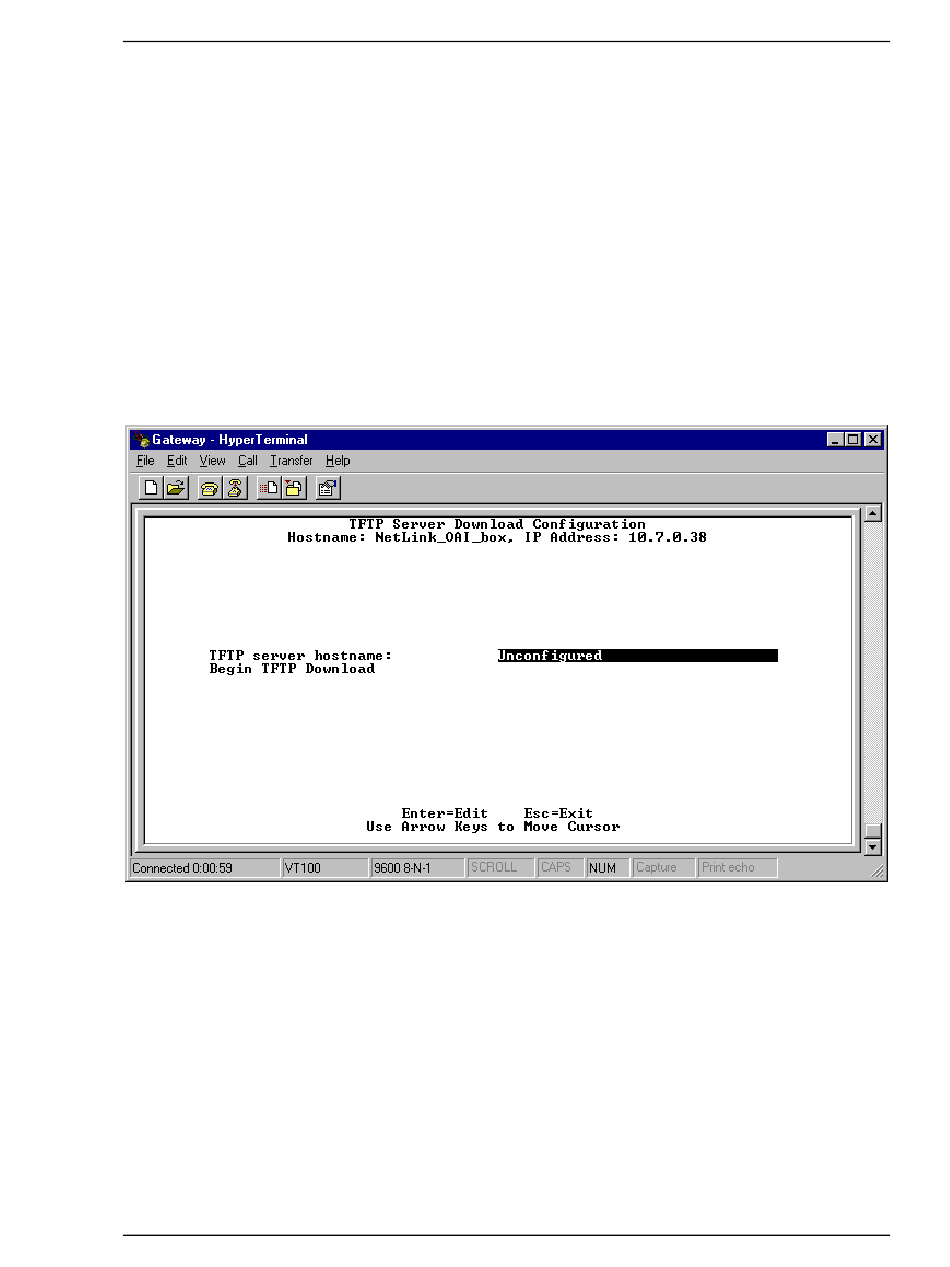

TFTP Download
The MOG600.bin code will be downloaded into the OAI Gateway.
Part Number: 72-0078-07-A.doc Page 36
