Network Status

The NetLink OAI Gateway is connected to the Ethernet network, referred to as the LAN
or Local Area Network. The information about that connection is provided through the
screen.
Network Status
From the , select . The screen displays information
System Status Menu Network Status
about the Ethernet network. This information can help troubleshoot network problems. A

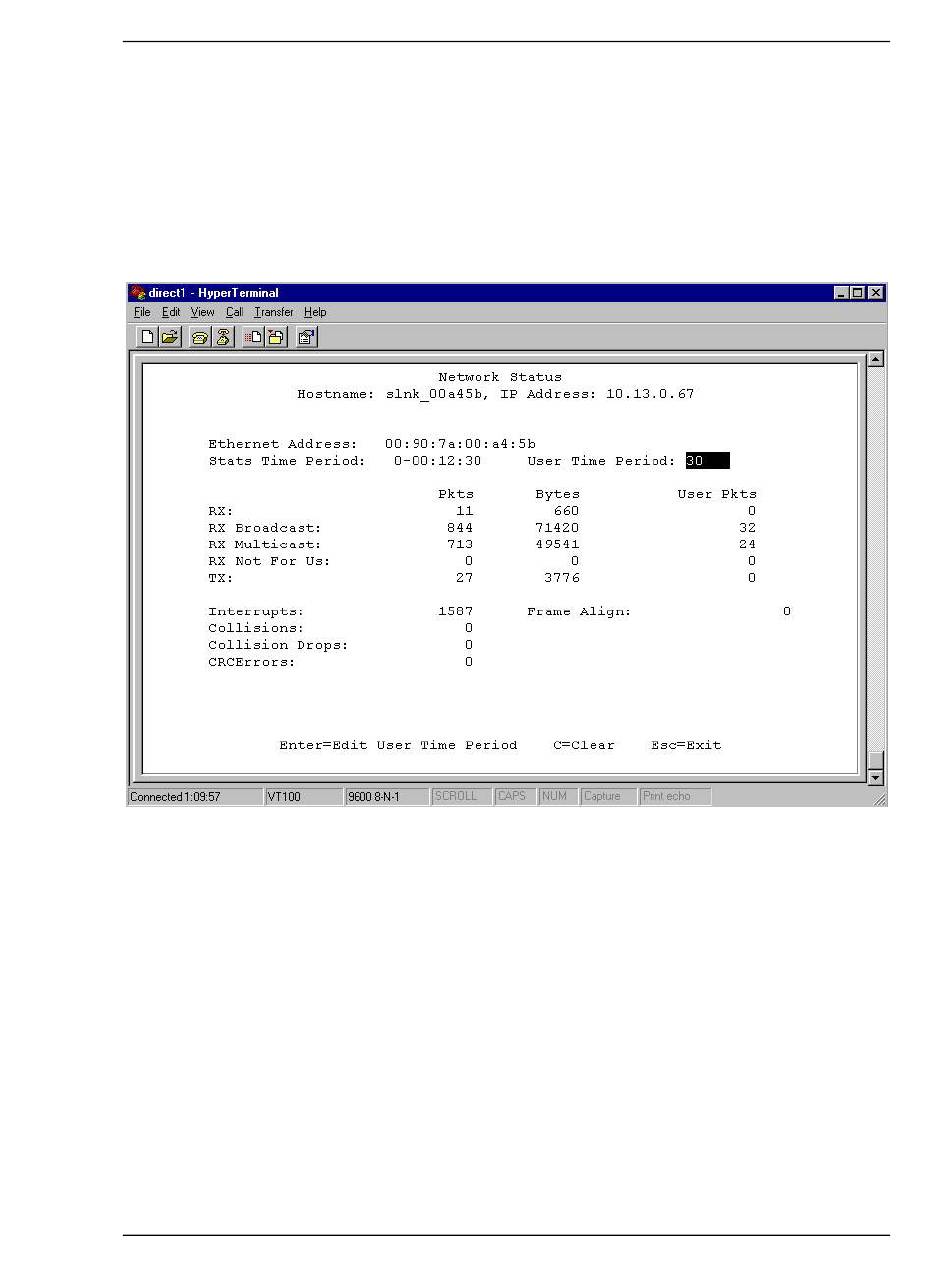

sample screen is displayed here.
Three items display at the top of the screen:
– MAC address of the NetLink OAI Gateway (hexadecimal).
Ethernet Address
– the length of time the statistics have been accumulating in the
Stats Time Period Pkts
and columns. This is either the system uptime, or the time since a user pressed
Bytes
while viewing this display.
C=Clear
– the length of time (in seconds) statistics will accumulate in the
User Time Period
column before resetting to zero. When troubleshooting a problem, use this
Userpkts
setting to isolate statistics for a given time period (for example, one hour). This is the
only field in this screen that can be changed by the user.
The rest of the display is a table of Ethernet statistics. The and columns
Pkts User Pkts
list the count of Ethernet packets received or transmitted. The column is the count
Bytes
of bytes received or transmitted during the amount of time indicated by Stats Time.
