6. Layout Guidelines
The integrator of the CC3120MOD module must comply with the PCB layout recommendations
described in the following subsections to preserve/minimize the risk with regulatory certifications for
FCC, IC, CE, MIC, and SRRC. Moreover, TI recommends customers follow the guidelines described in this
section to achieve similar performance.
6.1 Board Layout
The reference layout consists of a 2 layer design. Figure 6‐1 shows BOOSTXL‐CC3120MOD Top layer.
Figure 6‐2 shows the BOOSTXL‐CC3120MOD Bottom layer.

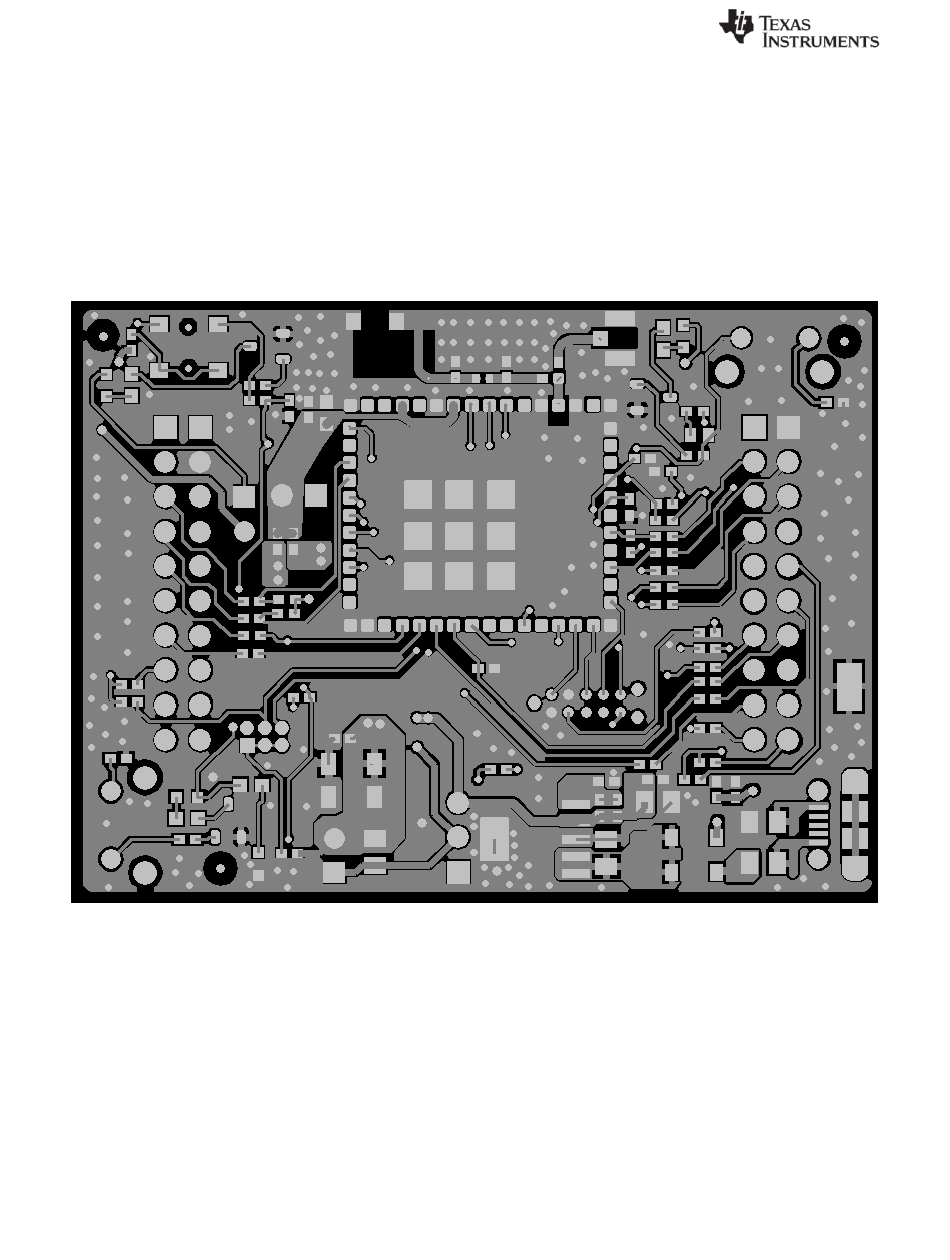

Figure 6‐1: BOOTXL‐CC3120MOD Top Layer
