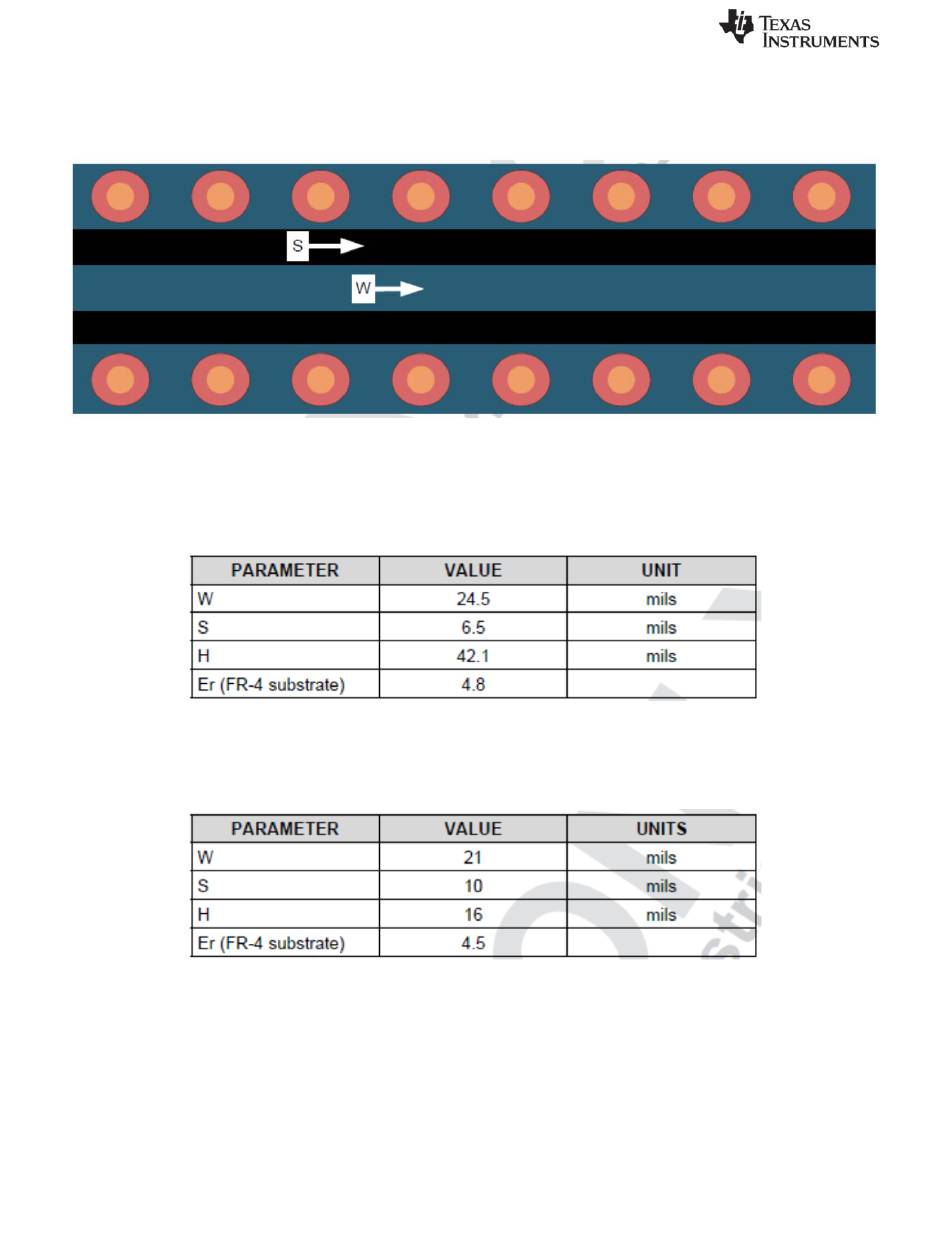

Figure 6‐6 shows the top view of the coplanar waveguide with GND and via stitching.
The recommended values for the PCB are provided for 2‐layer boards it Table 6‐3 and 4‐layer boards in
Table 6‐4.
Table 6‐3: Recommended PCB Values for 2‐Layer Board (L1 to L2 =42.1 mils)
Table 6‐4: Recommended PCB Values for 4‐layer Board (L1 to L2 = 16 mils)
7. BOOSTXL‐CC3120MOD Operational Setup and Testing
The SimpleLink Wi‐Fi CC3120MOD wireless network processor provides the flexibility to add Wi‐Fi to any
microcontroller (MCU). This user guide explains the various configurations of the CC3120MOD
Figure 6‐6: CPW with GND and via stitching (Top view)
