2.1 Connectors and Jumpers
Table 2‐1 lists the push‐buttons on the BOOSTXL‐CC3120MOD
Reference Usage
SW1 Factory Reset
SW2 RESET
SW3 nHIB
Table 2‐2 lists the LEDs on the BOOSTXL‐CC3120MOD
Reference Colour
D5 RED
D1 Yellow
D6 Green
D7 Red

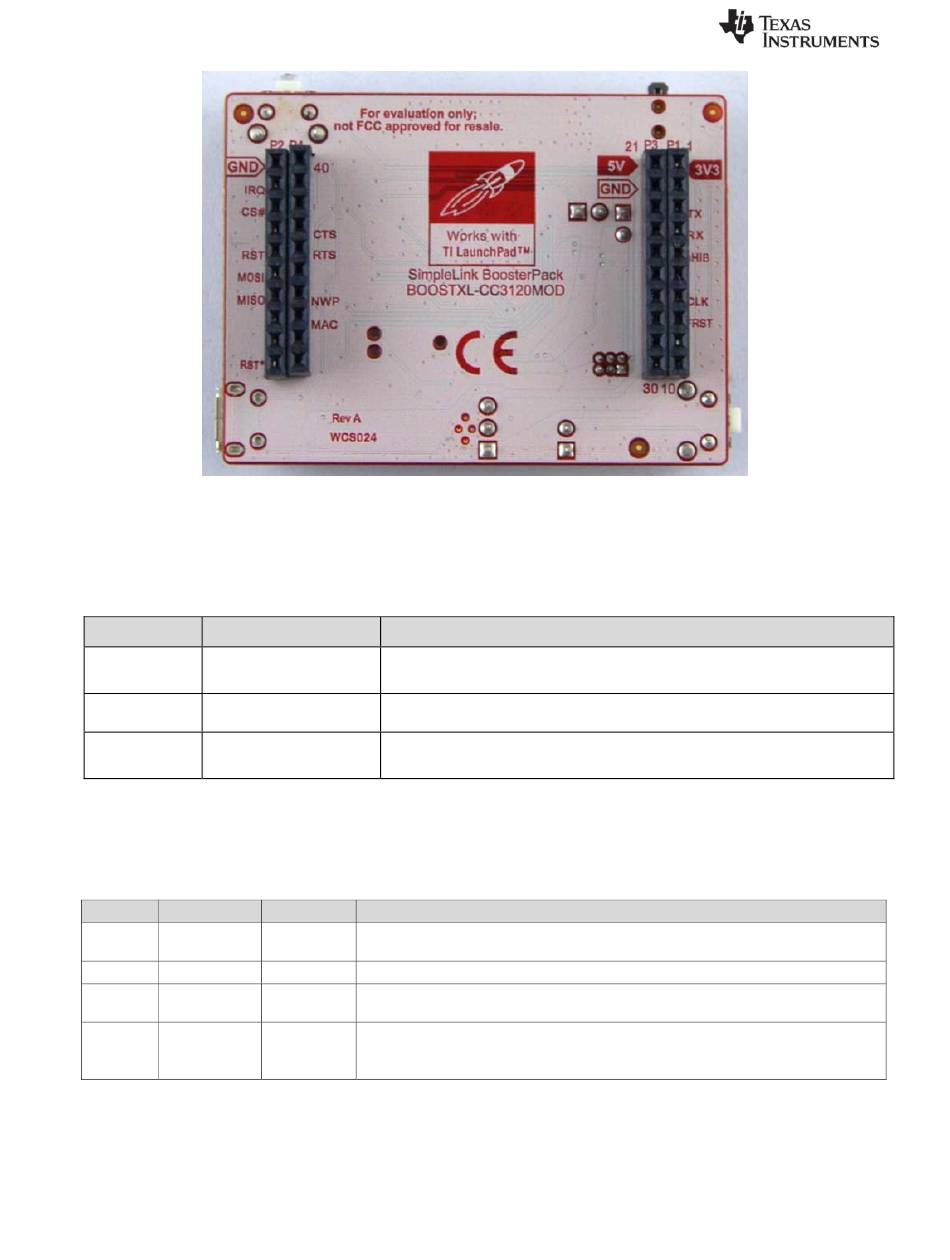

Figure 2‐2: BOOSTXL‐CC3120MOD Bottom View
Comments
This is used to restore the serial flash to the factory default image. Hold the
button pressed and then toggle the RESET push button.
This can be used to Reset the device. Holding the button down sets the device
to the shutdown state.
This boots the device to the bootloader RMe for flashing the firmware over a
universal asynchronous receiver/transmitter (UART).
Table 2‐1: BOOSTXL‐CC3120MOD push‐buttons
Usage Comments
PWR ON, when the 3.3 V power is provided to the board.
indication
nRESET This LED indicates the state of the nRESET pin. If this LED is glowing, the device is
f ti l
nHIB This LED indicates the state of the nHIB pin. When the LED is OFF, the device is in
hibernate state.
Factory This LED indicates if the Factory default switch is pressed ON. Note that the RESET
button needs to be pressed for this LED to function.
Default
Table 2‐2: BOOSTXL‐CC3120MOD LEDs
