BOOSTXL-ADS1219 BoosterPack™ User's Guide

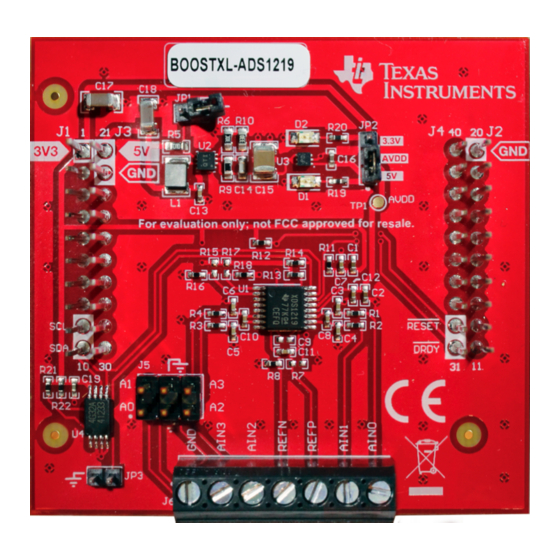

Figure 1. ADS1219 Evaluation Module (BOOSTXL-ADS1219)
The ADS1219 BoosterPack™ plug-in module (BOOSTXL-ADS1219) allows users to evaluate the
functionality of the ADS1219. The ADS1219 is a 24-bit, delta-sigma, analog-to-digital converter (ADC) that
can be configured as four single-ended inputs or as two differential input pairs. Data rates range from 20
SPS up to 1000 SPS. Processors can communicate to the ADS1219 though an I
This user's guide includes a detailed description of the hardware (HW), bill of materials (BOM), schematic,
and software GUI when using the LaunchPad™ MSP-EXP432E401Y.
SBAU316 – August 2018
Submit Documentation Feedback
Table 1. Related Documentation
Device
ADS1219
MSP-EXP432E401Y
Copyright © 2018, Texas Instruments Incorporated
2
C interface.
Literature Number
SBAS924
SLAU748
BOOSTXL-ADS1219 BoosterPack™ User's Guide
User's Guide
SBAU316 – August 2018
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments BOOSTXL-ADS1219 BoosterPack
Summary of Contents for Texas Instruments BOOSTXL-ADS1219 BoosterPack
-
Page 1: Ads1219 Evaluation Module (Boostxl-Ads1219)
This user's guide includes a detailed description of the hardware (HW), bill of materials (BOM), schematic, and software GUI when using the LaunchPad™ MSP-EXP432E401Y. Table 1. Related Documentation Device Literature Number ADS1219 SBAS924 MSP-EXP432E401Y SLAU748 SBAU316 – August 2018 BOOSTXL-ADS1219 BoosterPack™ User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 2: Table Of Contents
................ MSP432E401Y Port to BoosterPack™ Interface ......................Bill of Materials Trademarks BoosterPack, LaunchPad are trademarks of Texas Instruments. Windows is a registered trademark of Microsoft. BOOSTXL-ADS1219 BoosterPack™ User's Guide SBAU316 – August 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 3: Introduction
C interface for the ADS1219 device configuration and communication. Figure 2 shows the BOOSTXL-ADS1219 EVM architecture along with key components and blocks listed in the features. Figure 2. Block Diagram SBAU316 – August 2018 BOOSTXL-ADS1219 BoosterPack™ User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 4: Quick Start
2.2.3 Choose the Firmware File and Flash the LaunchPad™ The firmware file is located in the folder Program Files (x86)\Texas Instruments\ADS1219\firmware. Use the Browse button to browse to folder containing the firmware binary file. The firmware file can also be dragged and dropped into the browse window provided in UniFlash. -
Page 5: Launchpad™ And Boosterpack™ Combo
Program Files (x86)/Texas Instruments/ADS1219/drivers. Step 4 From the Windows Start menu, go to the Texas Instruments folder and under ADS1219 start the GUI application. The communication should automatically connect. If the hardware does not connect, manually try to make the connection by clicking on the connect icon in the lower left portion of the GUI. -
Page 6: Boostxl-Ads1219 Hardware Overview
Analog reference input REFN J6:5 Analog reference input REFP J6:6 Analog input for A1 of the ADC J6:7 Analog input for A0 of the ADC BOOSTXL-ADS1219 BoosterPack™ User's Guide SBAU316 – August 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 7: Msp432E401Y Port To Boosterpack™ Interface
MSP-EXP432E401Y GPIO Port SCL (PN5 - Output) J1:9 SDA (PN4 - Input/Output) J1:10 RESET (PK6 - Output) J4:32 DRDY (PK7 - Input) J4:31 SBAU316 – August 2018 BOOSTXL-ADS1219 BoosterPack™ User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 8: Setup Details
TI cloud agent must be installed. Follow all instructions by downloading and installing the correct cloud version for the operating system being used. BOOSTXL-ADS1219 BoosterPack™ User's Guide SBAU316 – August 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 9: Uniflash: New Coniguration
1. In the UniFlash program start a New Configuration by selecting the MSP-EXP432E401Y LaunchPad™ from the drop down list as shown in Figure Figure 7. UniFlash: New Coniguration 2. The Selected Connection happens automatically to Texas Instruments XDS110 USB Debug Probe as seen in Figure 8, then press Start. -
Page 10: Uniflash: Browse To Firmware
3. From the Program tab, Browse to the Flash Image to be installed, as shown in Figure 9. The flash binary file is found under the Program Files (x86)\Texas Instruments\ADS1219\fimware folder. Figure 9. UniFlash: Browse to Firmware 4. When the flash binary image file is located, press the Load Image button to start the firmware... -
Page 11: Uniflash: Successful Download
Load Image button again. You may have to unplug and plug the USB cable to the LaunchPad™ again to reset communication. Figure 11. UniFlash: Successful Download SBAU316 – August 2018 BOOSTXL-ADS1219 BoosterPack™ User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 12: Ads1219 Boosterpack™ Gui Operation
If the driver shows as unknown, manually install the driver from Program Files (x86)/Texas Instruments/ADS1219/drivers. Go to the Control Panel and select Device Manager. Right click on the unknown device and select Update driver. Choose the selection Browse my computer for driver software. -
Page 13: Home Page
14) shows a minimal view of the startup procedure to get the system up and running. For specific details see Section Figure 14. Quick Start Page SBAU316 – August 2018 BOOSTXL-ADS1219 BoosterPack™ User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 14: Settings Page
ADS1219. If another reference source is used, update the reference voltage box to accurately display the voltage value determined at the ADC input. BOOSTXL-ADS1219 BoosterPack™ User's Guide SBAU316 – August 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 15: Register Map Page
Information regarding the selections and options can be displayed by using the cursor to hover over the various options. Figure 17. Register Map Page SBAU316 – August 2018 BOOSTXL-ADS1219 BoosterPack™ User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 16: Bill Of Materials, Pcb Layout, And Schematic
CAP, CERM, 22 uF, 25 V, +/- 20%, TMK325B7226MM-TR Taiyo Yuden X7R, 1210 C17, C18 CAP, CERM, 10 uF, 16 V, +/- 10%, GRM319R61C106KE15D MuRata X5R, 1206 BOOSTXL-ADS1219 BoosterPack™ User's Guide SBAU316 – August 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... - Page 17 0, 0402 R15, R17 RES, 10 k, 5%, 0.1 W, AEC-Q200 ERJ-2GEJ103X Panasonic Grade 0, 0402 SH-JP3 Shunt, 2mm, Gold plated, Black 2SN-BK-G Samtec SBAU316 – August 2018 BOOSTXL-ADS1219 BoosterPack™ User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
-
Page 18: Top Silkscreen
Bill of Materials, PCB Layout, and Schematic www.ti.com PCB Layout Figure 19 Figure 22 depict the BOOSTXL-ADS1219EVM PCB layout. Figure 19. Top Silkscreen Figure 20. Top Layer BOOSTXL-ADS1219 BoosterPack™ User's Guide SBAU316 – August 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 19: Bottom Layer
Bill of Materials, PCB Layout, and Schematic www.ti.com Figure 21. Bottom Layer Figure 22. Bottom Silkscreen SBAU316 – August 2018 BOOSTXL-ADS1219 BoosterPack™ User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 20: Boostxl-Ads1219 Schematic
Version control disabled Assembly Variant: Sheet: warrant that this design will meet the specifications, will be suitable for your application or fit for any particular purpose, or will operate in an implementation. Texas Instruments and/or its Drawn By: Benjamin/Mendez File: DC023_Schematic.SchDoc... - Page 21 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
