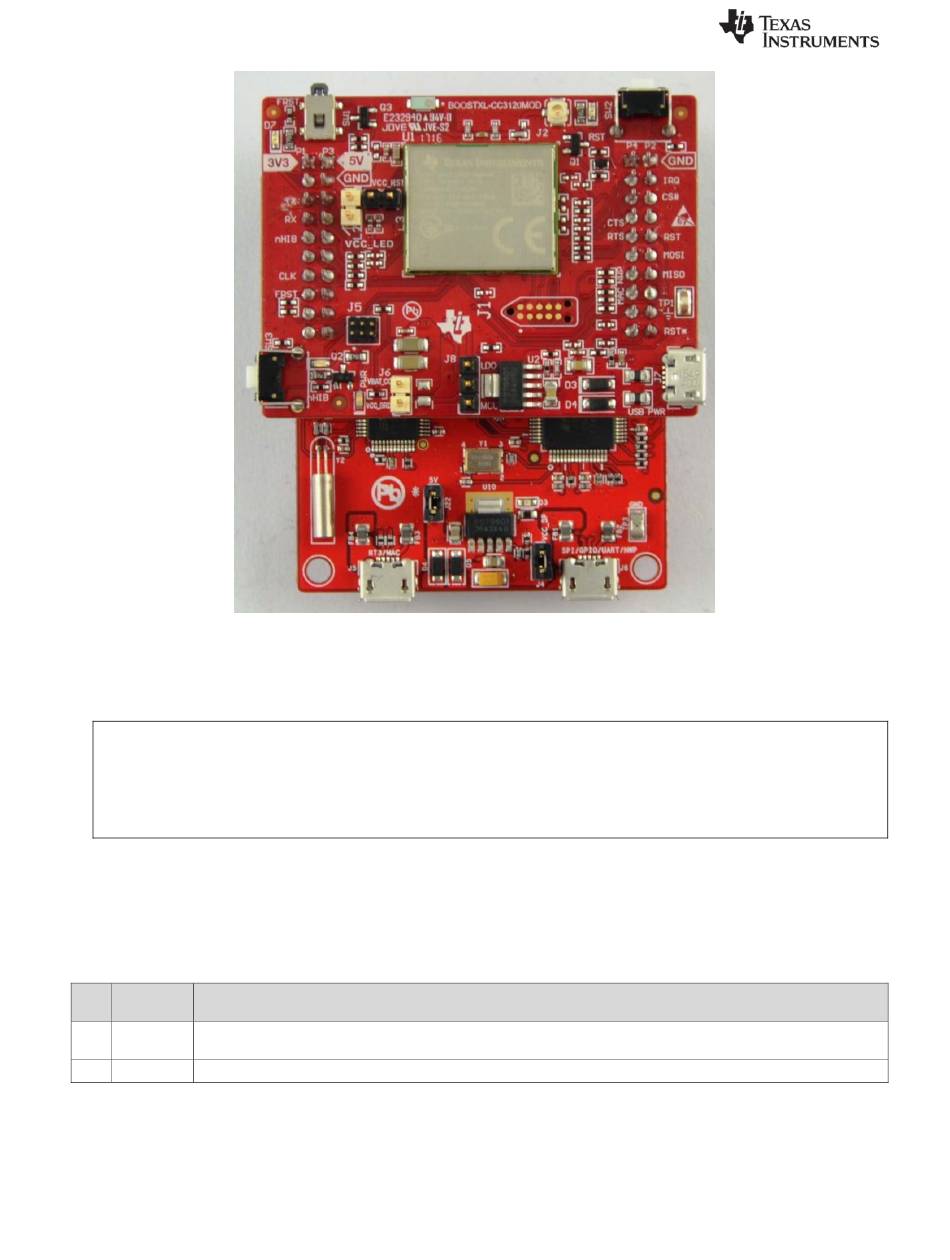

Figure 7‐8: BOOSTXL‐CC3120MOD Connected to CC31XXEMUBOOST
Align pin 1 of the boards together using the triangle marking on the PCB. An incorrect connection
can permanently destroy the boards. Ensure that none of the header pins are bent before
connecting the boards.
7.5.3
BOOSTXL‐CC3120MOD Jumper Settings
Table 7‐3 specifies the jumpers to be installed on the BOOSTXL‐CC3120RM before pairing with the
EMUBOOST board
Jumper
No
Notes
Settings
1
J8 (1-2)
Power the BoosterPack from the EMU BOOST. The jumper shall be placed so that it is nearer to the edge of
the PCB.
3
J6 (short)
No current measurement.
CAUTION
Table 7‐3: BOOSTXL‐CC3120MOD Jumper Settings
