7.3

Clocking

All of the required clocks are inside the module. There is no need to supply any external clock.

7.4
Performing Conducted Tests
The BoosterPack board by default ships with the RF signal connected to the onboard chip antenna.
Figure 7‐5 shows that there is a U.FL connector on the board that can be used for conducting testing or
to connect an external antenna. This requires a board modification (mounting C4 and depopulating C5)
as shown in Figure 7‐5.

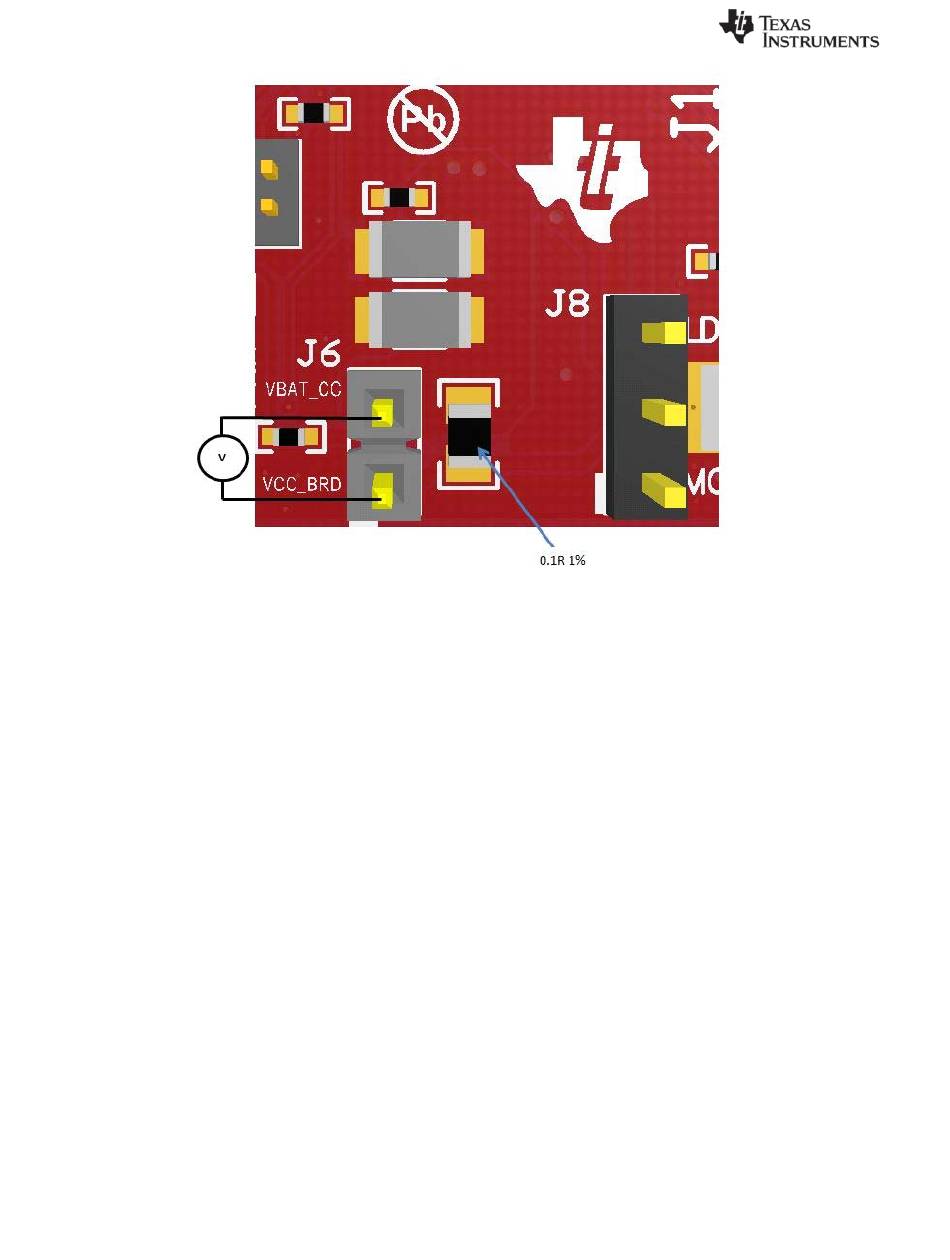

Figure 7‐4: Active Current Measurement
