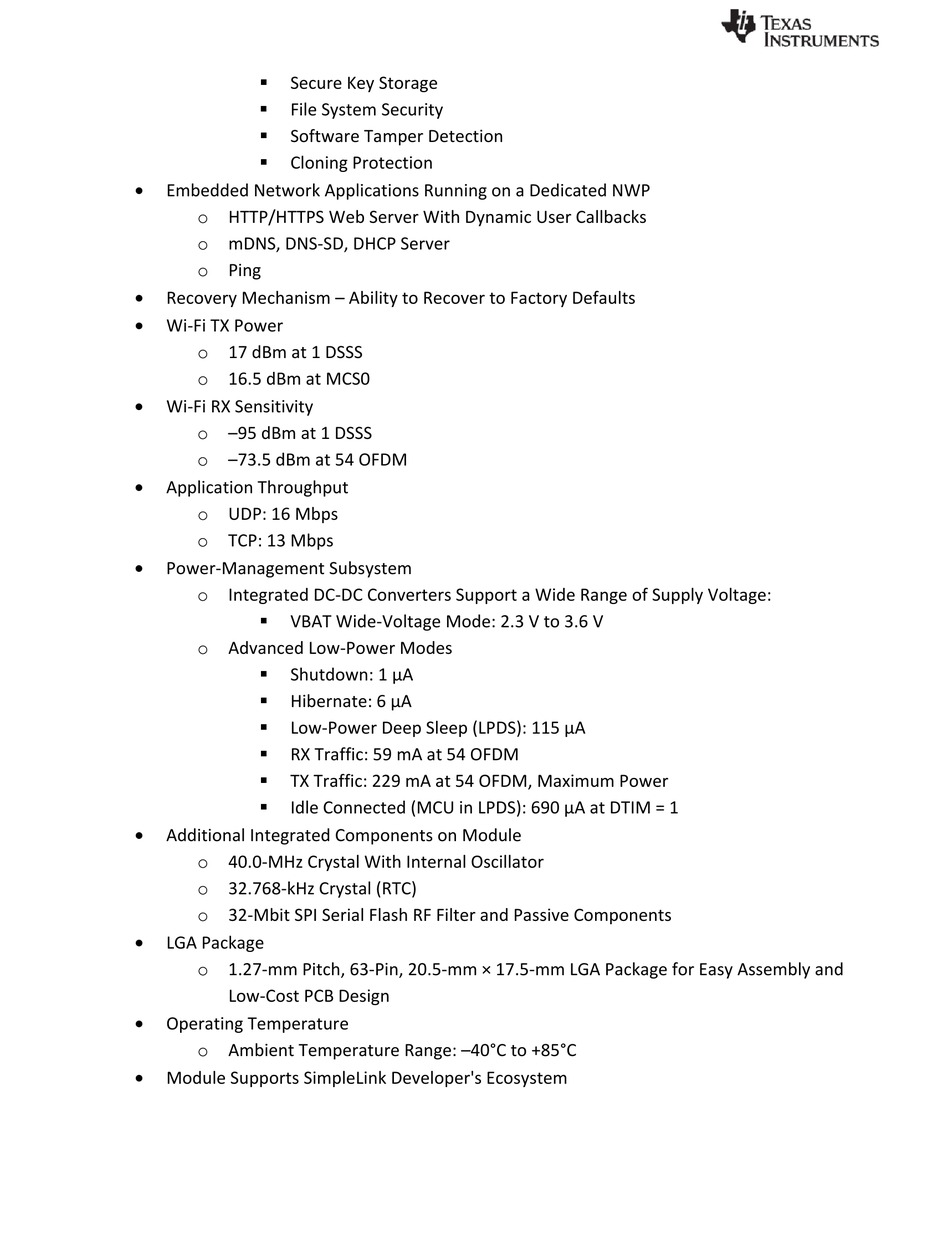

Texas Instruments SimpleLink BoosterPack BOOSTXL-CC3120MOD Manual page 9


Secure Key Storage

File System Security

Software Tamper Detection

Cloning Protection

Embedded Network Applications Running on a Dedicated NWP
o HTTP/HTTPS Web Server With Dynamic User Callbacks
o mDNS, DNS‐SD, DHCP Server
o Ping

Recovery Mechanism – Ability to Recover to Factory Defaults

Wi‐Fi TX Power
o 17 dBm at 1 DSSS
o 16.5 dBm at MCS0

Wi‐Fi RX Sensitivity
o –95 dBm at 1 DSSS
o –73.5 dBm at 54 OFDM

Application Throughput
o UDP: 16 Mbps
o TCP: 13 Mbps

Power‐Management Subsystem
o Integrated DC‐DC Converters Support a Wide Range of Supply Voltage:

VBAT Wide‐Voltage Mode: 2.3 V to 3.6 V
o Advanced Low‐Power Modes

Shutdown: 1 μA

Hibernate: 6 μA

Low‐Power Deep Sleep (LPDS): 115 μA

RX Traffic: 59 mA at 54 OFDM

TX Traffic: 229 mA at 54 OFDM, Maximum Power

Idle Connected (MCU in LPDS): 690 μA at DTIM = 1

Additional Integrated Components on Module
o 40.0‐MHz Crystal With Internal Oscillator
o 32.768‐kHz Crystal (RTC)
o 32‐Mbit SPI Serial Flash RF Filter and Passive Components

LGA Package
o 1.27‐mm Pitch, 63‐Pin, 20.5‐mm × 17.5‐mm LGA Package for Easy Assembly and
Low‐Cost PCB Design

Operating Temperature
o Ambient Temperature Range: –40°C to +85°C

Module Supports SimpleLink Developer's Ecosystem
