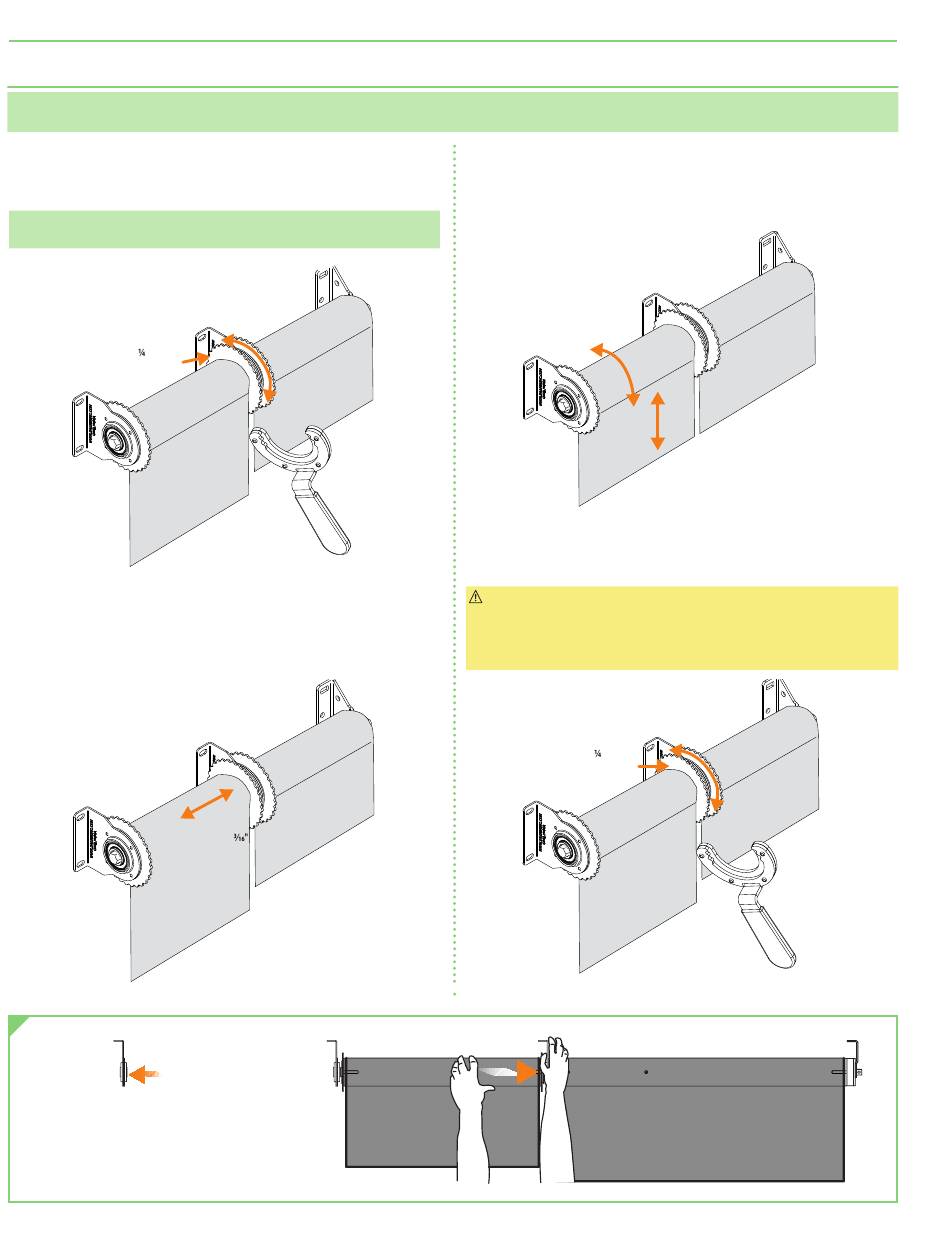

Section 7 - Fabric/Roller Assembly Alignment

Please Note: If needed, the fabric panel heights can be adjusted so that the bottom edges of the fabric panels are aligned. On large units, this procedure should be
done on only one panel at a time to minimize the amount of fabric weight that must be supported during the adjustment procedure.
1. Unlock height adjuster mechanism
operator end of fabric roller assembly being adjusted by using the included
Spanner to rotate the metal ring about ¼ turn counterclockwise when
viewing the face of the coupler assembly
Please note: Do not use this procedure to adjust the operator-end assembly.
Use the limits to set the down travel of the operator-end assembly.
Unlock coupler
shaft receiver
by rotating the
metal ring
approx. -turn
counterclockwise.
2. Push the fabric/roller assembly you are adjusting toward the operator-
end of the unit. The fabric/roller assembly you are pushing will move
approximately 3/16" toward the operator end
Push the fabric/roller
assembly approx.
toward the operator
end of the unit.
Figure 12
Location of next panel
®
(Coupled)
located at the
(or coupler shaft receiver)
.
(Fig. 8)
LOCK
UNLOCK
Figure 8
.
(Figs. 9 and 12)
Figure 9
(Steps are shown for right-hand operators)
3. Rotate the fabric/roller assembly being adjusted in either direction to raise or
lower the fabric panel
4. Allow the fabric/roller assembly being adjusted to move back away from the
operator end of the unit, and check the position of the fabric panels.
Rotate the
fabric/roller
assembly being
adjusted to adjust
the fabric length.
5. Tighten the locking ring by using the included Spanner to rotate it
approximately ¼ turn clockwise
6. Operate the unit to check for proper fabric position, tracking, etc.
Caution: Make sure the locking ring on the idler end coupler assembly is
fully tightened following height adjustment. Make sure you use the included
Spanner to grip the locking ring. Tighten the locking ring until it is fully
locked and you cannot rotate it any further. Check to make sure is it tight
and will not work loose.
Tighten the locking ring
by firmly rotating it
approximately -turn
clockwise
(reverse of step 1)
Operator Panel
page 6 of 10
.
