Dual Roller Motorized FlexShade
(Large Hardware)

Overview - Components

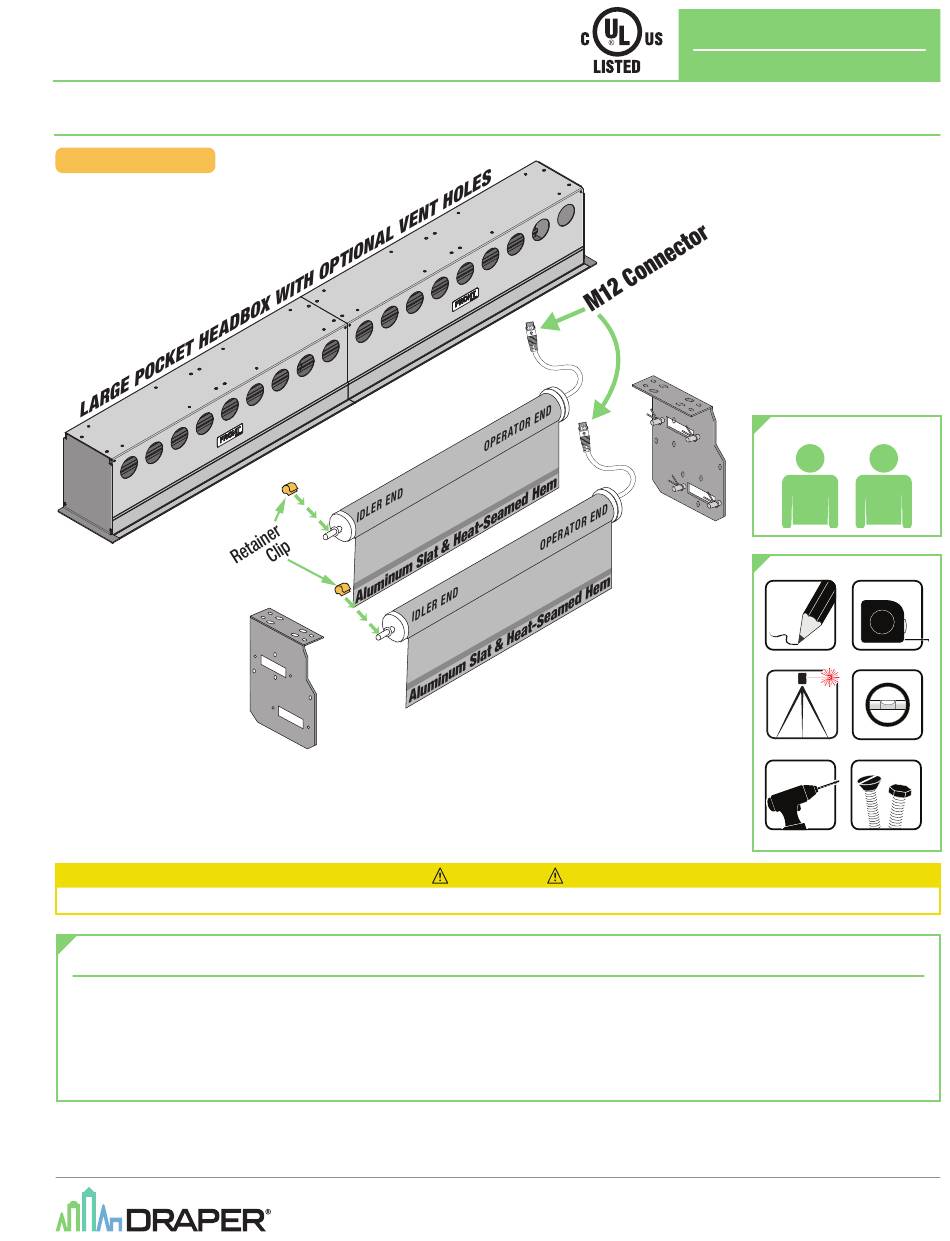

FLEXSHADE DHMO
Read and understand all warnings
Contents
Overview - Components .......................................................................................1
Section 1 - Mounting Brackets ...........................................................................3
Section 2 - Pocket Headbox Installation ...........................................................4
B R
A C K
E T
®
CAUTION
before beginning installation.
(Page 2 of this document)
Section 3 - Installing Closure Panel ...................................................................5
Section 4 - Limit Switch Adjustments ...............................................................6
Section 5 - Large Hardware Dimensions ..........................................................7
Section 6 - Electrical Connections ................................................................. 7-9
Dual Roller FlexShade
© 2021 All Rights Reserved
INSTRUCTIONS
INSTALLATION & OPERATION
PERSONNEL REQUIRED
1
B R
A C K
E T
TOOLS REQUIRED
PENCIL
LASER LEVEL
POWER DRILL
If you have any difficulties installing or servicing your
with Pocket Headbox, call your dealer or Draper, Inc.
®
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
|
FORM: DR_FS_MO_Large_Hardware_Inst21
2
TAPE MEASURE
LEVEL
HARDWARE
(by others)
