Motorized FlexShade

Section 5 - Attaching Fascia to Endcaps

1. Place groove along top of fascia over endcaps, and snap into place
Endcaps must be installed the correct distance apart for fascia to be properly attached
with full engagement. Fascia is not fully seated until it clicks into place on both ends.
Once in place, check for secure fit. If not secure, use an appropriate fastener
Reverse Roll Fascia
1. Slide endcaps into extrusions.
2. Using provided holes in endcaps, mark the fascia for drilling.
3. Attach endcaps to fascia.
4. Mount Endcaps/Reverse Roll Fascia.
5. Install roller/fabric/operator assembly according to relevant instructions.
6. Attach endcap covers to endcaps. Use double-sided tape to help secure in place.

Section 6 - Surface Headbox or Pocket Headbox

1. Snap endcap covers onto endcaps.
2. Slide endcaps into the top/back portion of surface headbox or into pocket extrusion
of large pocket headbox. Using provided holes in endcaps, mark headbox for drilling.
Please Note: The installer is responsible for selecting mounting hardware appropriate for site
conditions.
Caution: Before mounting shades, verify measurements on the provided with
shade,
and ensure endcaps are installed at correct width.
3. Drill holes in back or top
(wall mount)
4. Attach endcaps and Surface Headbox back/top or Large Pocket Headbox extrusion to wall,
ceiling or pocket using mounting hardware appropriate for site conditions.
5. Install shade
(See Section 4.1 - Mounting Endcaps for Fascia)
6. Attach headbox fascia or pocket closure
Note on surface style headbox:
Fascia is not fully seated until it clicks into place on both ends. Once in place,
check for secure fit. If not secure, use an appropriate fastener
®
(Coupled)
(See Section 4.2 - Attaching Fascia to Endcaps Step 1)
, of or in a pocket.
(ceiling mount)
.
.
(Fig. 7)
(not included)
.
(Fig. 5)
.
(not included)

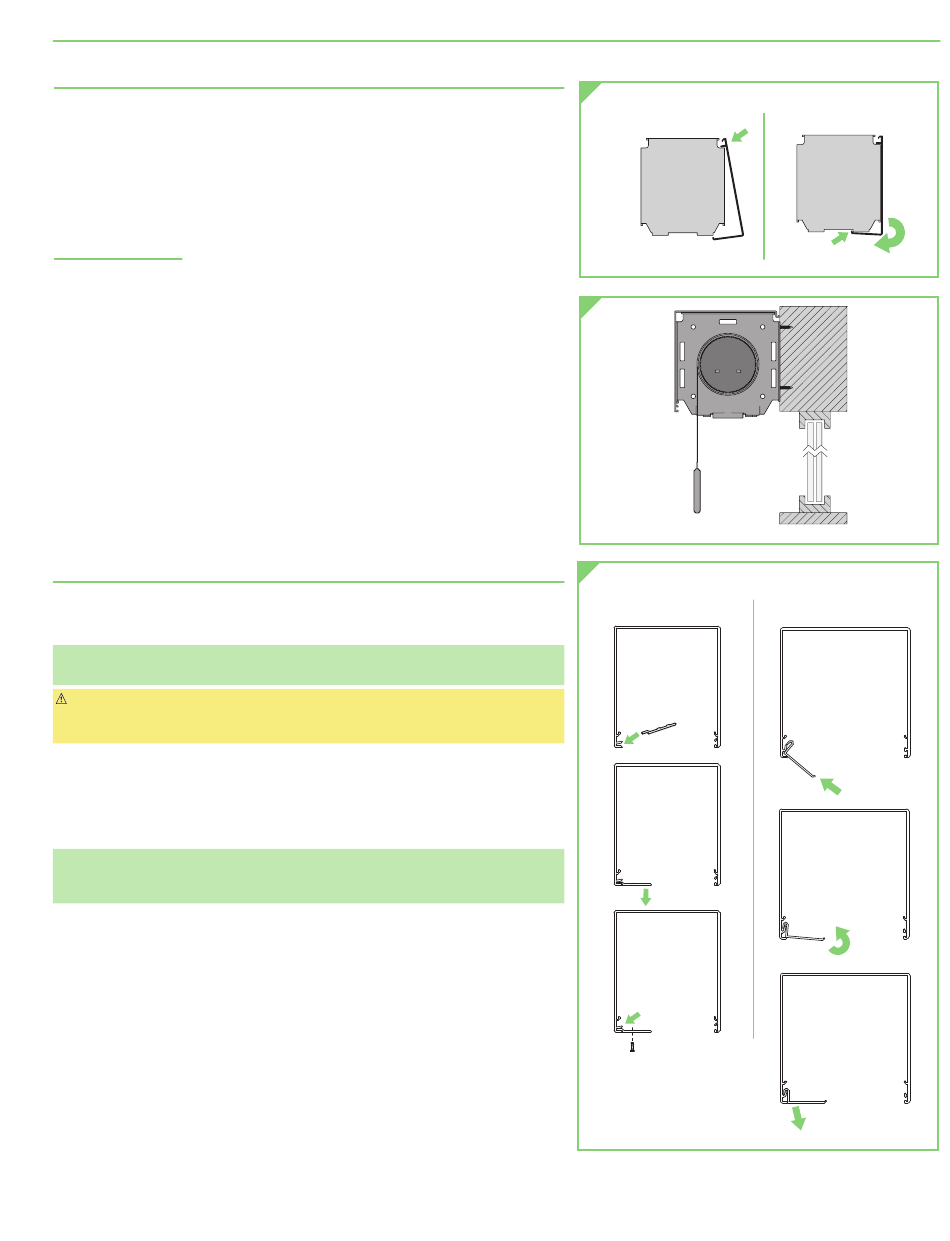

Figure 5
Figure 6
ATTACHING CLOSURE PANEL
.
Small Pocket Headbox
Figure 7
Fascia Attachment Small & Large Endcaps
ATTACHING FASCIA
STEP 2:
STEP 1:
ENDCAP ENDCAP
Clicks into place
Large Pocket Headbox
STEP 1
STEP 2
STEP 3
Secure to Endcap
with Screw
page 5 of 10
ENDCAP ENDCAP
STEP 1
STEP 2
STEP 3
