Dual Roller Coupled
Motorized FlexShades

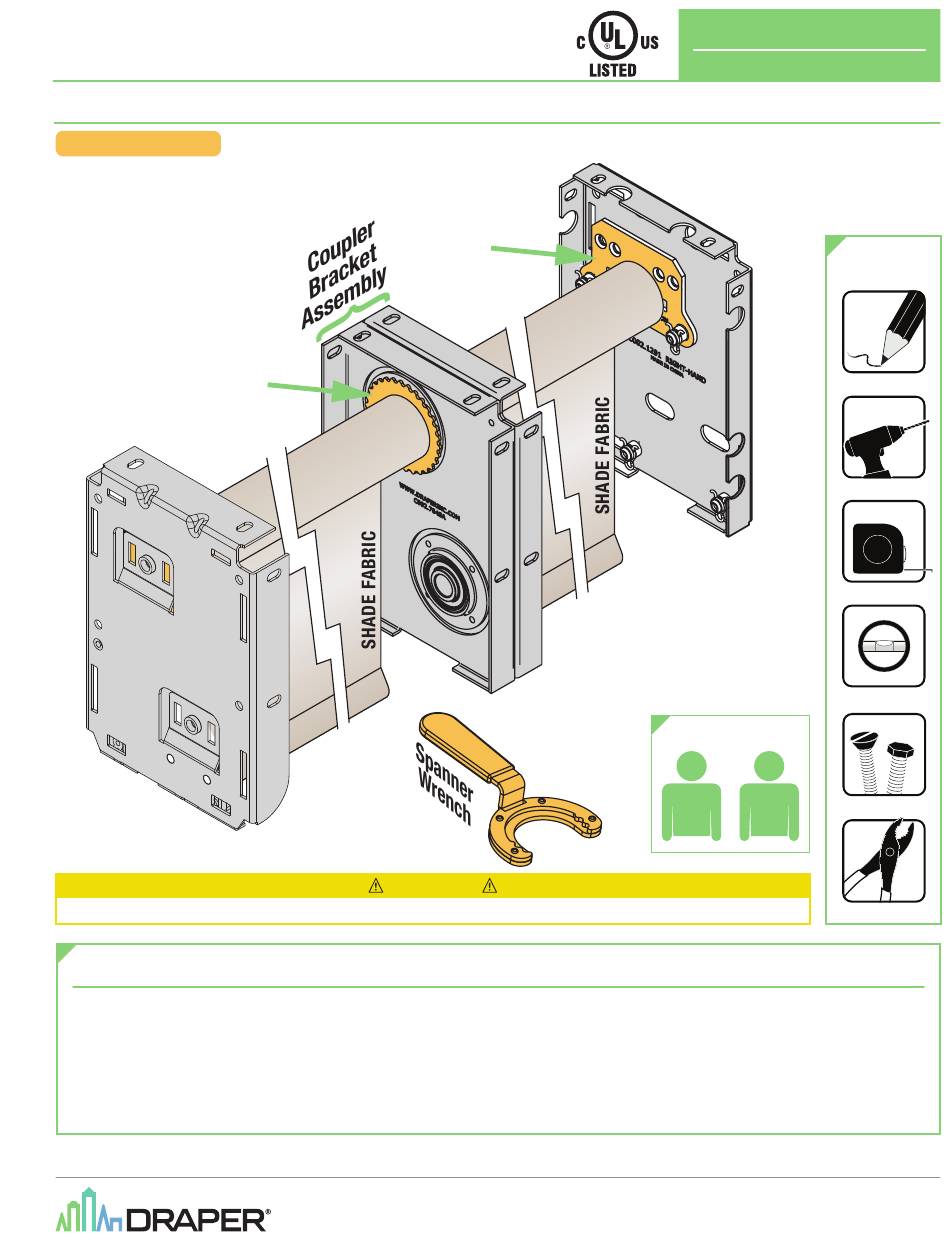

Overview - Components

FLEXSHADE F*MO
Locking
Ring
I d l e
r E n
B r a
d
c k e
t
Read and understand all warnings
Contents
Overview - Components .......................................................................................1
Section 1 - Idler-End and Operator End Assemblies ......................................3
®
(Standard Hardware)
CAUTION
(Page 2 of this document)
........................................................................................4
Motor
Plate
before beginning installation.
Section 3 - Fascia Attachment ............................................................................5
Section 4 - Fabric/Roller Assembly Alignment ................................................6
Section 6 - Electrical Connections ................................................................. 7-8
Section 7 - Dimensions .................................................................................. 9-10
Dual Roller Fascia Coupled FlexShades
© 2021 All Rights Reserved
INSTRUCTIONS
INSTALLATION & OPERATION
M o
t o r
B r a
E n d
c k e
t
PERSONNEL
REQUIRED
If you have any difficulties installing or servicing your
, call your dealer or Draper, Inc.
®
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
|
FORM: Coupled_DR_FS_MO_Standard_Hardware_Inst21
TOOLS
REQUIRED
PENCIL
POWER DRILL
TAPE MEASURE
LEVEL
HARDWARE
(by others)
PLIERS
