Motorized FlexShade

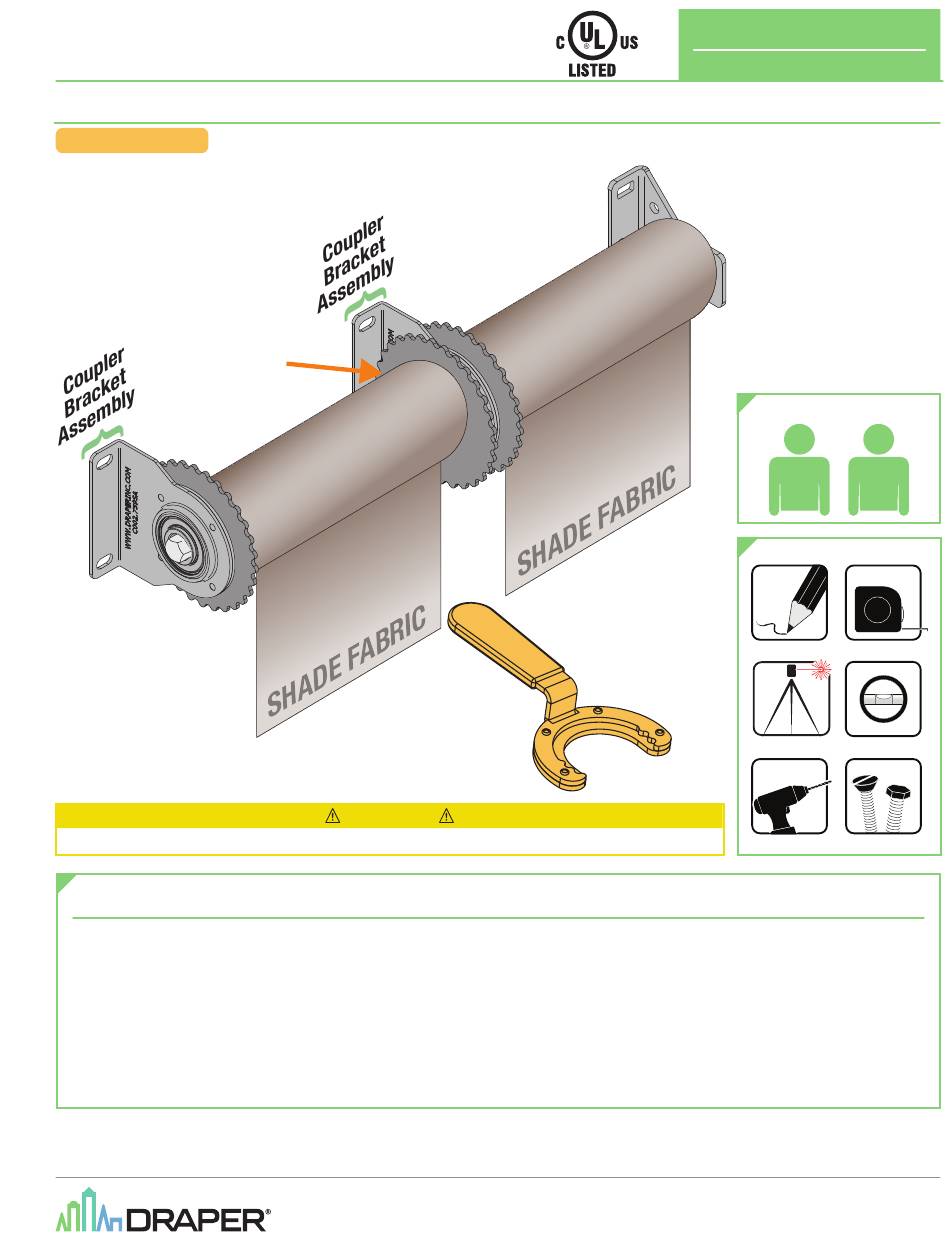

Overview - Components

FLEXSHADE C*MO
Locking
I d l e
r E
B r a
n d
c k e
t
Read and understand all warnings
Contents
Overview - Components .......................................................................................1
Section 1 - Operating the Retractable Coupler Shaft .....................................3
Section 2 - Operator End Bracket/Endcap Assembly.....................................3
Section 3 - Operator End Fabric/Roller Assembly...........................................4
Section 4 - Idler End Fabric/Roller Assembly ...................................................4
®
(Coupled)
Ring
CAUTION
(Page 2 of this document)
S p
a n
W r
n e
e n
r
c h
before beginning installation.
Section 5 - Attaching Fascia to Endcaps ..........................................................5
Section 6 - Surface Headbox or Pocket Headbox ...........................................5
Section 7 - Fabric/Roller Assembly Alignment ................................................6
Section 9 - Limit Switch Adjustments ...............................................................7
Section 10 - Electrical Connections ...................................................................8
Section 11 - Coupler Dimensions .....................................................................10
© 2021 All Rights Reserved
INSTRUCTIONS
INSTALLATION & OPERATION
M o
t o r
B r a
E n d
c k e
t
PERSONNEL REQUIRED
1
TOOLS REQUIRED
PENCIL
LASER LEVEL
POWER DRILL
If you have any difficulties installing or servicing your
Coupled FlexShade®, call your dealer or Draper, Inc.
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
|
FORM: FS_MO_CoupledFlexShade_Inst21
2
TAPE MEASURE
LEVEL
HARDWARE
(by others)
