Dual Roller 12V Battery FlexShade
No wiring or electrician, rechargeable motorized dual roller window shade

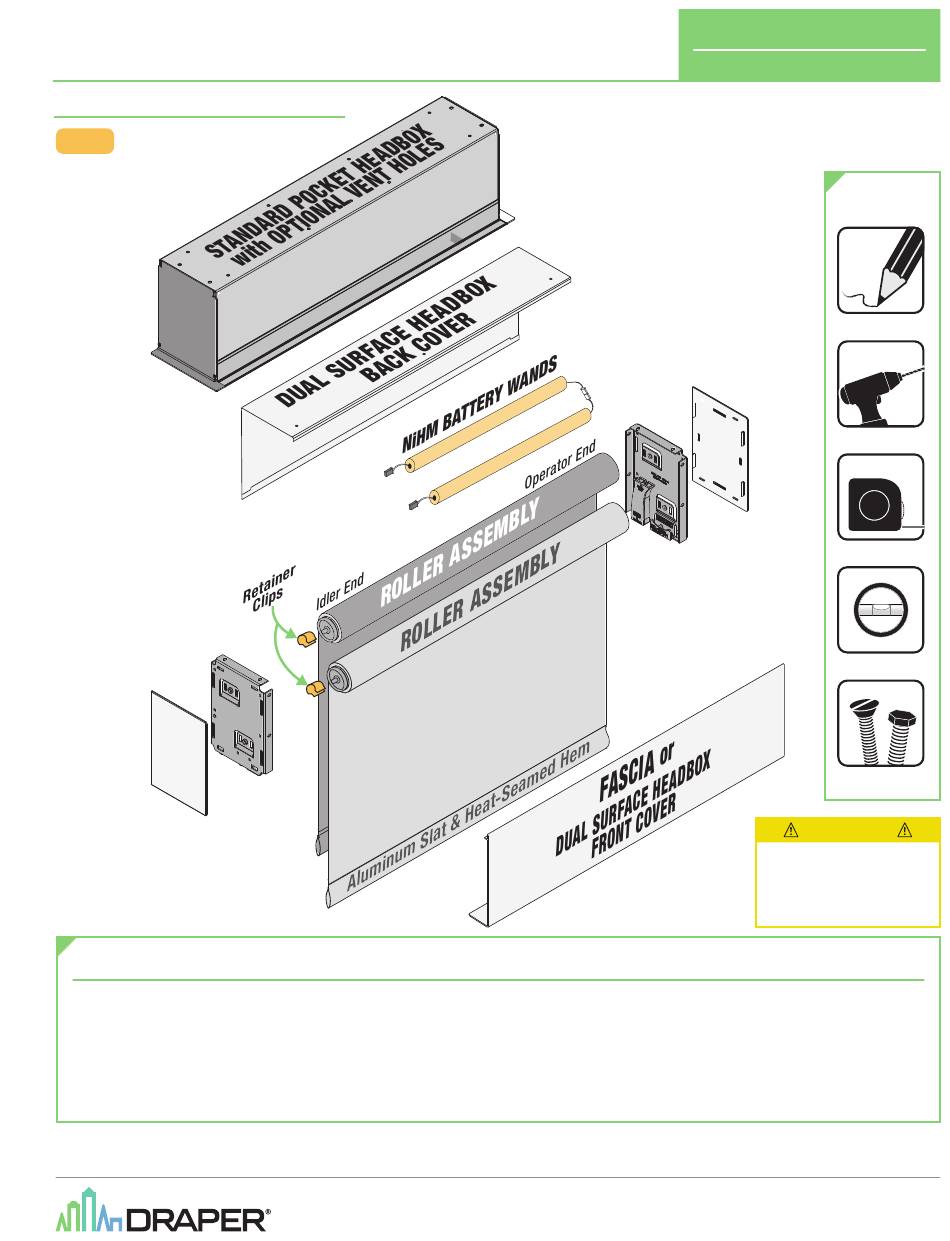

Overview - Components

DFBA
E N D
E N D
C A P
C O V
E R
Contents
Overview - Components .......................................................................................1
Section 2 - Installing Fascia ...............................................................................3
C A P
............................................................3
®
INSTALLATION & OPERATION
E N D
C A P
Section 3 - Dual Roller Surface Headbox Installation .....................................4
Section 4 - Pocket Headbox Installation ...........................................................5
Section 5 - Limit Switch Adjustments ...............................................................6
Section 6 - Standard Hardware Dimensions ....................................................7
Section 7 - Wiring Diagrams ................................................................................8
If you have any difficulties installing or servicing your
Dual Roller Battery FlexShade, call your dealer or Draper, Inc.
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
© 2022 All Rights Reserved
INSTRUCTIONS
TOOLS
REQUIRED
Pencil
E N D
C A P
C O V
E R
Power Drill
Tape Measure
Level
Hardware
(by Others)
CAUTION
Read and understand
all warnings
before
of this document)
beginning installation.
|
FORM: DR_FS_MO_Batt_12V_Inst22
(Page 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FlexShade and is the answer not in the manual?

Questions and answers

Related Manuals for Draper FlexShade

Summary of Contents for Draper FlexShade

  • Page 1: Table Of Contents

    Section 7 - Wiring Diagrams ................8 If you have any difficulties installing or servicing your Dual Roller Battery FlexShade, call your dealer or Draper, Inc. Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385 draperinc.com | 765.987.7999 | 800.238.7999 FORM: DR_FS_MO_Batt_12V_Inst22 ©...

  • Page 2: Please Read - Important Safety & Installation Information

    Most standard Draper fabrics may be cleaned at the window by vacuuming with a soft brush If the shade is telescoping, place a piece of high attachment. They also may be cleaned by using a sponge or soft cloth and mild solution of warm soapy quality gaffer tape about 1"...

  • Page 3: Section 1 - Mounting Endcaps (Brackets)

    Dual Roller 12V Battery FlexShade ® page 3 of 7 Section 1 - Mounting Endcaps (Brackets) Please Note: Installer is responsible for selecting ENDCAP ENDCAP mounting hardware appropriate for site conditions. COVER COVER 24V AND BATTERY 1. Snap endcap covers onto endcaps. The proper...

  • Page 4: Section 3 - Dual Roller Surface Headbox Installation

    Dual Roller 12V Battery FlexShade ® page 4 of 7 Section 3 - Dual Roller Surface Headbox Installation Figure 5-A Figure 5-B Place endcaps into top/back cover piece of surface headbox. Drill holes in back or top (wall mount) (ceiling mount)

  • Page 5: Section 4 - Pocket Headbox Installation

    Dual Roller 12V Battery FlexShade ® page 5 of 7 Section 4 - Pocket Headbox Installation Figure 6-A PLEASE NOTE: Installer must provide adequate clearance for removal of Roller Assembly during installation and maintenance. PLEASE NOTE: Headbox must be mounted directly to ceiling, or to a continuous blocking that is secured to building structure.

  • Page 6: Section 5 - Limit Switch Adjustments

    Dual Roller 12V Battery FlexShade ® page 6 of 7 Section 5 - Limit Switch Adjustments Caution: - Be sure all switches are in “off” position before adjusting limit switches. Be prepared to shut off manually while testing. - Shade may be damaged by running shade fabric down too far to expose roller.

  • Page 7: Section 6 - Standard Hardware Dimensions

    Dual Roller 12V Battery FlexShade ® page 7 of 7 Section 6 - Standard Hardware Dimensions Endcap & Fascia Dimensions 3" (27 mm) (76 mm) (27 mm) OVERALL WIDTH (121 mm) 3" ENDCAP (76 mm) FASCIA HEIGHT: FASCIA HEIGHT: "...
