Bottom-Up FlexShade
Small and Large Hardware
Premium manually-operated bottom-up shade

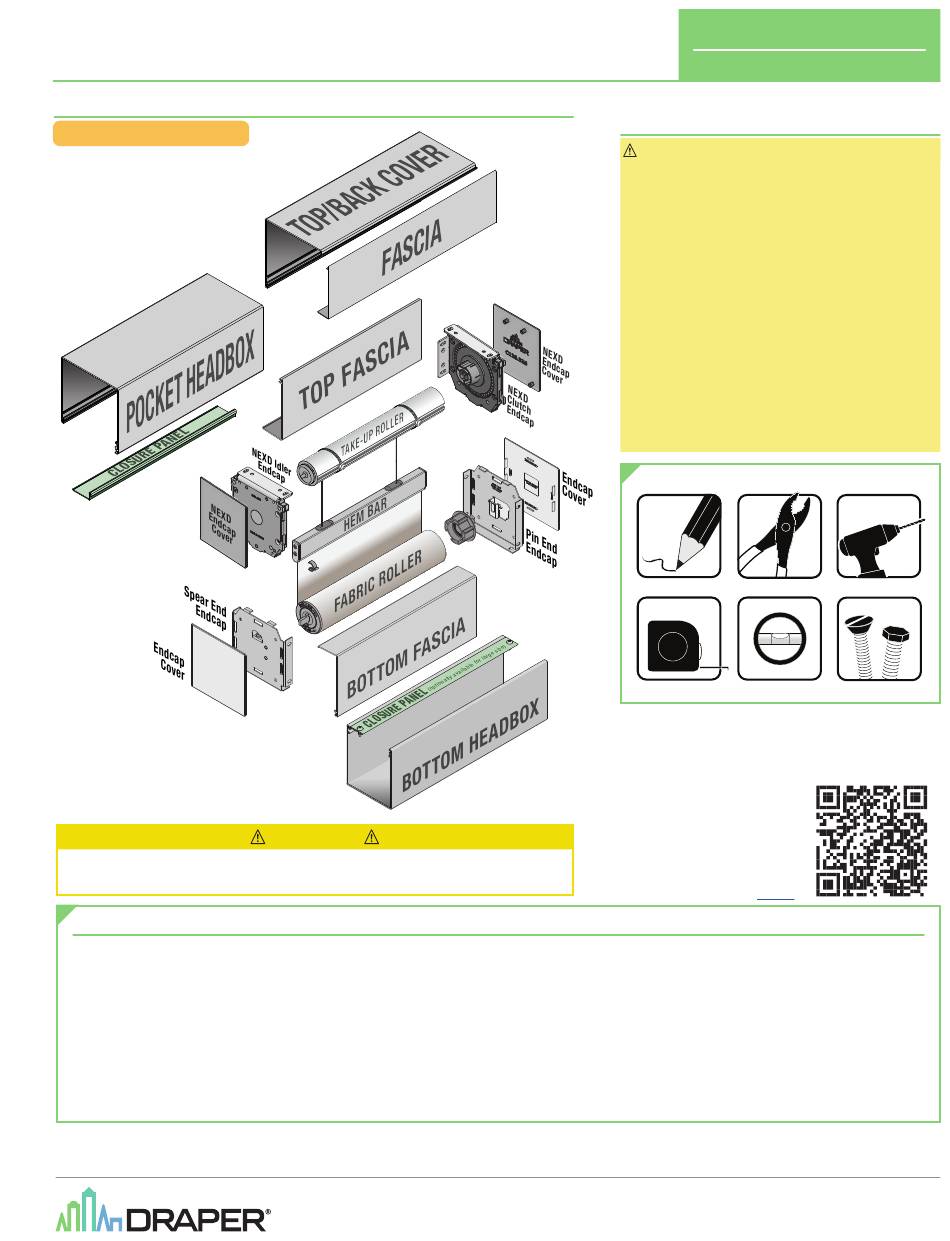

Overview - Components

FLEXBOTTOMUP NEXD
Read and understand all warnings
before beginning installation.
Contents
Overview - Components .......................................................................................1
PLEASE READ - Important Installation Information ........................................1
PLEASE READ - Important Safety Information .................................................2
Section 1 - Endcap Covers .................................................................................3
Section 2 - Mounting Endcaps ............................................................................3
Section 4 - Spring Assist Idler .............................................................................4
Section 5 - Pre-tensioning Bottom Roller .........................................................5
NEXD,
®
CAUTION
(Page 2 of this document)
INSTRUCTIONS
INSTALLATION & OPERATION
PLEASE READ -
Important Installation Information
Caution:
1. Inspect all boxes to make sure you have received the
proper shades and parts. Controls may be shipped
separately, or in same carton as shades.
2. Open cartons lengthwise, taking care not to cut into
cardboard shipping container.
3. Before mounting shades, verify measurements on
label provided with shade, and ensure unit is installed
at correct width.
4. All endcaps, fascia, pocket headbox, and other
hardware must be installed level. Shades must be
level and square.
5. Read the following installation guidelines
thoroughly and follow them carefully. Failure to
do so may cause product to fall or otherwise fail,
and invalidates warranty.
6. Installer is responsible for selecting mounting
hardware appropriate for site conditions.
TOOLS REQUIRED
PENCIL
TAPE MEASURE
Section 6 - Hem Bar ..............................................................................................5
Section 7 - Bottom Roller Assembly ..................................................................6
Section 8 - Installing Draw Cables ....................................................................6
Section 9 - Adjusting Fabric Tracking ................................................................7
Section 11 - Top/Back Cover Installation ..........................................................8
Section 12 - Headbox Installation .......................................................................9
Section 14 - Dimensions.....................................................................................10
If you have any difficulties installing or servicing your
Bottom-Up FlexShade
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
© 2021 All Rights Reserved
POWER DRILL
PLIERS
LEVEL
HARDWARE
............................................................7
NEXD, call your dealer or Draper, Inc.
®
|
FORM: Bottom-Up_FS_NEXD_Inst21
(by others)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FlexShade NEXD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Draper FlexShade NEXD

Summary of Contents for Draper FlexShade NEXD

  • Page 1: Table Of Contents

    If you have any difficulties installing or servicing your Bottom-Up FlexShade NEXD, call your dealer or Draper, Inc. ® Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385 draperinc.com | 765.987.7999 | 800.238.7999 FORM: Bottom-Up_FS_NEXD_Inst21 © 2021 All Rights Reserved...

  • Page 2: Please Read - Important Safety Information

    Most standard Draper fabrics may be cleaned at the window by vacuuming with a soft brush attachment. They also may be cleaned by using a sponge or soft cloth and mild solution of warm soapy If the shade is telescoping, place a piece of shimming water.

  • Page 3: Section 1 - Endcap Covers

    Bottom-Up FlexShade NEXD, ® Small and Large Hardware page 3 of 10 Please Note: If installing Pocket Headbox or Surface Headbox, please install headbox FIRST (Section 12) Section 1 - Endcap Covers Caution: Before mounting shades, verify measurements on label provided with shade, and ensure unit is installed at correct width. Please Note: Installer is responsible for selecting mounting hardware appropriate for site conditions.

  • Page 4: Section 3 - Converting Between Mounting Configurations

    Caution: Do not allow shade roller to become exposed by running shade fabric too far down. Use stop balls provided in Please Note: If shade fabric is hardware packet by Draper to set up and down travel limits. Stop balls by others may be too small, and become lodged ®...

  • Page 5: Section 5 - Pre-Tensioning Bottom Roller

    Bottom-Up FlexShade NEXD, ® Small and Large Hardware page 5 of 10 Section 5 - Pre-tensioning Bottom Roller Please Note: The fabric retraction device must be pre-tensioned to 3-5 revolutions. Caution: NEVER ROTATE THE SPEAR IN THE OPPOSITE DIRECTION indicated by the arrows. If this happens, the springs MUST BE REPLACED. Caution: DO NOT pre-tension the spring beyond 5 revolutions.

  • Page 6: Section 7 - Bottom Roller Assembly

    Figure 7-B Section 8 - Installing Draw Cables Warning: Do NOT trim draw cables until Section 9, Step 10. Caution: Starting locations of the Cable Attachment Studs are provided by Draper with each ® shade. Although these locations can be adjusted, the installer must ensure that any adjustments do not cause the hem bar to run into the brackets, possibly damaging the unit.

  • Page 7: Section 9 - Adjusting Fabric Tracking

    Bottom-Up FlexShade NEXD, ® Small and Large Hardware page 7 of 10 Section 9 - Adjusting Fabric Tracking 1. Slide both ends of the draw cable close to the attachment stud flat washers. 2. Raise the shade to its fully closed position and Figure 9-A Loosen smaller ensure that the hem bar is centered in the window.

  • Page 8: Section 11 - Top/Back Cover Installation

    Bottom-Up FlexShade NEXD, ® Small and Large Hardware page 8 of 10 Section 11 - Top/Back Cover Installation Figure 11-B Figure 11-A Place endcaps into top/ back cover pieces of ceiling/wall headbox. Drill holes in back or top (wall mount) (ceiling mount) top/back cover pieces.

  • Page 9: Section 12 - Headbox Installation

    Bottom-Up FlexShade NEXD, ® Small and Large Hardware page 9 of 10 Section 12 - Headbox Installation Please Note: Installer must provide adequate clearance for removal of Roller Assembly during installation and maintenance. Please Note: Headbox must be mounted directly to ceiling, or to a continuous blocking that is secured to building structure. Please Note: For pocket style headbox, small size will require securing closure panel to endcap with provided screw.

  • Page 10: Section 13 - Bead Chain Limits And Safety Device Installation

    (crimp closed using pliers) (Fig. 13-A) 1. Attach Caution: Be sure to use stop balls provided in hardware packet by Draper to set up and down travel stop balls. limits. Stop balls by others may be too small, and become lodged in clutch mechanism.
