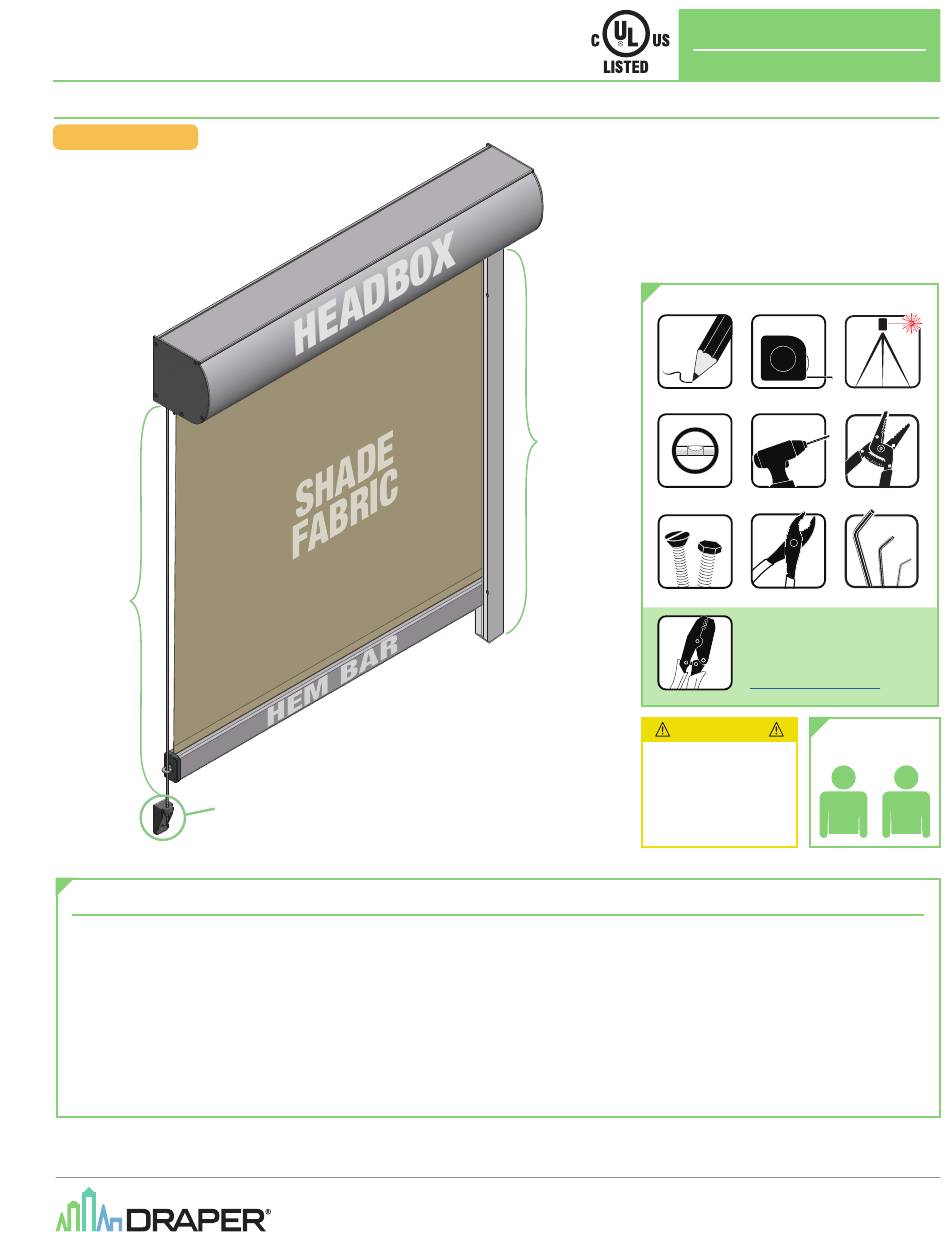

Exterior Motorized FlexShade
Outdoor shading system with smooth, quiet operation and independent control

Overview - Components

EXT FLEX MON
E N D
C A
P
SIDE
CABLE
OPTION
CABLE GUIDE
(Wall Mount shown)
Contents
Overview - Components ...............................................................................................1
Section 1 - Preparation for Installation .....................................................................3
Section 2 - Mounting Headbox with Brackets ........................................................3
Section 3 - Remove Roller Assembly .........................................................................4
Section 4- Installing Side Channels Option ..............................................................4
Section 5 - Attaching Side Channels to Mounted Headbox ..................................5
Section 6 - Installing Cable Guides Option ...............................................................6
Section 7 - Replace Roller Assembly .........................................................................8
®
TOOLS REQUIRED
PENCIL
SIDE
CHANNEL
OPTION
LEVEL
HARDWARE
CRIMPING TOOL
CAUTION
understand
all warnings
before beginning
installation.
Section 8 - Securing Guide Cable ..............................................................................9
Section 9 - Hem Bar Liner Options.............................................................................9
Section 10 - Anti-Insect Brush Seals Option ............................................................9
Section 11 - Cable Exit ................................................................................................10
Section 12 - RF Remote Programming Instructions .............................................11
Section 13 - Limit Switch Adjustments ....................................................................12
Section 14 - Complete Electrical Connection ........................................................12
Section 15 - Dimensions: Front View .......................................................................13
Section 16 - Dimensions: Side View .........................................................................14
Section 17 - Dimensions: Components ...................................................................15
If you have any difficulties installing or servicing your
Exterior Motorized FlexShade
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
© 2021 All Rights Reserved
INSTRUCTIONS
INSTALLATION & OPERATION
TAPE MEASURE
LASER LEVEL
POWER DRILL
WIRE STRIPPERS
PLIERS
(by others)
HEX WRENCH
NOTE: Draper
recommends
®
the 32-VC:VG Crimping
Tool available from
www.nicopress.com
PERSONNEL
REQUIRED
Read and
1
, call your dealer or Draper, Inc.
®
draperinc.com | 765.987.7999 | 800.238.7999
|
FORM: Ext_FSMO_Inst21-R
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FlexShade and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Draper FlexShade

Summary of Contents for Draper FlexShade

  • Page 1: Table Of Contents

    If you have any difficulties installing or servicing your Exterior Motorized FlexShade , call your dealer or Draper, Inc. ® Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385 draperinc.com | 765.987.7999 | 800.238.7999 FORM: Ext_FSMO_Inst21-R © 2021 All Rights Reserved...

  • Page 2: Please Read - Important Safety & Installation Information

    Most standard Draper fabrics may be cleaned at the window by vacuuming with a soft brush attachment. They also may be cleaned by using a sponge or soft cloth and mild solution of warm telescoping.

  • Page 3: Section 1 - Preparation For Installation

    Caution: Before mounting shades, verify measurements on label provided with shade, and ensure unit is installed at correct width. Please Note: Installer is responsible for selecting mounting hardware appropriate for site conditions. 1. Ensure mounting surface is strong enough to hold the Exterior Motorized FlexShade ®...

  • Page 4: Section 3 - Remove Roller Assembly

    Exterior Motorized FlexShade ® page 4 of 16 Section 3 - Remove Roller Assembly Remove screws from bottom of Headbox. Remove Fascia and set aside. Remove Quick Release Pin from Idler End of Roller Assembly. Remove Motor Clip (Operator End...

  • Page 5: Section 5 - Attaching Side Channels To Mounted Headbox

    Exterior Motorized FlexShade ® page 5 of 16 Section 5 - Attaching Side Channels to Mounted Headbox IMPORTANT: Side Channels must be installed parallel, plumb, and square, with a tolerance of +/- 1/ 8 " (3mm) Insert Side Engage Side...

  • Page 6: Section 6 - Installing Cable Guides Option

    Exterior Motorized FlexShade ® page 6 of 16 Section 6 - Installing Cable Guides Option Install Mounting Bracket using appropriate fasteners. (Wall mount option shown.) Pencil Mark Place washer and nut approximately Pull cable up, halfway up threads through the...
  • Page 7 Exterior Motorized FlexShade ® page 7 of 16 Undo washer and nut, and pull cable up to allow for working clearance. (Deck mount option shown). Pencil Mark Strip cable to pencil mark. Crimp the barrels approximately 1/ 8 " above (3mm) pencil mark.

  • Page 8: Section 7 - Replace Roller Assembly

    Exterior Motorized FlexShade ® page 8 of 16 Section 7 - Replace Roller Assembly Replace Motor End of Replace Idler Mounting Gudgeon Roller Assembly. on Idler End of Roller Assembly. Replace Motor Clip. Replace Quick Release Pin. Replace Fascia. Replace screws...

  • Page 9: Section 8 - Securing Guide Cable

    Exterior Motorized FlexShade ® page 9 of 16 Section 8 - Securing Guide Cable While capturing Hem Bar of shade, pull cable through Mounting Bracket, until crimped barrels are resting on Cable Replace Washer and Nut on the bottom Mounting Hole on Endcap.

  • Page 10: Section 11 - Cable Exit

    ® page 10 of 16 Section 11 - Cable Exit The Exterior Motorized FlexShade can be ordered with a cable exit pre-drilled in the top or back of the Headbox. ® If no cable exit is specified, the cable is routed down and out the fabric opening under the motor.

  • Page 11: Section 12 - Rf Remote Programming Instructions

    Exterior Motorized FlexShade ® page 11 of 16 Section 12 - RF Remote Programming Instructions Please Note: The motor ships with no programming. Follow these instructions to program unit to the desired transmitter. 1. Select a transmitter channel to assign motor.

  • Page 12: Section 13 - Limit Switch Adjustments

    Connections should be made in accordance with attached wiring (es) (es) diagram, and wiring should comply with national and local electrical codes. DO NOT wire motors in parallel without written permission from Draper ® All operating switches should be “off” before power is connected. Controls & System Overview Controls &...

  • Page 13: Section 15 - Dimensions: Front View

    Exterior Motorized FlexShade ® page 13 of 16 Section 15 - Dimensions: Front View Shade Width 1 " Fabric Width (30mm) Shade Height Side Cable Option 2 " (57mm) Hem Bar Length Deck Mounted Cable Guide option, configured for Inside Mount.

  • Page 14: Section 16 - Dimensions: Side View

    Exterior Motorized FlexShade ® page 14 of 16 Section 16 - Dimensions: Side View Side Cable Option Side Channel Option " (8mm) 3 " 3 " (92mm) (92mm) 5 " 5 " (149mm) (149mm) 3 " 3 " SHADE SHADE "...

  • Page 15: Section 17 - Dimensions: Components

    Exterior Motorized FlexShade ® page 15 of 16 Section 17 - Dimensions: Components 3 " 3 " (92mm) (92mm) Square Curved Headbox Headbox 3 " (92mm) Wall Mounting Bracket 4" (102mm) 1" (25mm) 3 " 1 " (92mm) (44mm) "...
  • Page 16 Exterior Motorized FlexShade ® page 16 of 16 Side Channel Hem Bar 1 " (41mm) 2" 1 " (51mm) (41mm) (9.5mm) 1" (19mm) (25mm) Optional Channel Adaptors " 1 " (6mm) (29mm) 1 " (38mm) " (3mm) " 1 "...
