Dual Roller Motorized FlexShade
(Standard Hardware)

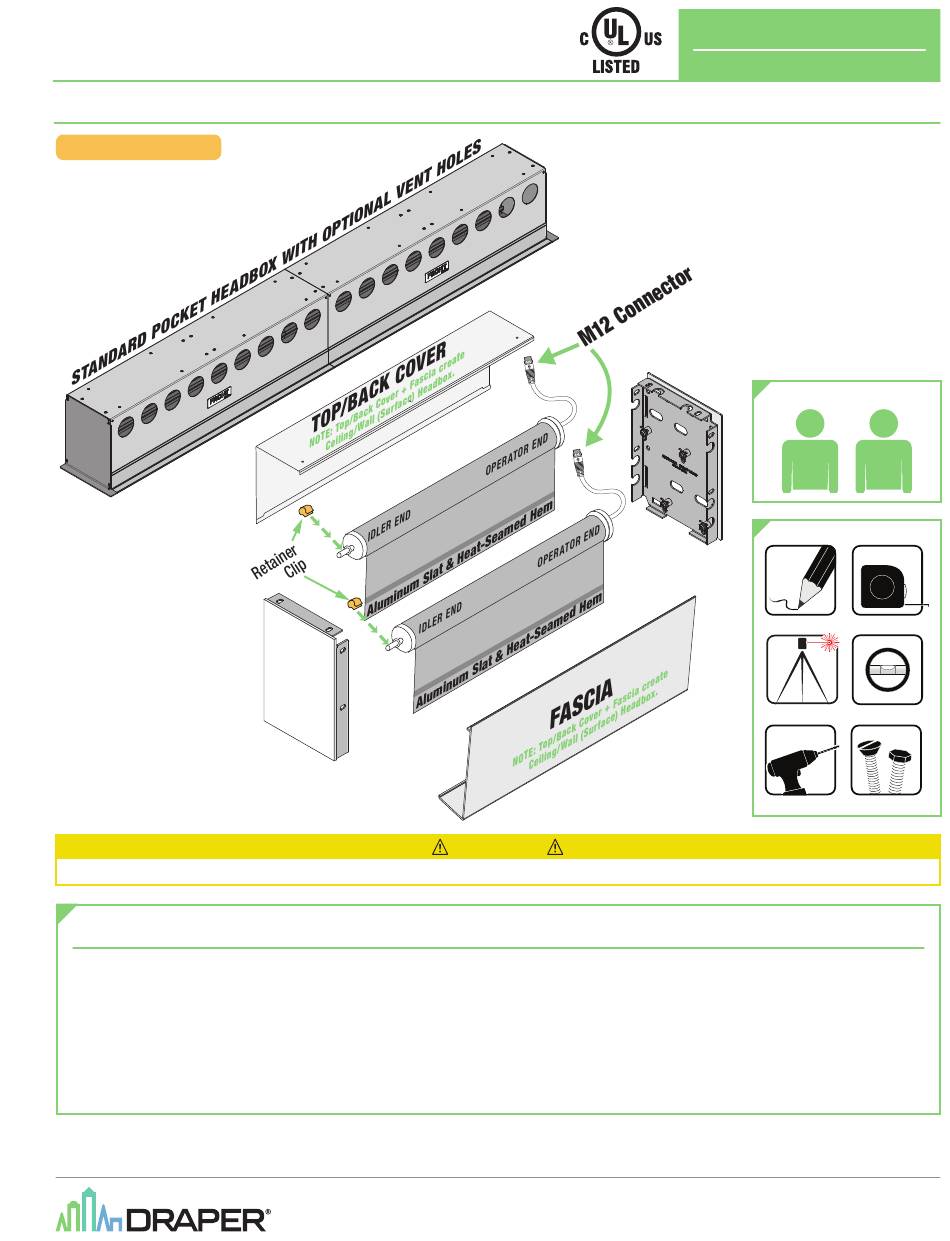

Overview - Components

FLEXSHADE DFMO
Read and understand all warnings
Contents
Overview - Components .......................................................................................1
Section 1 - Mounting Endcaps ............................................................................3
Section 2 - Installing Fascia ...............................................................................3
Section 3 - Dual Roller Surface Headbox Installation .....................................4
E N D
C A
P
®
CAUTION
before beginning installation.
(Page 2 of this document)
Section 4 - Pocket Headbox Installation ...........................................................5
Section 5 - Installing Closure Panel ...................................................................6
Section 6 - Limit Switch Adjustments ...............................................................7
Section 7 - Electrical Connections ................................................................. 7-9
Section 8 - Standard Hardware Dimensions ..................................................10
© 2021 All Rights Reserved
INSTRUCTIONS
INSTALLATION & OPERATION
E N D
C A
C O V
P
E R
PERSONNEL REQUIRED
1
E N D
C A
TOOLS REQUIRED
P
PENCIL
LASER LEVEL
POWER DRILL
If you have any difficulties installing or servicing your
Dual Roller FlexShade
, call your dealer or Draper, Inc.
®
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
|
FORM: DR_FS_MO_Standard_Hardware_Inst21
2
TAPE MEASURE
LEVEL
HARDWARE
(by others)
