Draper FlexShade Instructions Manual

Draper FlexShade Instructions Manual

Exterior motorized exterior shading system with smooth, quiet operation and independent control
Hide thumbs Also See for FlexShade:
Table of Contents

Advertisement

Quick Links

Exterior Motorized FlexShade
Exterior shading system with smooth, quiet operation and independent control

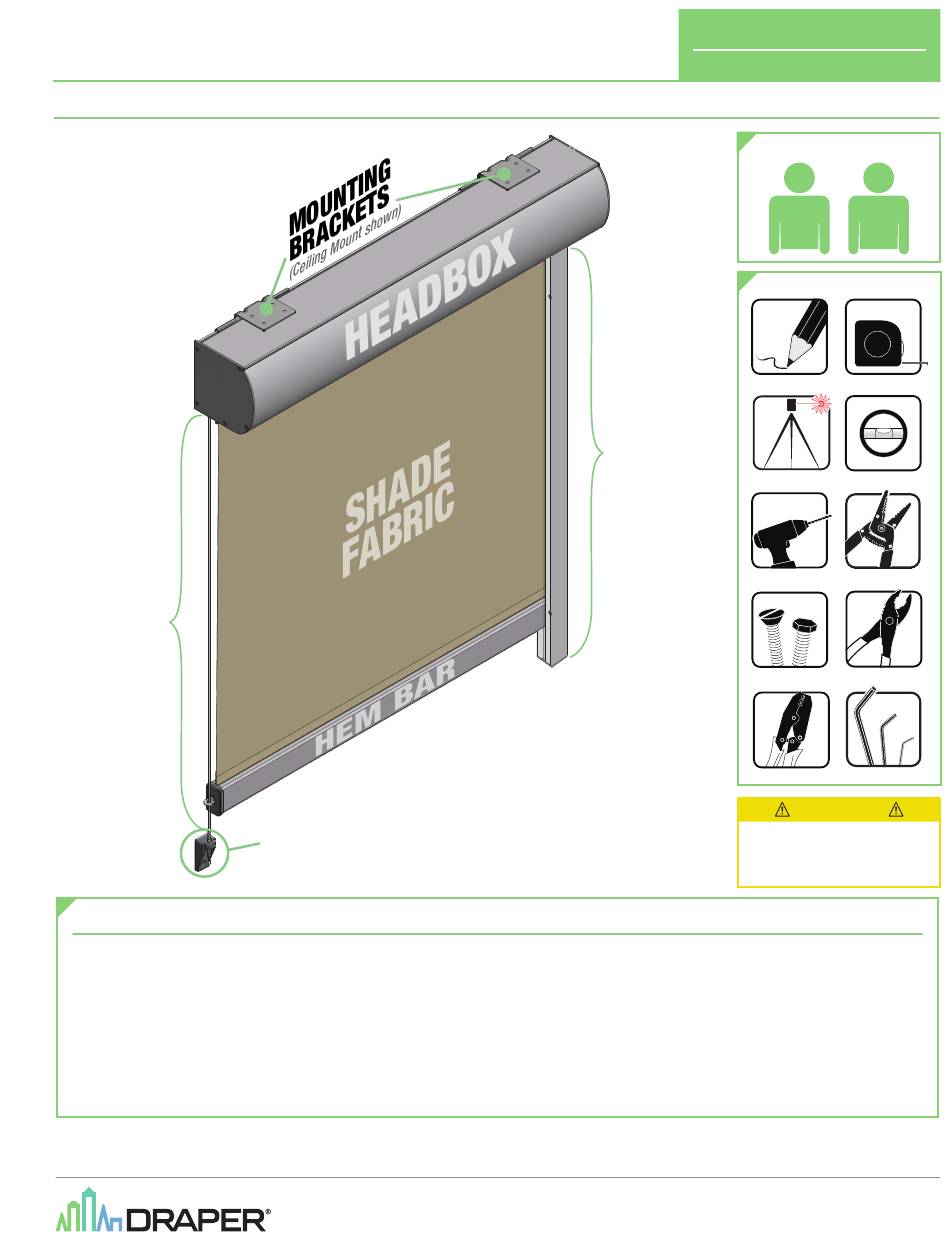

Overview - Components

E N D
C A
P
SIDE
CABLE
OPTION
Contents
Overview - Components ...............................................................................................1
Section 1 - Preparation for Installation .....................................................................3
Section 2 - Mounting Headbox with Brackets ........................................................3
Section 3 - Installing Side Channels Option .............................................................4
Section 4 - Installing Cable Guides Option ...............................................................5
Section 5 - RF Remote Programming Instructions .................................................6
CABLE GUIDE
(Wall Mount shown)
®
SIDE
CHANNEL
OPTION
Section 6 - Limit Switch Adjustments .......................................................................7
Section 7 - Complete Electrical Connection ............................................................7
Section 8 - Hem Bar Liner Options.............................................................................8
Section 9 - Anti-Insect Brush Seals Option ..............................................................8
Section 10 - Cable Exit .................................................................................................8
Section 12 - Dimensions: Side View .........................................................................10
Section 13 - Dimensions: Components ..............................................................11-12
If you have any difficulties installing or servicing your
Exterior Motorized FlexShade
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
© 2020 All Rights Reserved
INSTRUCTIONS
INSTALLATION & OPERATION
PERSONNEL REQUIRED
1
2
TOOLS REQUIRED
TAPE MEASURE
PENCIL
LASER LEVEL
LEVEL
POWER DRILL
WIRE STRIPPERS
PLIERS
HARDWARE
(by others)
CRIMPING TOOL
HEX WRENCH
CAUTION
Read and understand
all warnings before
beginning installation.
.......................................................9
, call your dealer or Draper, Inc.
®
draperinc.com | 765.987.7999 | 800.238.7999
|
FORM: Exterior_FS_MO_Inst20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FlexShade and is the answer not in the manual?

Questions and answers

Related Manuals for Draper FlexShade

Summary of Contents for Draper FlexShade

  • Page 1: Table Of Contents

    If you have any difficulties installing or servicing your Exterior Motorized FlexShade , call your dealer or Draper, Inc. ® Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385 draperinc.com | 765.987.7999 | 800.238.7999 FORM: Exterior_FS_MO_Inst20 © 2020 All Rights Reserved...

  • Page 2: Please Read - Important Safety And Installation Information

    Most standard Draper fabrics may be cleaned at the window by vacuuming with a soft brush attachment. They also may be cleaned by using a sponge or soft cloth and mild solution of warm telescoping.

  • Page 3: Section 1 - Preparation For Installation

    Caution: Before mounting shades, verify measurements on label provided with shade, and ensure unit is installed at correct width. Please Note: Installer is responsible for selecting mounting hardware appropriate for site conditions. 1. Ensure mounting surface is strong enough to hold the Exterior Motorized FlexShade ®...

  • Page 4: Section 3 - Installing Side Channels Option

    Exterior Motorized FlexShade ® page 4 of 12 Section 3 - Installing Side Channels Option Section 3.1 - Preparation 1. Use 3 mm Hex Wrench to remove Screws from Side Channels and 3. Mark wall or jamb and drill small pilot holes in mounting surface (Fig.

  • Page 5: Section 4 - Installing Cable Guides Option

    Exterior Motorized FlexShade ® page 5 of 12 Section 4 - Installing Cable Guides Option Undo the nut and pull the cable down, until the mark aligns with the bottom of the endcap (deck mount option shown) Pull cable through the hole in the endcap flange until taut.

  • Page 6: Section 5 - Rf Remote Programming Instructions

    Exterior Motorized FlexShade ® page 6 of 12 Section 5 - RF Remote Programming Instructions Please Note: The motor ships with no programming. Follow these instructions to program unit to the desired transmitter. 1. Select a transmitter channel to assign motor.

  • Page 7: Section 6 - Limit Switch Adjustments

    Connections should be made in accordance with attached wiring (es) (es) diagram, and wiring should comply with national and local electrical codes. DO NOT wire motors in parallel without written permission from Draper ® All operating switches should be “off” before power is connected. Controls & System Overview Controls &...

  • Page 8: Section 8 - Hem Bar Liner Options

    Side Channel. Section 10 - Cable Exit The Exterior Motorized FlexShade can be ordered with a cable exit pre-drilled in the top or back of the Headbox. If no cable exit is specified, ® the cable is routed down and out the fabric opening under the motor.

  • Page 9: Section 11 - Assembled Dimensions (Front View)

    Exterior Motorized FlexShade ® page 9 of 12 Section 11 - Assembled Dimensions (Front View) Shade Width 1 " Fabric Width (30mm) Shade Height Side Cable Option 2 " (57mm) Hem Bar Length Deck Mounted Cable Guide option, configured for Inside Mount.

  • Page 10: Section 12 - Dimensions: Side View

    Exterior Motorized FlexShade ® page 10 of 12 Section 12 - Dimensions: Side View " (8mm) Side Cable Side Cable Celing Mount Wall Mount Option Option 3 " 3 " (92mm) (92mm) 5 " 5 " (149mm) (149mm) 3 "...

  • Page 11: Section 13 - Dimensions: Components

    Exterior Motorized FlexShade ® page 11 of 12 Section 13 - Dimensions: Components 3 " 3 " (92mm) (92mm) Square Curved Headbox Headbox 3 " (92mm) Ceiling Mounting Bracket Wall Mounting Bracket 6" (152mm) 2 " (70mm) 4" (102mm) "...
  • Page 12 Exterior Motorized FlexShade ® page 12 of 12 Section 13 - Dimensions: Components (continued) Side Channel Hem Bar 1 " (41mm) 2" 1 " (51mm) (41mm) (9.5mm) (19mm) 1" (25mm) Optional Channel Adaptors " 1 " (6mm) (29mm) 1 "...
