dymax BlueWave 200 Quick Start Instructions
Hide thumbs Also See for BlueWave 200:

Advertisement

Quick Links

BlueWave
NOTE: This replacement bulb is sold as a spare part to be used only in the relevant Dymax lamp system. Dymax sells
these bulbs for this intended use only.
Bulb replacement is easily accomplished by following the steps
below. Refer to the labeled diagrams under the light source cover.
1. Ensure that the Power Cord is unplugged from the rear of the
unit.
2. Remove the top cover from the BlueWave 200 by loosening the
four cover fasteners.

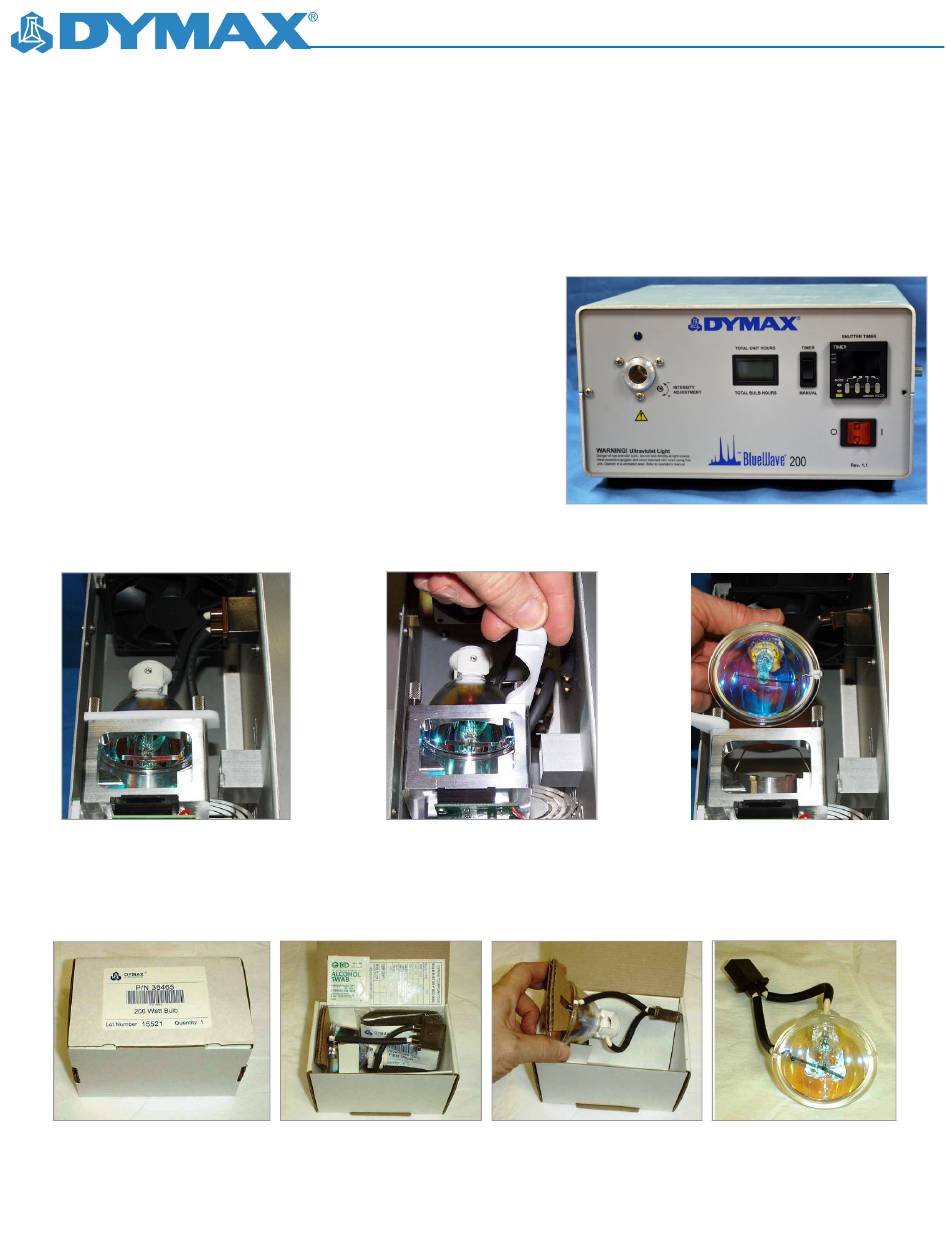

3. Unplug the Bulb and Lift the Bulb Mounting Bracket (Figure 3)
from it. Remove the Bulb from the Bulb Mount (Figure 4).
Figure 2. Bulb Installed in Bulb Mount
4. Unpack the new Bulb. Take care not to bend the flat Electrode in the center of the Bulb.
Figure 5. Bulb Package (Closed)
5. Install the new Bulb into the unit (Figure 9), plug the Bulb in (Figure 10), and tighten the two Mounting Bracket
Thumbscrews (Figure 11). Re-install the BlueWave 200's cover. Make sure that the center Electrode is positioned as
shown in Figure 12.
®
200 Bulb Installation Procedures
Figure 3. Lift Bulb Mounting Bracket
Figure 6. Bulb Package (Open)

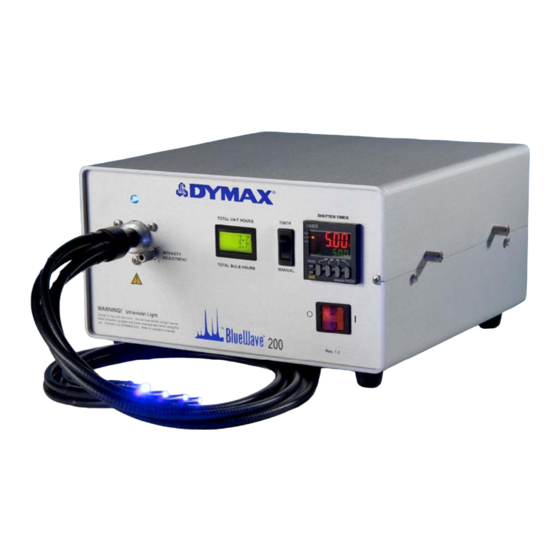

Figure 1. BlueWave 200
Figure 4. Remove Bulb from Bulb Mount
Figure 7. Remove Bulb from Box
Quick Start Instructions
Figure 8. Bulb
