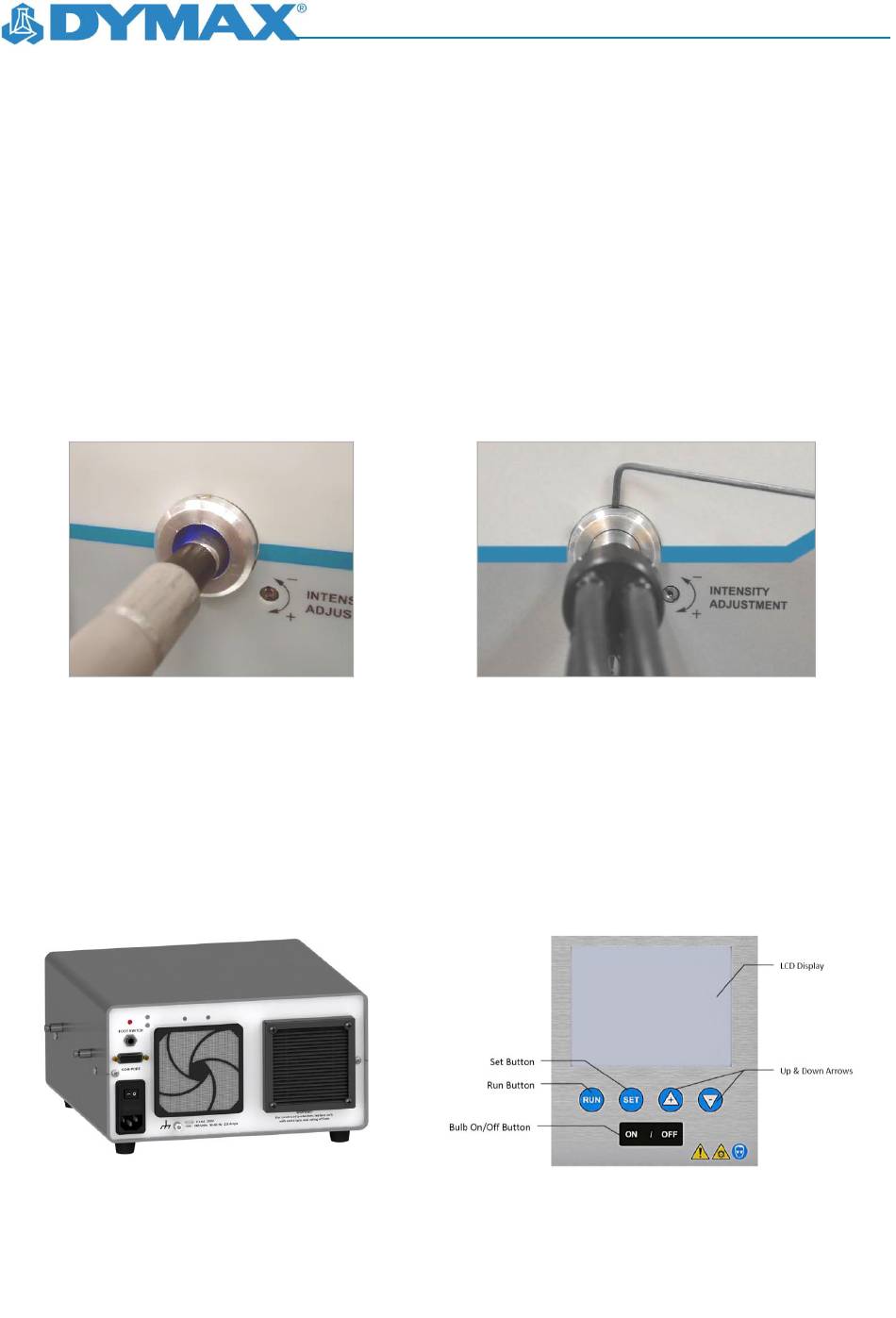

dymax BlueWave 200 Quick Start Instructions

1.

Remove the protective cover from the Lightguide Mount.

2.
Insert the large end of the Lightguide into the Lightguide Mount until it snaps into place (Figure 1). Fasten the
Light- guide into place by lightly tightening the Setscrew located on the Lightguide Mount (Figure 2). A Hex
Wrench is provided with the system for this purpose. The Setscrew should be tightened gently to prevent damage
to the Lightguide.
NOTE: Multi-Leg Lightguides should be balanced by rotating the Lightguide to obtain the desired UV intensity of
each leg before lightly tightening the Setscrew.
Figure 1. Insert Lightguide into Lightguide Mount
3.
Connect the Power Cord to the Power Receptacle on the rear of the BlueWave 200. Plug the Power Cord into a
grounded wall outlet.
4.
If you will be using a Foot Pedal, connect the Foot Pedal to the Foot Pedal Connection (Figure 3) on the rear of
the unit. A ground stud is also provided on the back of the BlueWave 200 if additional grounding is desired.
Turn the Power Switch on (located on the rear of the unit) and press the "Bulb On" button (Figure 4). Allow the
5.
Bulb to warm up for 5 minutes.
Figure 3. Rear Connections
6. The unit is ready for operation. The Shutter is opened and closed by means of the Foot Pedal.
BlueWave
Quick Start Instructions
®
200 Version 3.0
Figure 2. Gently Tighten Setscrew on Lightguide
Quick Start Instructions
Mount with Hex Wrench
Figure 4. Front Panel Controls
