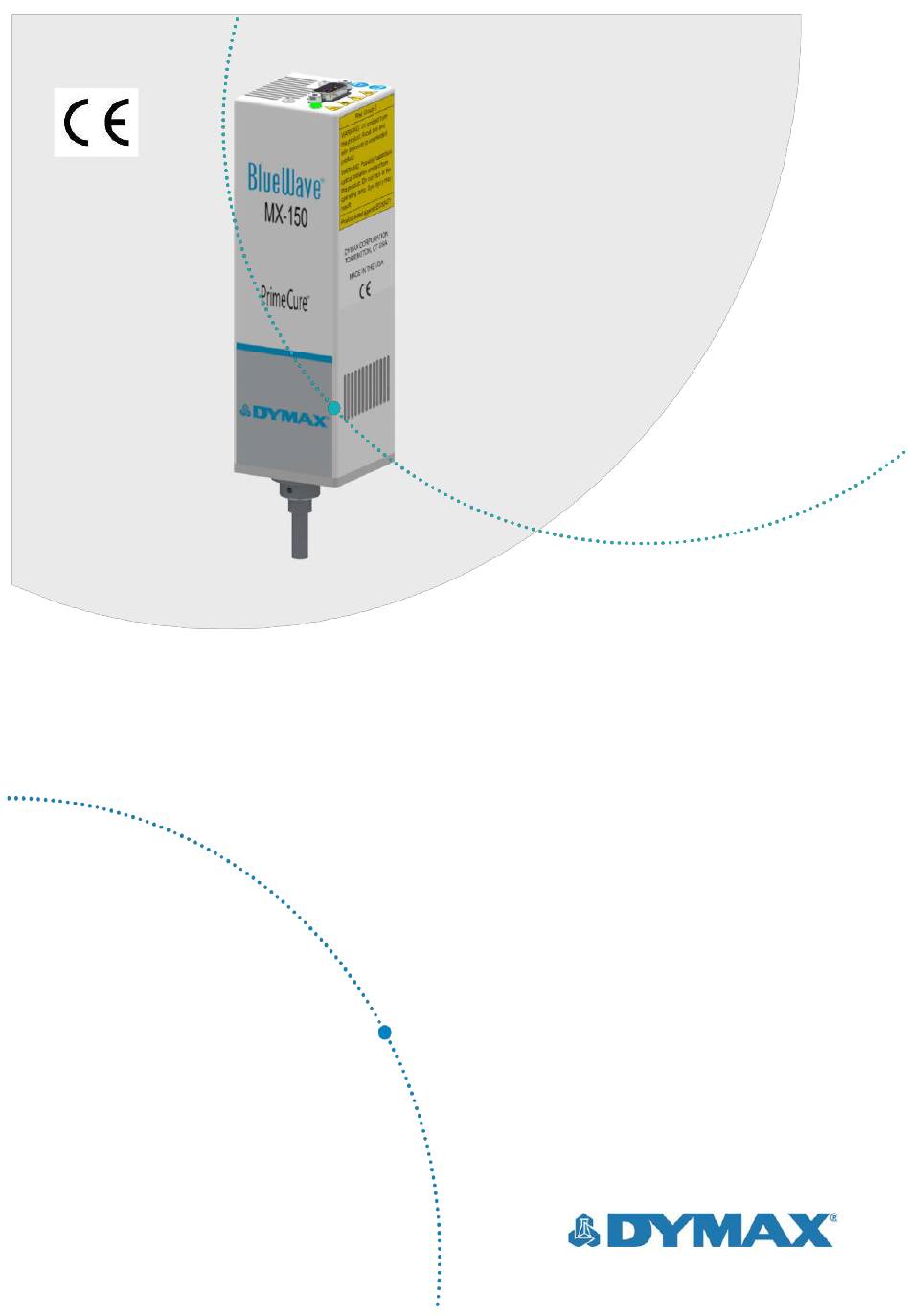

  • Page 1 BlueWave MX-150 ® LED Spot-Curing Emitters User Guide...
  • Page 2 Any warranty applicable to the product, its application, and use is strictly limited to that contained in the Dymax standard Conditions of Sale. Dymax recommends that any intended application be evaluated and tested by the user to ensure that desired performance criteria are satisfied.

  • Page 3: Table Of Contents

    Contents Introduction ............... 4 Where to Get Help .............4 Safety ................. 4 Product Overview ............. 5 Description of BlueWave MX-150 Emitters ....5 Unpacking ..............6 Parts Included ..............6 Installation ..............6 Important Information ............6 Mounting/Connections ............7 Troubleshooting & Maintenance ......8 Product Cleaning and Care ..........9...

  • Page 4: Introduction

    Germany, Monday through Friday, from 8:00 a.m. to 5:00 p.m. Central European Time. You can also email Dymax Europe GmbH at info_de@dymax.com. Contact information for additional Dymax locations can be found on the back cover of this user guide. For more information about this product, visit dymax.com.

  • Page 5: Product Overview

    The system can be set up in many configurations and can be used with a lightguide if needed. • The BlueWave MX-150 emitter is air cooled using an axial fan. • The BlueWave MX-150 emitter can be mounted using one of two hole-patterns in the housing body.

  • Page 6: Unpacking

    Upon arrival, inspect all boxes for damage and notify the shipper of box damage immediately. Open each box and check for equipment damage. If parts are damaged, notify the shipper and submit a claim for the damaged parts. Contact Dymax so that new parts can be shipped to you immediately.

  • Page 7: Mounting/Connections

    Figure 2. Bluewave MX-150 Emitter Dimensions U S E R G U I D E B L U E W A V E M X - 1 5 0 E M I T T E R S...

  • Page 8: Troubleshooting & Maintenance

    Verify interlock jumpers are in Interlock is open place. Verify PLC command structure for PLC mode. BlueWave MX-150 LED does not Interface cable connections Check connections and condition produce light loose or damaged of interface cable.

  • Page 9: Product Cleaning And Care

    Product Cleaning and Care • Product cleaning is limited to wiping the outside of the product with a damp cloth. Do not soak. Isopropanol Alcohol or household cleaners may be used for cleaning the product. • Keep the LED array free from dust and debris (FOD). Contamination can lead to loss of performance or failure.

  • Page 10: Compatible Devices

    Part Number Controllers 43184* BlueWave ® MX Series 2-Channel Controller/Power Supply 43181* BlueWave ® MX Series 4-Channel Controller/Power Supply Emitters BlueWave MX-150, VisiCure (405 nm) 42338 ® BlueWave MX-150, PrimeCure (385 nm) 42337 ® BlueWave MX-150, RediCure (365 nm) 42336 ®...

  • Page 11: Specifications

    Specifications Property Specification Emitter RediCure PrimeCure VisiCure Output Frequency 365 nm 385 nm 405 nm Typical Intensity Output* 24 W/cm 38 W/cm 36 W/cm Emitter Dimensions 1.97" x 1.97" x 7.9" [5 cm x 5 cm x 20.06 cm] (W x D x H) Weight 1.4 lbs.

  • Page 12: Declaration Of Conformity

    Declaration of Conformity Figure 4. Declaration of Conformity - CE U S E R G U I D E B L U E W A V E M X - 1 5 0 E M I T T E R S...
  • Page 13 Figure 5. Declaration of Conformity - UKCA U S E R G U I D E B L U E W A V E M X - 1 5 0 E M I T T E R S...

  • Page 14: Warranty

    Unauthorized repair, modification, or improper use of equipment may void your warranty benefits. The use of aftermarket replacement parts not supplied or approved by Dymax Corporation, will void any effective warranties and may result in damage to the equipment.

  • Page 15: Index

    Index Cleaning ........................... 9 Compatible Devices ...................... 10 Components ........................5 Connections ........................7 Declaration of Conformity .................... 12 Help ........................... 4 Installation ........................6 Maintenance ........................8 Mounting .......................... 7 Parts List ........................... 6 Product Overview ......................5 Safety ..........................4 Spare Parts ........................
  • Page 16 Nothing in this bulletin shall act as a representation that the product use or application will not infringe a patent owned by someone other than Dymax Corporation or act as a grant of license under any Dymax Corporation Patent. Dymax Europe GmbH recommends that each user adequately test its proposed use and application of the products before actual repetitive use, using the data contained in this bulletin as a general guide.
