dymax BlueWave QX4 Assembly And Setup Instructions

Linear array
Hide thumbs Also See for BlueWave QX4:
1
2

Advertisement

Quick Links

Download this manual
1.

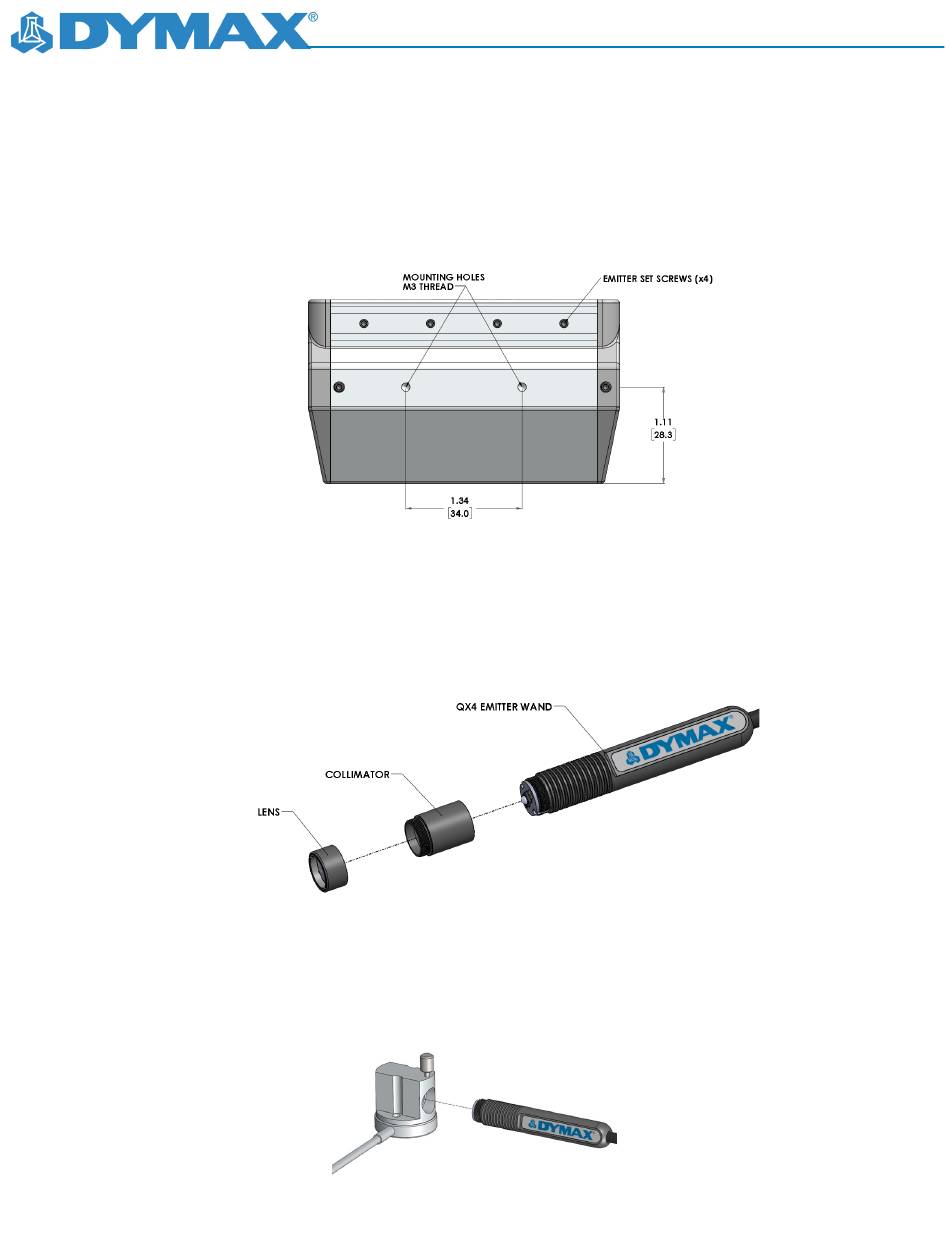

Locate the 2 threaded mounting holes (on either front or back). Secure the Array to the Dymax Emitter Mounting Stand (P/N
43090), or alternative customer designed / supplied fixture, and position as required for the application. Insure that mounting
does not restrict access to the 4 emitter set screws, as these only appear on one side of the unit.
2.
Remove the collimator and focusing lens from each of the QX4 wands to be used. Be sure to remove both the collimator AND
lens. Performance will be severely limited if the collimator is not removed.
*Take care during steps 2, 3, & 4, as the LED is fully exposed and can easily be damaged by mishandling.
3.
For optimal performance, the wands should be balanced for intensity output prior to use in the Array.
a.
Connect each of the 4 wands to a QX4 controller and set to 100% power output.
b.
Using the Accu-cal 50-LED radiometer (P/N 40505) w/QX4 Adapter (P/N 42218); insert the wand until it is fully
seated. Tighten set screw.
c.
With the optometer set to 'FLOOD' mode, measure and record the 'INTENSITY' for each wand.
d.
Select the lowest output wand and set to the side. This is the 'Reference Intensity'.
QX4 Linear Array
Assembly and Setup Instructions
Dimensions for alternative mounting configurations
Quick Start Instructions
