Summary of Contents for dymax BlueWave MX-250

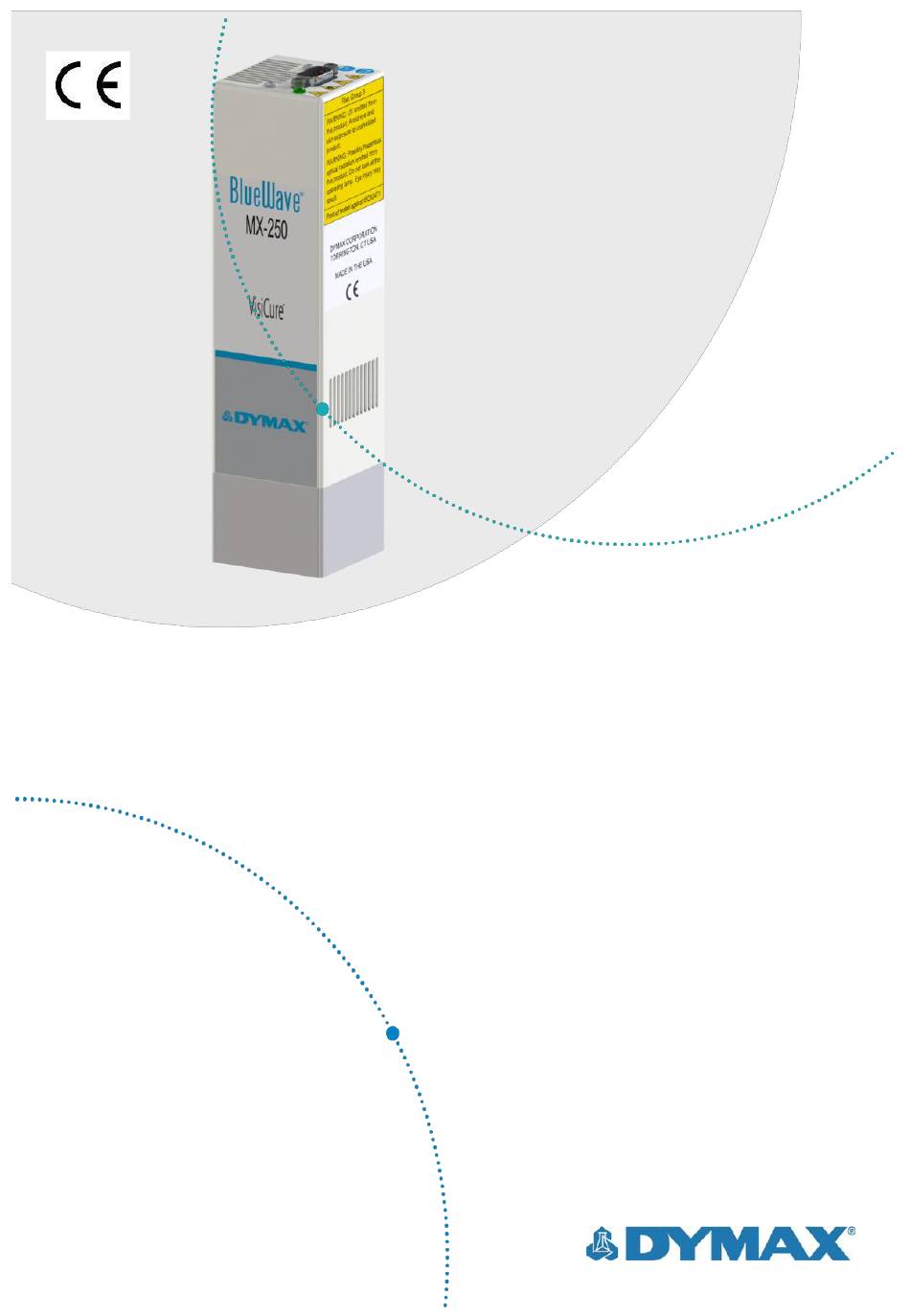

- Page 1 BlueWave MX-250 ® LED Flood-Curing Emitters User Guide...
- Page 2 Please note that most dispensing and curing system applications are unique. Dymax does not warrant the fitness of the product for the intended application. Any warranty applicable to the product, its application, and use is strictly limited to that contained in the Dymax standard Conditions of Sale.
-
Page 3: Table Of Contents
Contents Introduction ............... 4 Where to Get Help ............4 Safety ................. 4 Product Overview ............. 5 Description of BlueWave MX-250 Emitters ....5 Unpacking ..............6 Parts Included ..............6 Installation ..............6 Important Information ............6 Mounting/Connections ............. 7 Troubleshooting &... -
Page 4: Introduction
United States, Monday through Friday, from 8:00 a.m. to 5:30 p.m. Eastern Standard Time. You can also email Dymax at info@dymax.com. Contact information for additional Dymax locations can be found on the back cover of this user guide. For more information about this product, visit dymax.com. -
Page 5: Product Overview
They provide manufacturers with curing flexibility and expansion capabilities. • The BlueWave MX-250 emitter is air cooled using an axial fan. • The BlueWave MX-250 emitter can be mounted using one of two hole patterns in the housing body. Figure 1, Main Components of BlueWave MX-250 System... -
Page 6: Unpacking
Upon arrival, inspect all boxes for damage and notify the shipper of box damage immediately. Open each box and check for equipment damage. If parts are damaged, notify the shipper and submit a claim for the damaged parts. Contact Dymax so that new parts can be shipped to you immediately. -
Page 7: Mounting/Connections
Figure 2. BlueWave MX-250 Emitter Dimensions U S E R G U I D E B L U E W A V E M X - 2 5 0 E M I T T E R S... - Page 8 • When multiple emitters are mounted side-by-side, maintain 1 mm (0.04”) of clear space between units. For outermost units, maintain 20 mm (0.8”) of free space to obstructions for safe use. Figure 3. Example of Installation Using Array Stand U S E R G U I D E B L U E W A V E M X - 2 5 0 E M I T T E R S...
-
Page 9: Troubleshooting & Maintenance
0 seconds requires a trigger. Verify interlock jumpers are in place. Interlock is open Verify PLC command structure for PLC mode. BlueWave MX-250 LED does not Interface cable connections Check connections and condition of produce light loose or damaged interface cable. -
Page 10: Product Cleaning And Care
Product Cleaning and Care • Product cleaning is limited to wiping the product with a damp cloth. Do not soak. Isopropanol Alcohol or household cleaners may be used for cleaning the product. • Always inspect the quartz window for cleanliness before use. Foreign material can cause permanent damage to the window. -
Page 11: Compatible Devices
Spare Parts Item Part Number BlueWave MX-250 Emitter Glass Replacement Kit 42929 U S E R G U I D E B L U E W A V E M X - 2 5 0 E M I T T E R S... - Page 12 MX Series 2-Channel Controller/Power Supply - Asian Power 43186 Cord (Type G) BlueWave ® MX Series 4-Channel Controller/Power Supply – Asian Power 43183 Cord (Type G) Emitters BlueWave MX-250, VisiCure (405 nm) 42808 ® BlueWave MX-250, PrimeCure (385 nm) 42807 ® BlueWave MX-250, RediCure...
-
Page 13: Specifications
Weight 1.64 lbs. [0.74 kg] Unit Warranty 1 year from purchase date Operating Environment 10°C to 40°C (50°F to 104°F) * Measured using Dymax ACCU-CAL™ 50-LED radiometer in flood mode. Figure 8. BlueWave MX Series Spectral Output RediCure PrimeCure VisiCure... -
Page 14: Declaration Of Conformity
Declaration of Conformity U S E R G U I D E B L U E W A V E M X - 2 5 0 E M I T T E R S... -
Page 15: Warranty
Unauthorized repair, modification, or improper use of equipment may void your warranty benefits. The use of aftermarket replacement parts not supplied or approved by Dymax Corporation, will void any effective warranties and may result in damage to the equipment. - Page 16 U.S.A. Please note that most curing system applications are unique. Dymax does not warrant the fitness of the product for the intended application. Any warranty applicable to the product, its application and use is strictly limited to that contained in Dymax standard Conditions of Sale published on our website. Dymax recommends that any intended application be evaluated and tested by the user to ensure that desired performance criteria are satisfied.
