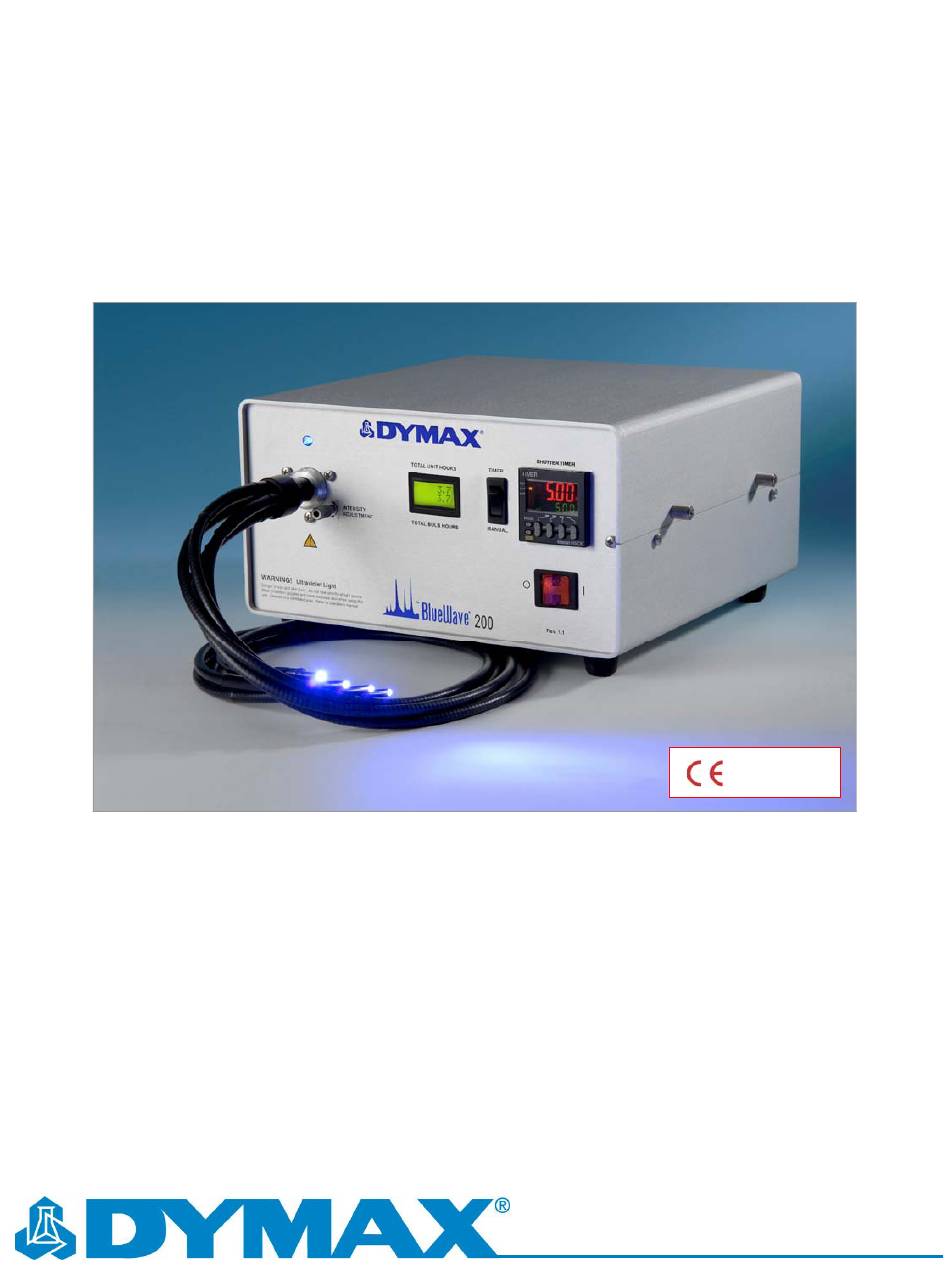

Page 1 ® BlueWave 200 Version 1.1 UV Light-Curing Spot Lamp System with Patented Intensity Control Adjustment Marked ® BlueWave 200 Version 1.1 (PN 38905 – North American / PN 38605 – International) shown with 4-pole lightguide Operation Manual...
Page 2: Table Of Contents
Operation ............................Page 15-17 Maintenance ........................... Page 18 Troubleshooting ..........................Page 19 Frequently Asked Questions......................Page 19-20 Spare Parts List ..........................Page 21 Definition of Terms.......................... Page 22 Warranty ............................Page 23 ® DYMAX BlueWave 200 Version 1.1 UV Light-Curing Spot Lamp System...
Page 3 The enclosed BlueWave 200 UV Light-Curing Spot Lamp System was developed and manufactured by the DYMAX team, driven by a desire to best serve your needs. Before shipping, your BlueWave 200 was thoroughly checked and tested for trouble-free performance. The proper set up and operation of this Spot Lamp System will maximize safety and user-friendly performance, providing optimum yield of your technological process.
Page 4: Unpacking And Inspection
UNPACKING AND INSPECTION Upon receipt of the unit, carefully remove the contents from the boxes and check for damage. DYMAX is not responsible for damage from shipping – all claims for shipping damage should be made with the carrier. Check all boxes for contents and write down any serial numbers for further reference. You may wish to retain the original shipping cartons in case you need to repackage any item for return.
Page 5: Safety
L’équipment ètre concu pour ètre utilisé correctement constituer, avec composants brancher correctement, et marché en conformément avec instructions important. Le plan étais developer pour render au maxime opérateur sécurité et minimiser exposition à ultraviolette. ® DYMAX BlueWave 200 Version 1.1 UV Light-Curing Spot Lamp System...
Page 6 UV EXPOSURE Standard DYMAX UV light-curing systems and bulbs have been designed to primarily emit UVA light (as shown in Chart 1). UVA light is generally considered the safest of the three UV ranges: UVA, UVB, and UVC. Although OSHA does not currently regulate ultraviolet light exposure in the workplace, the American Conference of Governmental Industrial Hygienists (ACGIH) does recommend Threshold Limit Values (TLV′s) for ultraviolet light.
Page 7: Safety
OZONE Standard DYMAX bulbs (UVA type) generate an insignificant amount of UVC and therefore essentially no ozone. Some UV light-curing systems, like those used to cure UV inks, emit primarily “shortwave” (UVB and UVC) energy. Upon exposure to UVC light (specifically <240 nm), oxygen molecules (O...
Page 8: General Information
The Cooling Fan must not be covered or otherwise blocked. The UV source is a 200-Watt short-arc mercury-vapor Bulb mounted in a Reflector and pre-focused to provide optimum light output. The unit is rated for continuous operation. ® DYMAX BlueWave 200 Version 1.1 UV Light-Curing Spot Lamp System...
Page 9: Specifications
¹ Measured with an EIT Spotcure Radiometer or an ACCU-CAL™ 50 Radiometer using a Lightguide Simulator and standard internal “Cool Blue” Filter. UV Spectral Output Dual Filter No Filter Black Light Standard Filter Wavelength Figure 2. 200W Bulb Spectral Chart ® DYMAX BlueWave 200 Version 1.1 UV Light-Curing Spot Lamp System...
Page 10: Installation And System Interconnect
Remove the protective end caps from the Lightguide. Visually inspect the two ends of the Lightguide to verify that no foreign material is present. The ends of a DYMAX liquid-filled Lightguide Figure 3. Cable Connection, can be cleaned with isopropyl alcohol as required to remove BlueWave 200 Rear Panel foreign material and deposition from outgassing.
Page 11: Settings & Adjustments
SETTING THE CYCLE DURATION The Shutter Timer located on the front panel of the BlueWave 200 is factory set to the most common operating mode and recommended operation of the Shutter Timer with the BlueWave 200. Some modes available on this Shutter Timer may not operate correctly with the BlueWave 200 unit and have been disabled.
Page 12 • Digit Increment 1-4: Pressing these buttons up or down will increment or decrement that digit by one. The timer digits are formatted MM:SS for a maximum Shutter time of 99 minutes and 0.99 seconds. Consult DYMAX for information on changing the format of this Timer.
Page 13: Lamp Dual-Hour Meter
Ensure that the Power Cord is unplugged from the rear of the unit. Remove the top cover from the BlueWave 200 by loosening the four cover fasteners. Unplug the Bulb and Lift the Bulb Mounting Bracket (Figure 13) from it. Remove the Bulb from the Bulb Mount (Figure 14).
Page 14 Figure 23. Hour Meter Reset Button This completes Bulb installation. The Bulb will now ignite. If the Bulb does not light, repeat instruction 5. The unit is now reset to operate for 2,000 hours. ® DYMAX BlueWave 200 Version 1.1 UV Light-Curing Spot Lamp System...
Page 15: Operation
Pin 1 – Shutter Activate This signal line may be used to remotely open the BlueWave 200 Shutter. When it is being used, the local Shutter Enable Jack on the rear of the BlueWave is still capable of opening the Shutter. Similar to the local Shutter Enable, if the Timer/Manual Switch is in timer mode, the Shutter will stay open for the time set on the Timer.
Page 16 Pin 8 will be shorted to Pin 4 when the Bulb is lit. Pin 8 will be open with respect to Pin 4, during startup prior to the Bulb lighting, or if the Bulb has failed. ® DYMAX BlueWave 200 Version 1.1 UV Light-Curing Spot Lamp System...
Page 17 Figure 10 shows the suggested relationship for both inputs and outputs between the BlueWave 200 and a PLC system. The component values shown are appropriate for a 24 VDC PLC Power Supply to limit current flow to safe levels for the opto-coupler devices within the BlueWave 200. Figure 27. 9-Pin I/O Signals ®...
Page 18: Maintenance
Fuse Holder with a small screwdriver. Remove the Fuses from the Fuse Holder and install new Fuses. Replace the Fuse Holder into the Power Receptacle. The correct Fuses are DYMAX PN 37869, 4.0 Amp fast-acting type. Figure 30. Power Receptacle Figure 31.
Page 19: Troubleshooting
Main line Fuse blown Receptacle and check it with an Replace the Fuse if defective. (nothing in unit operates) Ohmmeter. Use a Radiometer (DYMAX Replace the Bulb/reflector Bulb beyond useful life ACCU-CAL™ 50 or equivalent) to assembly if beyond useful life measure output intensity.
Page 20 Hour Meter will alternate between "Change Bulb" and "2000.0", and the Bulb will not light. When this happens, the BlueWave 200 will no longer supply an ignition voltage until a new Bulb is installed and the Reset Switch is pressed on the back of the unit. The power must be on for this reset to be performed.
Page 21: Spare Parts List
Liquid-D Four Pole Lightguide, 3 mm X 1 Meter 38478 UV Goggles – Green 35286 UV Goggles – Gray 35285 Face Shield 35186 DYMAX ACCU-CAL™ 50 Radiometer 39560 Lightguide Simulator 38408 ® DYMAX BlueWave 200 Version 1.1 UV Light-Curing Spot Lamp System...
Page 22: Definition Of Terms
Ultraviolet (UV) - The invisible region of the spectrum just beyond the violet end of the visible region. Wavelength ranges in general from 1.0 to 400 nm. DYMAX bulbs (burners) do not radiate energy in deep ultraviolet; there are very minute amounts below 220 nm and practically nothing can be sensed below 200 nm.
Page 23: Warranty
If the Bulb fails to ignite during the warranty period of 2,000 hours and all Bulb history cards for a specific BlueWave 200 have been returned to DYMAX, the Bulb will be replaced under warranty. No other warranties are implied or expressed.
Page 24 © 2006-2011 DYMAX Corporation. All rights reserved. All trademarks in this guide, except where noted, are the property of, or used under license by DYMAX Corporation, U.S.A. Please note that most dispensing and curing system applications are unique. DYMAX does not warrant the fitness of the product for the intended application. Any warranty applicable to the product, its application and use is strictly limited to that contained in DYMAX’s standard Conditions of Sale.
