dymax BlueWave 200 Operation Manual
Uv light-curing spot lamp system with patented intensify control adjastment
Hide thumbs
Also See for BlueWave 200:
- User manual (40 pages) ,
- Operation manual (24 pages) ,
- Quick start instructions (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for dymax BlueWave 200
Summary of Contents for dymax BlueWave 200

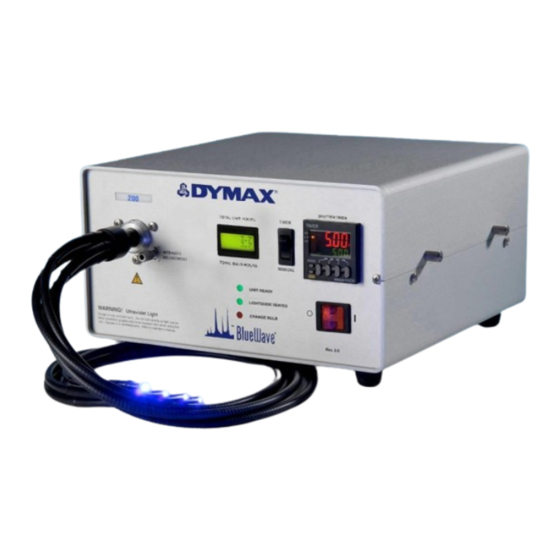

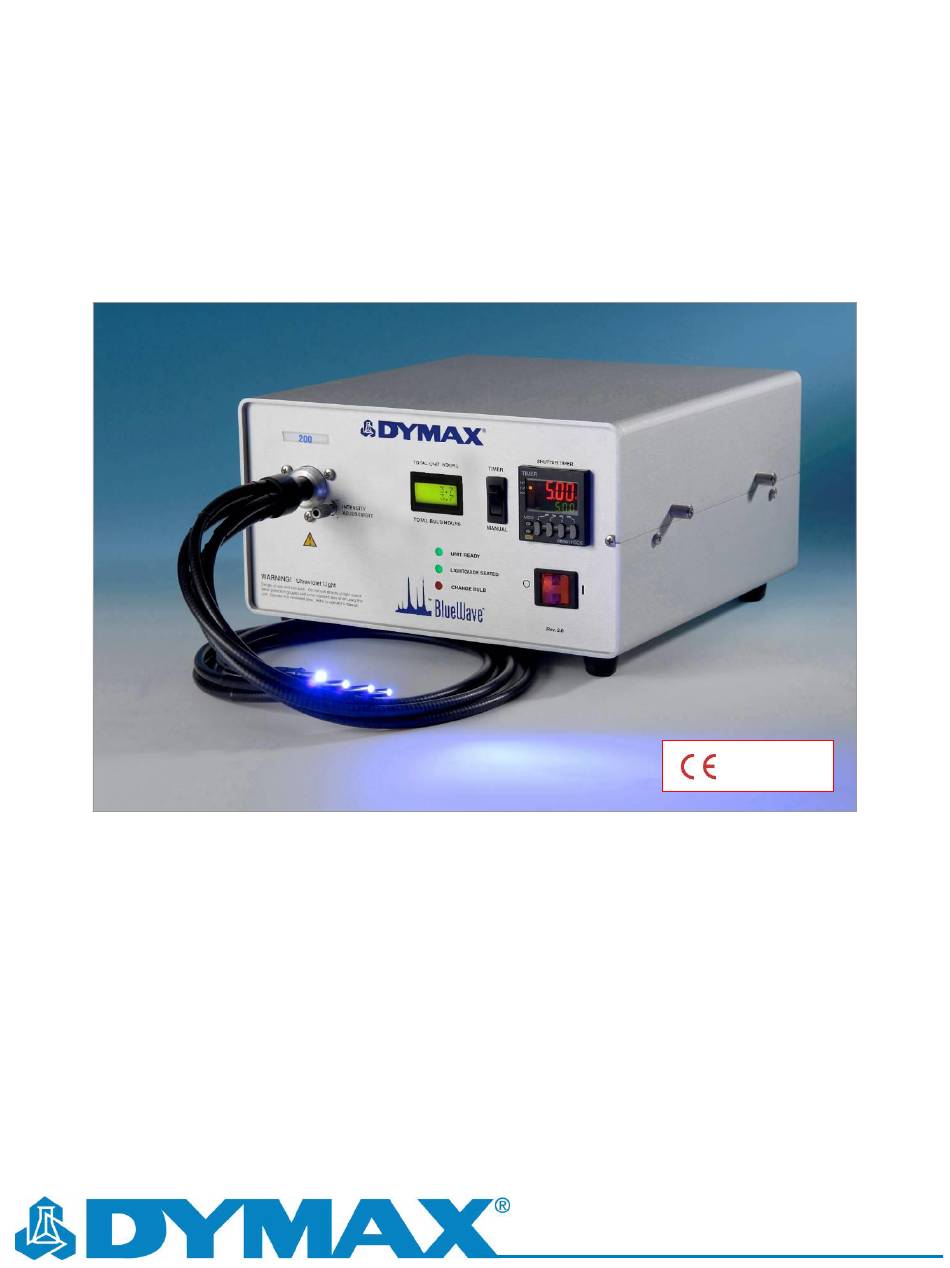

- Page 1 ® BlueWave 200 Version 2.0 UV Light-Curing Spot Lamp System with Patented Intensity Control Adjustment Marked ® BlueWave 200 Version 2.0 (PN 40080 - North American/PN 40075 - International) shown with 4-Pole Lightguide Operation Manual...
-
Page 2: Table Of Contents
Maintenance ........................... Page 17 Troubleshooting ..........................Page 18 Frequently Asked Questions ......................Page 19-20 Spare Parts List ..........................Page 21 Definition of Terms .......................... Page 22 Warranty ............................Page 23 ® DYMAX BlueWave 200 Version 2.0 UV Light-Curing Spot Lamp System... -
Page 3: Introduction
The enclosed BlueWave 200 UV Light-Curing Spot Lamp System was developed and manufactured by the DYMAX team, driven by a desire to best serve your needs. Before shipping, your BlueWave 200 was thoroughly checked and tested for trouble-free performance. The proper set up and operation of this Spot Lamp System will maximize safety and user-friendly performance, providing optimum yield of your technological process. -
Page 4: Unpacking And Inspection
UNPACKING AND INSPECTION Upon receipt of the unit, carefully remove the contents from the boxes and check for damage. DYMAX is not responsible for damage from shipping – all claims for shipping damage should be made with the carrier. Check all boxes for contents and write down any serial numbers for further reference. You may wish to retain the original shipping cartons in case you need to repackage any item for return. -
Page 5: Safety
L’équipment ètre concu pour ètre utilisé correctement constituer, avec composants brancher correctement, et marché en conformément avec instructions important. Le plan étais developer pour render au maxime opérateur sécurité et minimiser exposition à ultraviolette. ® DYMAX BlueWave 200 Version 2.0 UV Light-Curing Spot Lamp System... - Page 6 UV exposure, high-temperature surfaces, ozone, and bright, visible light. UV EXPOSURE Standard DYMAX UV light-curing systems and bulbs have been designed to primarily emit UVA light (as shown in Chart 1). UVA light is generally considered the safest of the three UV ranges: UVA, UVB, and UVC. Although OSHA does not currently regulate ultraviolet light exposure in the workplace, the American Conference of Governmental Industrial Hygienists (ACGIH) does recommend Threshold Limit Values (TLVs) for ultraviolet light.
- Page 7 OZONE Standard DYMAX bulbs (UVA type) generate an insignificant amount of UVC and therefore essentially no ozone. Some UV light-curing systems, like those used to cure UV inks, emit primarily “shortwave” (UVB and UVC) energy. Upon exposure to UVC light (specifically <240 nm), oxygen molecules (O...
-
Page 8: Description
Tinted eye protection and/or opaque/tinted shielding can be utilized to address this concern. SUMMARY UV light sources can be more “worker friendly” than many commonly accepted industrial processes, provided the potential concerns are addressed. Contact your DYMAX representative for information regarding the proper use of DYMAX UV light-curing systems. DESCRIPTION ®... -
Page 9: Specifications
¹ Measured with an EIT Spotcure Radiometer or an ACCU-CAL™ 50 Radiometer using a Lightguide Simulator and standard internal “Cool Blue” Filter. UV Spectral Output Dual Filter No Filter Black Light Standard Filter Wavelength Figure 2. 200W Bulb Spectral Chart ® DYMAX BlueWave 200 Version 2.0 UV Light-Curing Spot Lamp System... -
Page 10: Installation And System Interconnect
4. Remove the protective end caps from the Lightguide. Visually inspect the two ends of the Lightguide to verify that no foreign material is present. The ends of a DYMAX liquid- filled Lightguide can be cleaned with isopropyl alcohol as required to remove foreign material and deposition from outgassing. -
Page 11: Settings And Adjustments
Figure 8. Intensity Adjustment with Knob with Tool INTENSITY VALIDATION Prior to production, DYMAX advises customers to conduct testing to determine the time and intensity required to fully cure their resin in their specific application. Typically, users validate by one of the following methods: ... - Page 12 The Shutter Timer located on the front panel of the BlueWave 200 is factory set to the most common operating mode and recommended operation of the Timer with the BlueWave 200. Some modes available on the Timer may not operate correctly with the BlueWave 200 unit.
- Page 13 3. Unplug the Bulb and Lift the Bulb Mounting Bracket (Figure 13) from it. Remove the Bulb from the Bulb Mount (Figure 14). Figure 12. Bulb Installed in Figure 13. Lift Bulb Mounting Bracket Figure 14. Remove Bulb from Bulb Mount Bulb Mount ® DYMAX BlueWave 200 Version 2.0 UV Light-Curing Spot Lamp System...
-
Page 14: Operation
Figure 22. Reset Button 6. Plug in and turn on the BlueWave 200. Press and release the red Reset Button on the back of the unit (Figure 22).This completes Bulb installation. When the unit is turned on, the Bulb will now ignite and is now reset to operate for 2,000 hours. - Page 15 Pin 3 – Remote Shutter Activate (activate low): This signal line may be used to remotely open the BlueWave 200's Shutter. When it is being used, the local Shutter Enable Jack on the rear of the BlueWave 200 is still capable of opening the Shutter.
- Page 16 Figure 27 shows the suggested relationship for both inputs and outputs between the BlueWave 200 and a PLC system. The component values shown are appropriate for a 24 VDC PLC power supply to limit current flow to safe levels for the opto-coupler devices within the BlueWave 200. Figure 27. 15-Pin I/O Signals ®...
-
Page 17: Maintenance
The unit has two Fuses that are installed in the Power Receptacle. To remove the Fuses, unplug the unit and remove the Fuse Holder with a small screwdriver. Remove the Fuses from the Fuse Holder and install new Fuses. Replace the Fuse Holder into the Power Receptacle. The correct Fuses are DYMAX PN 37869, 4.0 Amp fast-acting type. -
Page 18: Troubleshooting
Main line Fuse blown Power Receptacle and check it Replace the Fuse if defective. (nothing in unit operates) with an Ohmmeter. Use a Radiometer (DYMAX Replace the Bulb/reflector Bulb beyond useful life ACCU-CAL™ 50 or equivalent) assembly if beyond useful life to measure output intensity. -
Page 19: Frequently Asked Questions
Q.) I installed a new Bulb, and it still will not ignite. A.) The BlueWave 200 has a safety shutdown feature at 2,000 hours. If the equipment has reached the safety shutdown point, the Hour Meter will alternate between "CHANGE BULB" and "2000.0" and the Bulb will not light. - Page 20 D.) Incorrect alignment of the Shutter to the Bulb Mount Assembly. Q.) Why does my BlueWave 200 seem to run very hot? A.) Replace the Fan Filter Media on the Exhaust Fan and vent located in the back of the equipment. This is your first line of defense against airborne dust and debris.
-
Page 21: Spare Parts List
Fiber Optic 2-pole Lightguide, 3 mm x 1 Meter 39783 Fiber Optic 3-Pole Lightguide, 3 mm x 1 Meter 39787 Fiber Optic 4-Pole Lightguide, 3 mm x 1 Meter 39791 DYMAX ACCU-CAL™ 50 Radiometer (Spot Model) 39560 Lightguide Simulator 38408 ® DYMAX BlueWave... -
Page 22: Definition Of Terms
Ultraviolet (UV) - The invisible region of the spectrum just beyond the violet end of the visible region. Wavelength ranges in general from 1.0 to 400 nm. DYMAX bulbs (burners) do not radiate energy in deep ultraviolet; there are very minute amounts below 220 nm and practically nothing can be sensed below 200 nm. This is due to the use of ozone-blocking quartz Bulb Envelope (See Ozone). -
Page 23: Warranty
Bulb, with proof of purchase date. Unauthorized repair, modification, or improper use of equipment may void warranty. The use of aftermarket replacement parts not supplied or approved by DYMAX Corporation, will void any effective warranties and may result in damage to the equipment. - Page 24 Dymax’s standard Conditions of Sale. Dymax recommends that any intended application be evaluated and tested by the user to insure that desired performance criteria are satisfied. Dymax is willing to assist users in their performance testing and evaluation by offering equipment trial rental a nd leasing programs to assist in such testing and evaluations. Data sheets are available for valve controllers or pressure pots upon request.
