Set the Top–of–Form
When you start this procedure, verify that the printer is in online mode, with the
printer cover open and the forms thickness lever lowered.
1. Set the power switch to I (On).
2. Press ON LINE to place the printer in offline mode. The LCD will then display
"OFFLINE / CONFIG. CONTROL."
3. Press PAPER ADVANCE several times to ensure the paper feeds properly
beyond the tractors and over the lower paper path. Ensure the paper folds in
the same way in the stacking area as it does in the supply area.

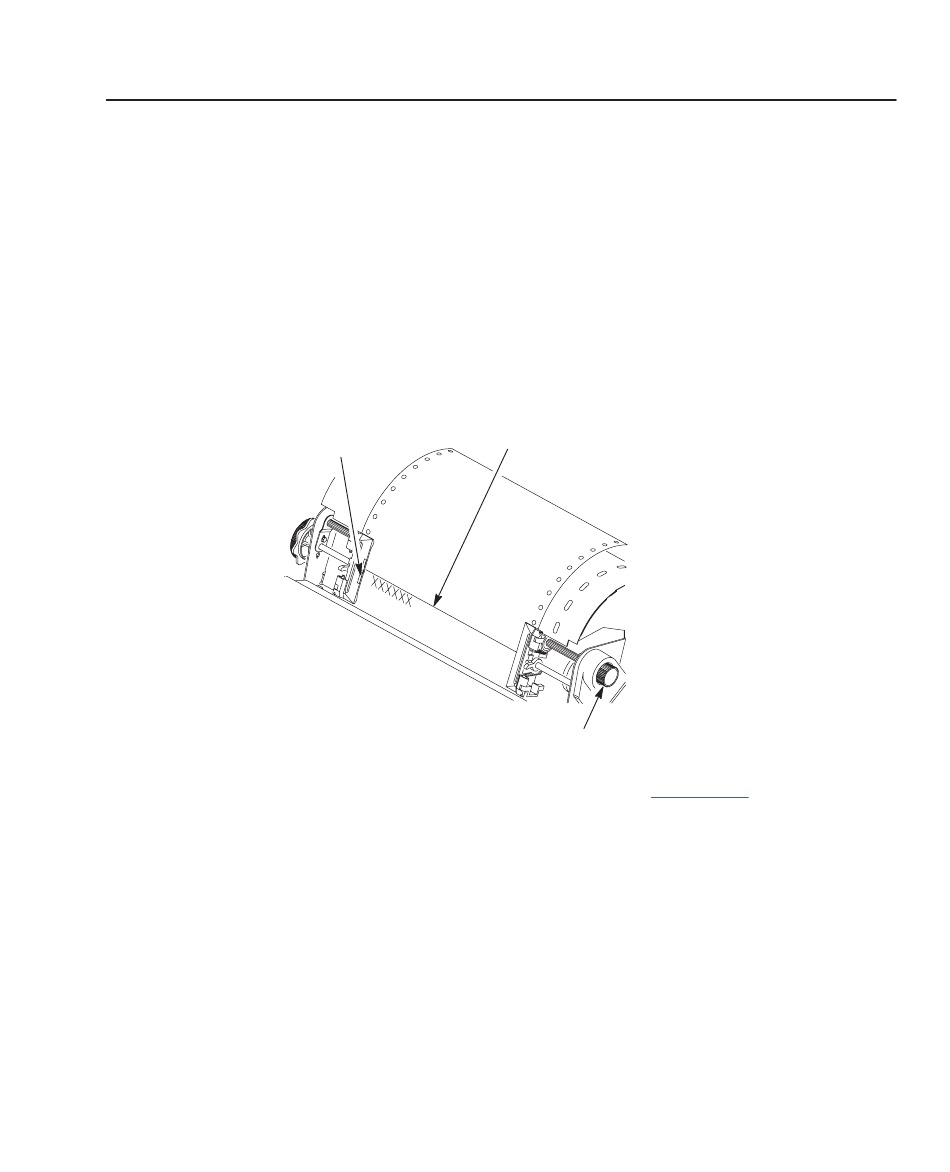

TOF Indicator
4. Raise the forms thickness lever as far as it will go. (See
you to turn the vertical position knob freely in order to align the top–of–form.
5. Locate the TOF indicator. It is the small tab located on both the right and left
tractor door.
6. Turn the vertical position knob to align the top of the first print line with the
TOF indicator.
7. Lower the forms thickness lever.
8. Press Set TOF.
