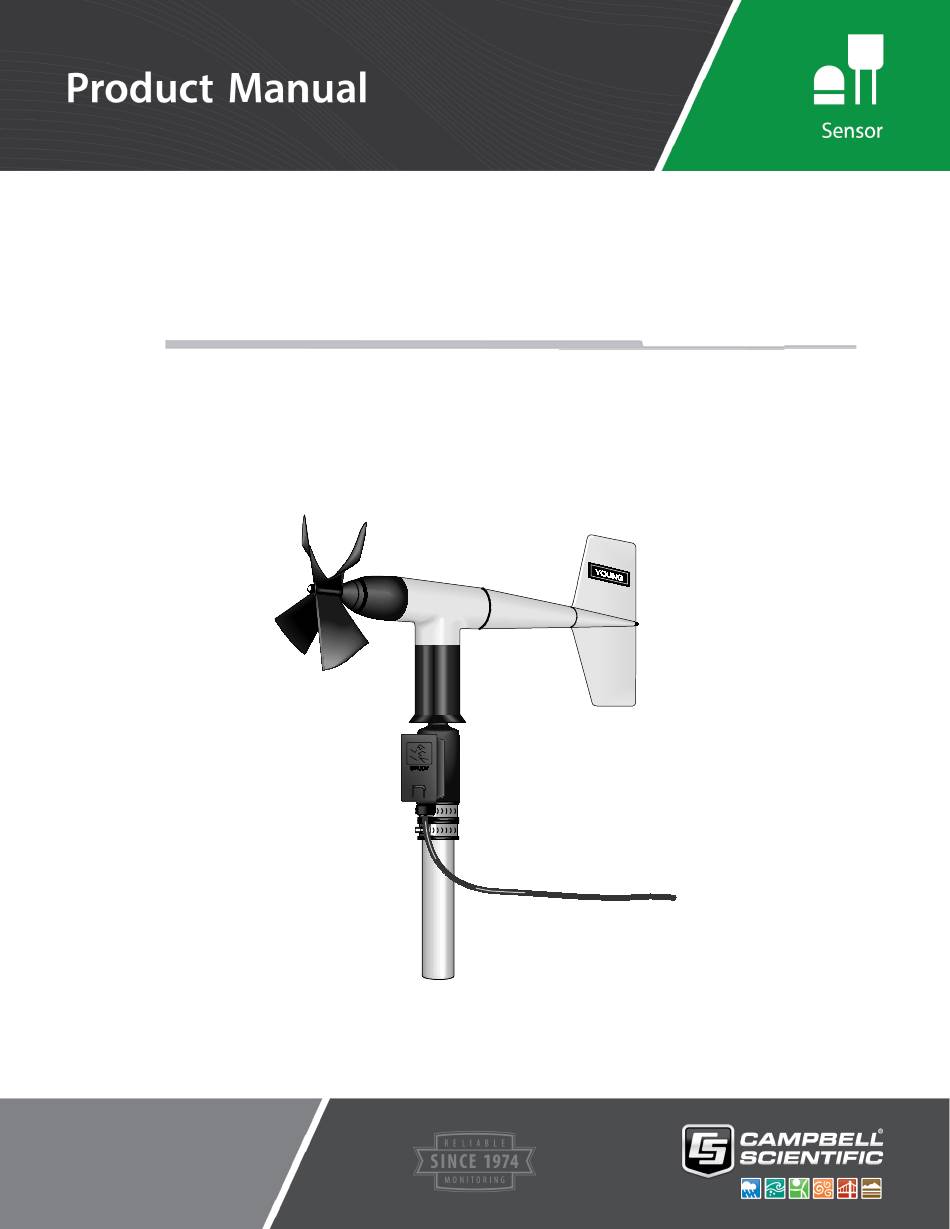

Campbell 05103 Product Manual

Campbell 05103 Product Manual

Wind monitor series
Hide thumbs Also See for 05103:

Advertisement

Quick Links

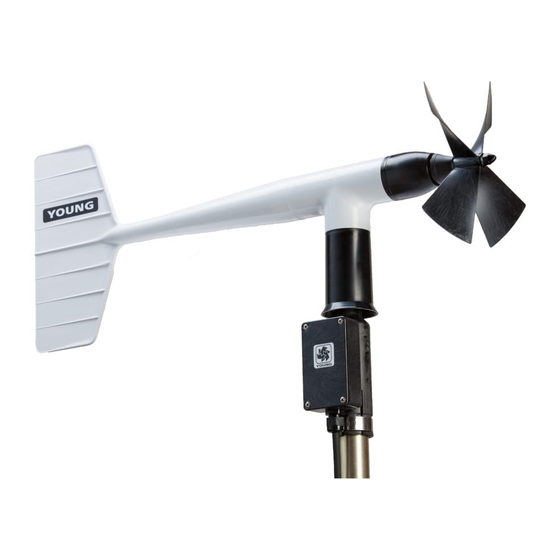

Wind Monitor Series
05103, 05103-45, 05106,
05108, 05108-45, and 05305
Revision: 9/19
Copyright © 1984 – 2018
Campbell Scientific, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 05103 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Campbell 05103

  • Page 1 Wind Monitor Series 05103, 05103-45, 05106, 05108, 05108-45, and 05305 Revision: 9/19 Copyright © 1984 – 2018 Campbell Scientific, Inc.
  • Page 2 Limited Warranty “Products manufactured by CSI are warranted by CSI to be free from defects in materials and workmanship under normal use and service for twelve months from the date of shipment unless otherwise specified in the corresponding product manual. (Product manuals are available for review online at www.campbellsci.com.) Products not manufactured by CSI, but that are resold by CSI, are warranted only to the limits extended by the original manufacturer.
  • Page 3 Campbell Scientific company serves your country. To obtain a Returned Materials Authorization (RMA) number, contact CAMPBELL SCIENTIFIC, INC., phone (435) 227-9000. Please write the issued RMA number clearly on the outside of the shipping container. Campbell Scientific’s shipping address is: CAMPBELL SCIENTIFIC, INC.
  • Page 4 Periodically (at least yearly) check electrical ground connections. • WHILE EVERY ATTEMPT IS MADE TO EMBODY THE HIGHEST DEGREE OF SAFETY IN ALL CAMPBELL SCIENTIFIC PRODUCTS, THE CUSTOMER ASSUMES ALL RISK FROM ANY INJURY RESULTING FROM IMPROPER INSTALLATION, USE, OR MAINTENANCE OF TRIPODS, TOWERS, OR ATTACHMENTS TO TRIPODS AND TOWERS SUCH AS SENSORS, CROSSARMS, ENCLOSURES, ANTENNAS, ETC.
  • Page 5: Table Of Contents

    Table of Contents PDF viewers: These page numbers refer to the printed version of this document. Use the PDF reader bookmarks tab for links to specific sections. 1. Introduction..............1 2. Precautions ..............1 3. Initial Inspection ............2 Ships With ....................2 4.
  • Page 6 ..................C-2 C-3. Declination angles west of true north are added to 0 to get true north ....................C-3 D-1. 05103 potentiometer in a half bridge circuit ........D-1 Tables 1-1. R.M. Young Wind Monitors Models ...........1 5-1.
  • Page 7: Introduction

    Scientific may not correspond with the wire colors and functions given in the manufacturer’s manual. To ensure proper function, follow the wiring provided in Short Cut or in the Campbell Scientific manual. • Wind monitors purchased directly from R.M. Young may not have the...
  • Page 8: Initial Inspection

    File damage claims with the shipping company. Immediately check package contents against the shipping documentation (see Section 3.1, Ships With ). Contact Campbell Scientific about any discrepancies. (p. 2) • The model number and cable length are printed on a label at the connection end of the cable.
  • Page 9 Wind Monitor Series In the Available Sensors and Devices box, type 05103, 05106, or 05305-AQ or locate the sensor in the Sensors | Meteorological | Wind Speed & Direction folder. Double-click 05103 Wind Speed & Direction Sensor, 05106 Wind Speed & Direction Sensor, or 05305-AQ Wind Speed &...
  • Page 10: Overview

    Wind Monitor Series In Output Setup, enter the scan rate, Data Output Storage Intervals, and meaningful table names. Select the measurement and its associated output options. Click Finish and save the program. Send the program to the data logger if the data logger is connected to the computer.
  • Page 11: Specifications

    Wind Monitor Series The wind monitors are manufactured by R.M. Young and cabled by Campbell Scientific for use with our data loggers. Cable lengths for the wind monitors are specified when the sensors are ordered. TABLE gives the recommended cable length for mounting the sensor at the top of the tripod/tower by using a CM200-series crossarm.
  • Page 12: Wind Speed Specifications

    Wind Monitor Series TABLE 6-1. Wind Speed Specifications 05108 05108-45 05103-45 Heavy Heavy Duty 05103 Wind 05106 Duty Wind Wind Monitor- Wind Wind Monitor- 05305 Monitor Alpine Monitor-MA Monitor Alpine Wind Monitor-AQ 0 to 50 m s –1 Range 0 to 100 m s –1...
  • Page 13: Wind Direction Specifications

    Wind Monitor Series TABLE 6-2. Wind Direction Specifications 05108 05108-45 05103-45 Heavy Heavy Duty 05305 05103 Wind 05106 Duty Wind Wind Wind Monitor- Wind Wind Monitor- Monitor- Monitor Alpine Monitor-MA Monitor Alpine Range 0° to 360° mechanical, 355° electrical (5° open) Accuracy ±3°...
  • Page 14: Installation

    Wind Monitor Series Installation If you are programming your data logger by using Short Cut, skip Section 7.3, Wiring , and Section 7.4, Programming . Short Cut does this work for (p. 11) (p. 11) you. See Section 4, QuickStart , for a Short Cut tutorial.
  • Page 15: Cm220 Right Angle Mounting Kit Mounted To A Crossarm

    Wind Monitor Series the data logger has been programmed to measure wind direction as described in Appendix C, Wind Direction Sensor Orientation (p. C-1) Use the torpedo level to ensure that the wind monitor is level. Route the sensor cable along the underside of the crossarm to the tripod or tower, and to the instrument enclosure.
  • Page 16: Mounting The Wind Monitor Atop A Tripod Mast

    Wind Monitor Series Wind Monitor 1- x 1-in. Nu-Rail Crossover Fitting CM200 Series Crossarm Mounting Pipe (supplied with sensor) FIGURE 7-2. Wind monitor mounted to a crossarm by using 1- x 1-in. Nu-Rail Crossover Fitting 7.2.2 Mounting the Wind Monitor Atop a Tripod Mast The wind monitor mounts on top of a CM106B, CM110, CM115, or CM120 tripod by using the CM216 (see FIGURE 7-3).
  • Page 17: Wiring

    Wind Monitor Series Wiring Connections to Campbell Scientific data loggers are given in TABLE 7-1. When Short Cut software is used to create the data logger program, the sensor is wired to the terminals shown in the wiring diagram created by Short Cut.
  • Page 18: Wind Speed

    Hz. TABLE 7-2. Wind Speed Multiplier Miles/ Meters/ Model Hour Output Second Output 05103, 05103-45, or 05106 0.2192 0.0980 05108 or 05108-45 0.3726 0.1666 05305 0.2290 0.1024...
  • Page 19: Wind Vector Processing Instruction

    Replace the potentiometer when the noise or non-linearity becomes unacceptable. The condition of the vertical shaft (vane) bearings can be checked by using R.M. Young’s Vane Torque Gauge. NOTE Campbell Scientific recommends factory replacement of the bearings and potentiometer. Refer to the Assistance page of this document for the procedure of acquiring a Returned Materials Authorization (RMA).
  • Page 20: Troubleshooting

    Wind Monitor Series Troubleshooting Wind Direction Symptom: NAN, –9999, or no change in direction Check that the sensor is wired to the excitation and single-ended terminal specified by the measurement instruction. Verify that the excitation voltage and range code are correct for the data logger type.
  • Page 21 Wind Monitor Series EPA, 1987: On-Site Meteorological Program Guidance for Regulatory Modeling Applications, EPA-450/4-87-013, Office of Air Quality Planning and Standards, Research Triangle Park, NC 27711. The State Climatologist, 1985: Publication of the American Association of State Climatologists: Height and Exposure Standards, for Sensors on Automated Weather Stations, vol.
  • Page 22: Importing Short Cut Code Into Crbasic Editor

    Appendix A. Importing Short Cut Code Into CRBasic Editor Short Cut creates a .DEF file that contains wiring information and a program file that can be imported into the CRBasic Editor. By default, these files reside in the C:\campbellsci\SCWin folder. Import Short Cut program file and wiring information into CRBasic Editor: Create the Short Cut program.
  • Page 23: Example Programs

    Appendix B. Example Programs The following programs measure the 05103 every 5 s, and store mean wind speed, unit vector mean direction, and standard deviation of the direction every 60 minutes. Wiring for the examples is given in TABLE B-1.
  • Page 24: Cr6 Example Program

    'Main Program BeginProg 'Main Scan Scan(5,Sec,1,0) 'Default Data Logger Battery Voltage measurement 'BattV' Battery(BattV) 'Default Wiring Panel Temperature measurement 'PTemp_C' PanelTemp(PTemp_C,60) '05103 Wind Speed & Direction Sensor measurements 'WS_ms' and 'WindDir' 'WS_ms PulseCount(WS_ms,1,U4,5,1,0.098,0) 'WindDir BrHalf(WindDir,1,mV5000,U2,U1,1,2500,True,20000,60,355,0) WindDir>=360 OR WindDir<0 Then WindDir=0...
  • Page 25: Cr200(X) Example Program

    FieldNames("WS_ms_S_WVT,WindDir_D1_WVT,WindDir_SD1_WVT") EndTable 'Main Program BeginProg 'Main Scan Scan(5,Sec) 'Default Data Logger Battery Voltage measurement 'BattV' Battery(BattV) '05103 Wind Speed & Direction Sensor measurements 'WS_ms' and 'WindDir' 'WS_ms PulseCount(WS_ms,P_LL,1,1,0.098,0) 'WindDir ExDelSE(WindDir,1,1,1,mV2500,20000,0.142,0) WindDir>=360 Or WindDir<0 Then WindDir=0 'Call Data Tables and Store Data...
  • Page 26: Wind Direction Sensor Orientation

    Appendix C. Wind Direction Sensor Orientation C.1 Determining True North and Sensor Orientation Orientation of the wind direction sensor is done after the data logger has been programmed, and the location of true north has been determined. True north is usually found by reading a magnetic compass and applying the correction for magnetic declination;...
  • Page 27: True North

    Appendix C. Wind Direction Sensor Orientation FIGURE C-1. Magnetic declination for the contiguous United States (2015) FIGURE C-2. Declination angles east of true north are subtracted from 0 to get true north...
  • Page 28: Declination Angles West Of True North Are Added To 0 To Get True

    Appendix C. Wind Direction Sensor Orientation FIGURE C-3. Declination angles west of true north are added to 0 to get true north...
  • Page 29 Measurement Theory It is not necessary to understand the concepts in this section for the general operation of the 05103 with a Campbell Scientific data logger. FIGURE D-1. 05103 potentiometer in a half bridge circuit The BRHalf CRBasic instruction outputs a precise excitation voltage (V...
  • Page 30 INFO Global Sales & Support Network A worldwide network to help meet your needs Australia France Thailand Garbutt, QLD Australia Vincennes, France Bangkok, Thailand Location: Location: Location: 61.7.4401.7700 0033.0.1.56.45.15.20 66.2.719.3399 Phone: Phone: Phone: info@campbellsci.com.au info@campbellsci.fr thitipongc@campbellsci.asia Email: Email: Email: www.campbellsci.com.au www.campbellsci.fr www.campbellsci.asia Website:...
