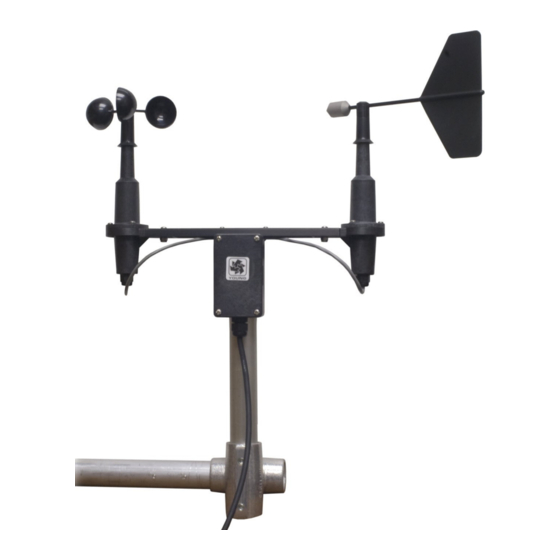

Campbell Wind Sentry 03002 Product Manual

Hide thumbs Also See for Wind Sentry 03002:
Table of Contents

Advertisement

Quick Links

Download this manual
Revision: 07/2022
Copyright © 1986 – 2022
Campbell Scientific, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wind Sentry 03002 and is the answer not in the manual?

Questions and answers

Related Manuals for Campbell Wind Sentry 03002

Summary of Contents for Campbell Wind Sentry 03002

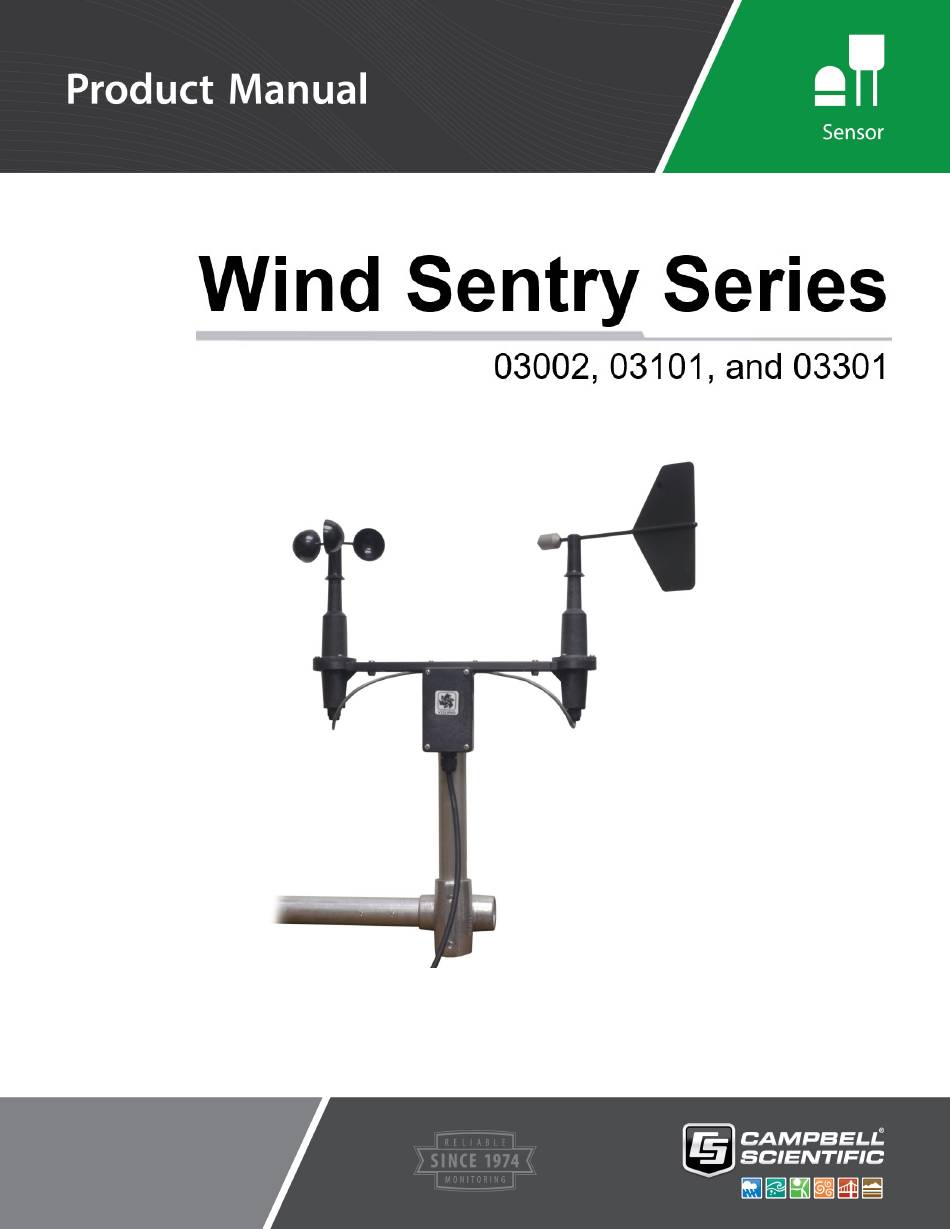

  • Page 1 Revision: 07/2022 Copyright © 1986 – 2022 Campbell Scientific, Inc.

  • Page 2: Table Of Contents

    Table of contents 1. Introduction 2. Precautions 3. Initial inspection 4. QuickStart 5. Overview 6. Specifications 6.1 Wind speed (anemometer) 6.2 Wind direction (vane) 6.3 Wind sentry assembly 7. Installation 7.1 Wiring 7.2 Programming 7.2.1 Wind speed 7.2.2 Wind direction 7.2.3 WindVector processing instruction 7.3 Siting 7.4 Assembly and mounting the 03002...
  • Page 3 Appendix D. Wind direction measurement theory Table of Contents - ii...

  • Page 4: Introduction

    Wire color and functions of sensors purchased through Campbell Scientific may not correspond with the wire colors and functions given in the manufacturer’s manual. To ensure proper function, follow the wiring provided in Short Cut or in the Campbell Scientific manual.

  • Page 5: Quickstart

    The model number and cable length are printed on a label at the connection end of the cable. Check this information against the shipping documents to ensure the expected product and cable length are received. The sensor is shipped with the cup wheel unattached to the anemometer shaft. Refer to the Assembly and mounting the 03002 (p.
  • Page 6 4. Click on the Wiring tab to see how the sensor is to be wired to the data logger. Click OK after wiring the sensor. 5. Select any other sensors you have, then finish the remaining Short Cut steps to complete the program.

  • Page 7: Overview

    This is a special version of the 03102 built for Campbell Scientific by R. M. Young that has shielded bearings rather than sealed bearings. The shielded bearings provide a lower starting threshold than sealed bearings.

  • Page 8: Specifications

    Small size, simplicity, and rugged construction provide a quality instrument for a modest price Ideal for wind profile studies Campbell Scientific version uses shielded bearings, which lowers the anemometer starting threshold Compatible with the LLAC4 4-channel Low Level AC Conversion Module, which increases...

  • Page 9: Wind Direction (Vane)

    Accuracy: ±0.5 m/s (1.1 mph) Turning factor: 75 cm (2.5 ft) Distance constant (63% recovery): 2.3 m (7.5 ft) Threshold: 0.5 m/s (1.1 mph) Transducer: Stationary coil, 1300-ohm nominal resistance Output: AC sine wave signal induced by rotating magnet on cup wheel shaft 100 mV peak-to-peak at 60 rpm;...

  • Page 10: Wind Sentry Assembly

    6.3 Wind sentry assembly Operating temperature: –50 to 50 °C assuming non-riming conditions Overall height: 32 cm (12.6 in) Crossarm length: 40 cm (15.7 in) between instruments (center-to-center) Mounting diameter: 34 mm (1.34 in), mounts on standard 1 inch IPS pipe 7.
  • Page 11 Table 7-2: 03101 anemometer wire color, wire function, and data logger connection Wire color Wire function Data logger connection terminal U configured for pulse input , P (pulse input), Black WS signal or P_LL (pulse, low-level ac) White WS signal reference ⏚...

  • Page 12: Programming

    7.2 Programming Short Cut is the best source for up-to-date data logger programming code. If your data acquisition requirements are simple and you are connecting the sensor to a pulse terminal, you can probably create and maintain a data logger program exclusively by using Short Cut. If your data acquisition needs are more complex, the files that Short Cut creates are a great source for programming code to start a new program or add to an existing custom program.

  • Page 13: Wind Direction

    Table 7-4: Wind speed multiplier (with pulse terminal configuration set to Low Level AC, output “Hz”) Model Meters/second Miles/hour M = 0.750 M = 1.677 03002 / 03101 Off = 0.2 Off = 0.4 *When the pulse terminal configuration is set to Low Level AC, output “counts”, the multiplier above is divided by the execution interval in seconds.

  • Page 14: Windvector Processing Instruction

    7.2.3 WindVector processing instruction WindVector output is used to process and store mean wind speed, unit vector mean wind direction, and standard deviation of the wind direction (optional) by using the measured wind speed and direction samples. 7.3 Siting Locate wind sensors away from obstructions such as trees or buildings. Generally, there should be a horizontal distance of at least ten times the height of the obstruction between the wind monitor and the obstruction.
  • Page 15 2. Mount a crossarm to a tripod or tower. Figure 7-1. 03002 mounted to a crossarm with 1 x 1 inch Nu-Rail fitting 3. If a pyranometer is also being mounted on the crossarm, orient the crossarm north-south with the Nu-Rail on the end farthest from the equator. Otherwise, the crossarm may be oriented north-south, east west, or any other angle desired.

  • Page 16: Mounting The 03101 Anemometer To A Crossarm

    Figure 7-2. CM221 Right-Angle Mounting Kit Figure 7-3. The CM216 allows an 03002 or 03101 to mount atop a tripod mast 7.5 Mounting the 03101 anemometer to a crossarm 1. Install the cup wheel to the anemometer shaft using the hex key wrench provided with the sensor.

  • Page 17: Mounting The 03301 Vane

    Figure 7-4. 03101 mounted to a crossarm via a 3/4 x 1 inch Nu-Rail fitting 7.6 Mounting the 03301 vane The 03301 wind vane has three mounting options: No Mounting (option –NM) is used when the 03301 will be replacing an existing 03301 within a Wind Sentry Set.

  • Page 18: Troubleshooting

    Replace the potentiometer when the noise or non-linearity becomes unacceptable. NOTE: Campbell Scientific recommends factory replacement of the bearings and potentiometer. Refer to the Assistance page of this document for the procedure of acquiring a Returned Materials Authorization (RMA).

  • Page 19: Wind Speed

    . Because Campbell Scientific cables the sensor, the wiring in the R. M. Young manual will be different than the wiring listed in this manual. The following references give detailed information on siting wind speed and wind direction sensors.

  • Page 20: Appendix A. Importing Short Cut Code Into Crbasic Editor

    Appendix A. Importing Short Cut code into CRBasic Editor Short Cut creates a .DEF file that contains wiring information and a program file that can be imported into the CRBasic Editor. By default, these files reside in the C:\campbellsci\SCWin folder. Import Short Cut program file and wiring information into CRBasic Editor: 1.

  • Page 21: Appendix B. Example Program

    Appendix B. Example program This example program measures the 03002 every 5 seconds, and stores mean wind speed, unit vector mean direction, and standard deviation of the direction every 60 minutes. Wiring for the example is given in Table B-1 (p.
  • Page 22 CRBasic Example 1: CR1000X program measuring the 03002 'CR1000X 'Declare Variables and Units Public Batt_Volt Public WS_ms Public WindDir Units Batt_Volt=Volts Units WS_ms=meters/second Units WindDir=Degrees 'Define Data Tables DataTable(Hour,True,-1) DataInterval(0,60,Min,10) WindVector (1,WS_ms,WindDir,FP2,False,0,0,0) FieldNames("WS_ms_S_WVT,WindDir_D1_WVT,WindDir_SD1_WVT") EndTable 'Main Program BeginProg Scan(5,Sec,1,0) 'Default Data Logger Battery Voltage measurement Batt_Volt: Battery(Batt_Volt) '03002 or 03101 RM Young Wind Sentry Wind Speed Sensor measurement 'WS_ms:...

  • Page 23: Appendix C. Wind Direction Sensor Orientation

    Appendix C. Wind direction sensor orientation C.1 Determining true north and sensor orientation Orientation of the wind direction sensor is done after the data logger has been programmed, and the location of true north has been determined. True north is usually found by reading a magnetic compass and applying the correction for magnetic declination;...
  • Page 24 Figure C-1. Magnetic declination for the contiguous United States (2015) Figure C-2. Declination angles east of true north are subtracted from 0 to get true north Wind Sentry Series...
  • Page 25 Figure C-3. Declination angles west of true north are added to 0 to get true north Wind Sentry Series...
  • Page 26 Appendix D. Wind direction measurement theory It is not necessary to understand the concepts in this section for the general operation of the 03002 with a Campbell Scientific data logger. Figure D-1. 03002 and 03301 potentiometer in a half bridge circuit BRHalf...
  • Page 27 See Product Details on the Ordering Information pages at www.campbellsci.com . Other manufacturer's products, that are resold by Campbell Scientific, are warranted only to the limits extended by the original manufacturer. Refer to www.campbellsci.com/terms#warranty for more information.
  • Page 28 To obtain a Returned Materials Authorization or Repair Reference number, contact your CAMPBELL SCIENTIFIC regional office. Please write the issued number clearly on the outside of the shipping container and ship as directed. For all returns, the customer must provide a “Statement of Product Cleanliness and Decontamination”...
  • Page 29 Do not recharge, disassemble, heat above 100 °C (212 °F), solder directly to the cell, incinerate, or expose contents to water. Dispose of spent batteries properly. WHILE EVERY ATTEMPT IS MADE TO EMBODY THE HIGHEST DEGREE OF SAFETY IN ALL CAMPBELL SCIENTIFIC PRODUCTS, THE CUSTOMER ASSUMES ALL RISK FROM ANY INJURY RESULTING FROM IMPROPER INSTALLATION, USE, OR MAINTENANCE OF TRIPODS, TOWERS, OR...
  • Page 30 Campbell Scientific Regional Offices Australia France Thailand Location: Garbutt, QLD Australia Location: Vincennes, France Location: Bangkok, Thailand Phone: 61.7.4401.7700 Phone: 0033.0.1.56.45.15.20 Phone: 66.2.719.3399 Email: info@campbellsci.com.au Email: info@campbellsci.fr Email: info@campbellsci.asia Website: www.campbellsci.com.au Website: www.campbellsci.fr Website: www.campbellsci.asia Brazil Germany Location: São Paulo, SP Brazil...
