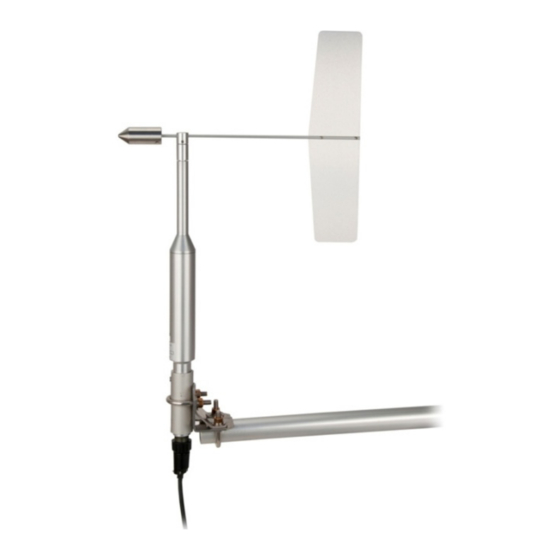

- Page 1 020C Wind Direction Sensor Revision: 6/16 C o p y r i g h t © 2 0 1 2 - 2 0 1 6 C a m p b e l l S c i e n t i f i c ,...
- Page 3 Limited Warranty “Products manufactured by CSI are warranted by CSI to be free from defects in materials and workmanship under normal use and service for twelve months from the date of shipment unless otherwise specified in the corresponding product manual. (Product manuals are available for review online at www.campbellsci.com.) Products not manufactured by CSI, but that are resold by CSI, are warranted only to the limits extended by the original manufacturer.
- Page 4 (435) 227-9106. Campbell Scientific is unable to process any returns until we receive this form. If the form is not received within three days of product receipt or is incomplete, the product will be returned to the customer at the customer’s expense.
- Page 5 • Periodically (at least yearly) check electrical ground connections. WHILE EVERY ATTEMPT IS MADE TO EMBODY THE HIGHEST DEGREE OF SAFETY IN ALL CAMPBELL SCIENTIFIC PRODUCTS, THE CUSTOMER ASSUMES ALL RISK FROM ANY INJURY RESULTING FROM IMPROPER INSTALLATION, USE, OR MAINTENANCE OF TRIPODS, TOWERS, OR ATTACHMENTS TO TRIPODS AND TOWERS SUCH AS SENSORS, CROSSARMS, ENCLOSURES, ANTENNAS, ETC.
-
Page 7: Table Of Contents
C. Wind Direction Sensor Orientation ....... C-1 Determining True North and Sensor Orientation ......C-1 Figures 7-1. CM220 right-angle mounting bracket ..........8 7-2. 1049 Nu-Rail® fitting ................8 7-3. 020C alignment notches ............... 9 C-1. Magnetic declination for the contiguous United States (2004) ..C-2... - Page 8 Declination angles west of true North are added to 0° to get true North .................... C-3 Tables 7-1. Wire Color, Wire Function, and Connections ........5 8-1. 020C Wind Direction Sensor Troubleshooting ......... 10 CRBasic Example B-1. CR1000 Example Program .............. B-1...
-
Page 9: Introduction
• The 020C is a precision instrument. Please handle it with care. • If the 020C will be installed at heights over six feet, be familiar with tower safety and follow safe tower-climbing procedures. • Danger — Use extreme care when working near overhead electrical wires. - Page 10 020C Wind Direction Sensor Use the following procedure to get started. Open Short Cut. Click New Program. Select Datalogger Model and Scan Interval (default of 5 seconds is OK for most applications). Click Next.
- Page 11 020C Wind Direction Sensor Under the Available Sensors and Devices list, select the Sensors | Meteorological | Wind Speed & Direction folder. Select 020C Wind Direction Sensor and click to move the selection to the selected device window. When the sensor points south with the hub and column notches aligned, no installation-offset correction is required.
-
Page 12: Overview
The built-in electronics provide a voltage source for the potentiometer and amplifies the output signal for transmission over long cable lengths. The 020C includes an internal heater, which provides positive clean aspiration through the bearings, thereby greatly increasing bearing life. It also includes electrical field surge protection that reduces problems associated with static fields, near-miss lightning hits, and poor grounding systems. -
Page 13: Installation
020C Wind Direction Sensor Output: 0 to 5 Vdc for 0 to 360° or 0 to 2.5 Vdc (Section 7.2.1.1, Output Voltage ( p. 6) 100 Ω maximum Output Impedance: Maximum Cable Length: 91.44 m (300 ft) Weight: 0.68 kg (1.5 lb) -
Page 14: Datalogger Programming
(p. B-1) 7.2.1.1 Output Voltage The default output voltage range is 0 to 5 Vdc, which most Campbell Scientific dataloggers can measure. For the CR300 datalogger to measure the 020C, move the jumper block under the outer cover of the main body of the probe. -
Page 15: Siting
020C Wind Direction Sensor Siting Locate wind sensors away from obstructions such as trees and buildings. A general rule is that a horizontal distance of at least ten times the height of the obstruction should be between the wind set and the obstruction. If mounting the sensor on the roof of a building is necessary, the height of the sensor above the roof should be at least 1.5 times the height of the building. -
Page 16: Cm220 Right-Angle Mounting Bracket
020C Wind Direction Sensor Sensor column Alignment set screw CM220 mounting bracket U-bolt Bushing CM200-series Cable crossarm connector U-bolt FIGURE 7-1. CM220 right-angle mounting bracket Bushing Alignment screw Set screw 1 x 3/4 Nu-Rail® fitting Set screw CM200-series crossarm FIGURE 7-2. 1049 Nu-Rail® fitting... -
Page 17: Sensor Check-Out
Tighten the U-bolt if using the CM220 (FIGURE 7-1) or set screws if using the Nu-Rail® fitting (FIGURE 7-2). Attach the sensor cable to the six-pin male connector on the 020C (FIGURE 7-1). Route the sensor cable along the underside of the crossarm to the tripod or tower, and to the instrument enclosure. -
Page 18: Troubleshooting
(p. 9) Return to Campbell Scientific for calibration. 12 to 24 Month Intervals: Return to Campbell Scientific for replacement of sensor bearings. Return to Campbell Scientific for replacement of sensor potentiometer. References The following references give detailed information on siting wind-speed and wind-direction sensors. - Page 19 020C Wind Direction Sensor EPA, 1987: On-Site Meteorological Program Guidance for Regulatory Modeling Applications, EPA-450/4-87-013, Office of Air Quality Planning and Standards, Research Triangle Park, NC 27711. The State Climatologist, 1985: Publication of the American Association of State Climatologists: Height and Exposure Standards, for Sensors on Automated Weather Stations, vol.
- Page 20 020C Wind Direction Sensor...
-
Page 21: Importing Short Cut Code Into Crbasic Editor
Appendix A. Importing Short Cut Code Into CRBasic Editor This tutorial shows the following: • How to import a Short Cut program into a program editor for additional refinement • How to import a wiring diagram from Short Cut into the comments of a custom program Short Cut creates files, which can be imported into CRBasic Editor. -
Page 23: Example Program
'Main Scan Scan(1,Sec,1,0) 'Default Datalogger Battery Voltage measurement 'BattV' Battery(BattV) 'Default Wiring Panel Temperature measurement 'PTemp_C' PanelTemp(PTemp_C,_60Hz) '020C Wind Direction Sensor measurement 'WindDir' VoltSe(WindDir,1,mV5000,1,1,0,_60Hz,0.072,0) 'Offset correction for vane installed with 270 degree 'installation orientation WindDir = (WindDir + 90 + 360)MOD... -
Page 25: Wind Direction Sensor Orientation
Appendix C. Wind Direction Sensor Orientation C.1 Determining True North and Sensor Orientation Orientation of the wind direction sensor is done after the datalogger has been programmed, and the location of true North has been determined. True North is usually found by reading a magnetic compass and applying the correction for magnetic declination;... - Page 26 Appendix C. Wind Direction Sensor Orientation FIGURE C-1. Magnetic declination for the contiguous United States (2004)
- Page 27 Appendix C. Wind Direction Sensor Orientation FIGURE C-2. Declination angles east of true North are subtracted from 360° to get true North FIGURE C-3. Declination angles west of true North are added to 0° to get true North...
- Page 28 Appendix C. Wind Direction Sensor Orientation...
- Page 30 Santo Domingo, Heredia 40305 SOUTH AFRICA COSTA RICA • cleroux@csafrica.co.za • info@campbellsci.cc www.campbellsci.co.za www.campbellsci.cc Campbell Scientific Southeast Asia Co., Ltd. Campbell Scientific Ltd. 877/22 Nirvana@Work, Rama 9 Road Campbell Park Suan Luang Subdistrict, Suan Luang District 80 Hathern Road Bangkok 10250...
