Campbell 05103 Instruction Manual

Wind monitor
Hide thumbs Also See for 05103:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

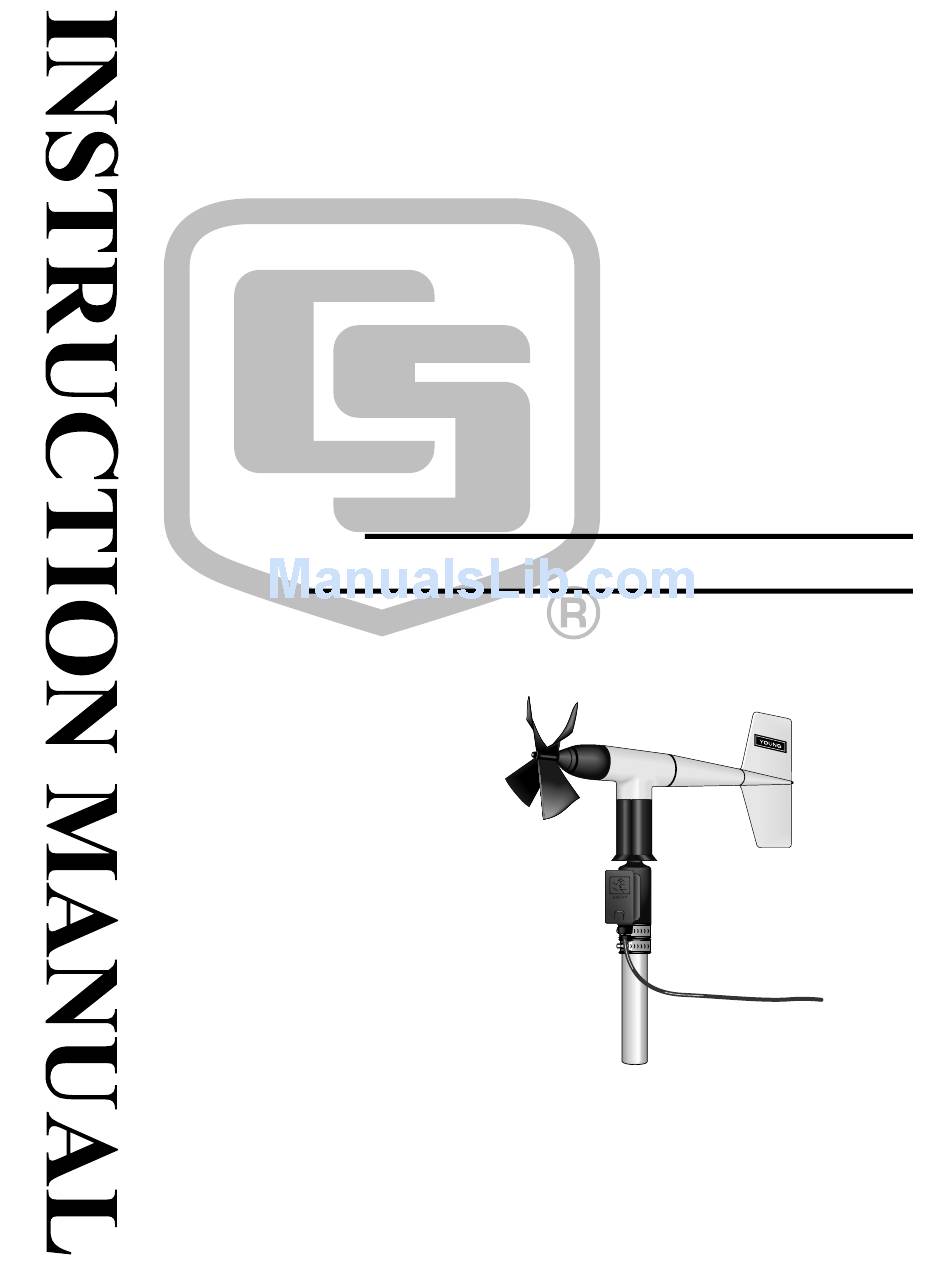

05103, 05106, and 05305
R.M. Young Wind Monitors
Revision: 8/07
C o p y r i g h t
©
1 9 8 4 - 2 0 0 7
C a m p b e l l
S c i e n t i f i c ,
I n c .

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 05103 and is the answer not in the manual?

Questions and answers

Related Manuals for Campbell 05103

Summary of Contents for Campbell 05103

  • Page 1 05103, 05106, and 05305 R.M. Young Wind Monitors Revision: 8/07 C o p y r i g h t © 1 9 8 4 - 2 0 0 7 C a m p b e l l S c i e n t i f i c ,...
  • Page 2 Warranty and Assistance The 05103, 05106, and 05305 R.M. YOUNG WIND MONITORS are warranted by CAMPBELL SCIENTIFIC, INC. to be free from defects in materials and workmanship under normal use and service for twelve (12) months from date of shipment unless specified otherwise. Batteries have no warranty.

  • Page 3: Table Of Contents

    05103, 05106, 05305 Table of Contents PDF viewers note: These page numbers refer to the printed version of this document. Use the Adobe Acrobat® bookmarks tab for links to specific sections. 1. General Description.............1 2. Specifications ..............1 3. Installation..............3 3.1 Siting......................3 3.2 Assembly and Mounting................3...
  • Page 4 Get True North ................A-2 A-3. Declination Angles West of True North are Added to 0 to Get True North ................A-3 B-1. 05103 Potentiometer in a Half Bridge Circuit ........B-1 Tables 1-1. Recommended Lead Lengths ..............1 4-1. Connections to Campbell Scientific Dataloggers ........5 5-1.

  • Page 5: General Description

    Wind Monitors 1. General Description The 05103, 05106, and 05305 Wind Monitor sensors are used to measure horizontal wind speed and direction. The 05305 is a high performance version of the 05103 designed to meet PSD specifications for air quality applications.
  • Page 6 1.0” IPS schedule 40 Weight (shipping 3.2 lbs (5.5 lbs); 2.5 lbs (5.5 lbs); approx.) 1.5 kg (2.3 kg) 1.1 kg (2.3 kg) Manufactured by RM Young (Traverse City, MI) and cabled by Campbell Scientific for use with our dataloggers.

  • Page 7: Installation

    Install the propeller to the propeller shaft using the nut provided with the sensor. The 05103 mounts to a standard 1” IPS schedule 40 pipe (1.31” O.D.). A 12” long mounting pipe ships with the 03001 for attaching the sensor to a 019ALU (Figure 3-1), or CM200 series crossarm with the CM220 or PN 1049 (Figures 3-2 and 3-3).

  • Page 8: Wind Monitor Mounted To The 019Alu Crossarm

    05103, 05106, and 05305 R.M. Young Wind Monitors Wind Monitor Mounting Pipe 019ALU Crossarm (supplied with sensor) FIGURE 3-1. Wind Monitor Mounted to the 019ALU Crossarm Wind Monitor PN 17953 Nu-Rail CM200 Series Crossarm Mounting Pipe (supplied with sensor) FIGURE 3-2. Wind Monitor Mounted to a CM200 Series Crossarm...

  • Page 9: Wiring

    CM220 Right Angle Mounting Kit 4. Wiring Connections to Campbell Scientific dataloggers are given in Table 4-1. When Short Cut for Windows software is used to create the datalogger program, the sensor should be wired to the channels shown in the wiring diagram created by Short Cut.

  • Page 10: Example Programs

    5. Example Programs This section is for users who write their own programs. A datalogger program to measure this sensor can be created using Campbell Scientific’s Short Cut Program Builder software. You do not need to read this section to use Short Cut.

  • Page 11: Wind Vector Processing Instruction

    (optional) using the measured wind speed and direction samples. 5.4 Example Programs The following programs measure the Wind Monitor 05103 every 5 seconds, and store mean wind speed, unit vector mean direction, and standard deviation of the direction every 60 minutes. Wiring for the examples is given in Table 5-3.

  • Page 12: Cr1000 Example Program

    'Main Program BeginProg Scan(5,Sec,1,0) 'Default Datalogger Battery Voltage measurement Batt_Volt: Battery(Batt_Volt) '05103 Wind Speed & Direction Sensor measurements WS_ms and WindDir: PulseCount(WS_ms,1,1,1,1,0.098,0) BrHalf(WindDir,1,mV2500,1,1,1,2500,True,0,_60Hz,355,0) ‘ mV5000 ‘range, 5000 mV excitation for CR3000 and CR5000 dataloggers If WindDir>=360 Then WindDir=0 'Call Data Tables and Store Data...

  • Page 13: Long Lead Lengths

    05103, 05106, and 05305 R.M. Young Wind Monitors 2: Excite-Delay (SE) (P4) 1: 1 Reps 2: 5 2500 mV Slow Range ; 5000 mV(slow/60 hz) Range for CR23X, 21X, CR7 3: 1 SE Channel 4: 1 Excite all reps w/Exchan 1 5: 2 Delay (0.01 sec units)

  • Page 14: Sensor Maintenance

    05103, 05106, and 05305 R.M. Young Wind Monitors For dataloggers programmed with CRBasic, increase the “Settling Time” parameter of the BRHalf instruction to 20 milliseconds (20,000 microseconds). The 60 Hz rejection option can not be used with the DC CAUTION Half Bridge instruction, when the delay is not zero.

  • Page 15: Wind Speed

    05103, 05106, and 05305 R.M. Young Wind Monitors 7.2 Wind Speed Symptom: No wind speed Check that the sensor is wired to the Pulse channel specified by the Pulse count instruction. Disconnect the sensor from the datalogger and use an ohm meter to check the coil.
  • Page 16 05103, 05106, and 05305 R.M. Young Wind Monitors This is a blank page.

  • Page 17: Wind Direction Sensor Orientation

    Appendix A. Wind Direction Sensor Orientation A.1 Determining True North and Sensor Orientation Orientation of the wind direction sensor is done after the datalogger has been programmed, and the location of True North has been determined. True North is usually found by reading a magnetic compass and applying the correction for magnetic declination;...
  • Page 18 Appendix A. Wind Direction Sensor Orientation Subtract declination from 360° Add declination to 0° 20 W 22 E 18 W 16 W 20 E 14 W 12 W 18 E 10 W 16 E 14 E 12 E 10 E FIGURE A-1.

  • Page 19: Get True North

    Appendix A. Wind Direction Sensor Orientation FIGURE A-3. Declination Angles West of True North Are Added to 0 to Get True North...
  • Page 20 Appendix A. Wind Direction Sensor Orientation This is a blank page.

  • Page 21: Brhalf Instruction

    (15V MAX) (V x ) AZIMUTH SIGNAL (V s ) AZIMUTH REFERENCE WIND SPEED REFERENCE FIGURE B-1. 05103 Potentiometer in a Half Bridge Circuit B.1 BRHalf Instruction The BRHalf instruction outputs a precise excitation voltage (V ), and measures the voltage between the wiper and ground (V ).
  • Page 22 Appendix B. Wind Direction Measurement Theory The maximum value that R will reach is R just before it crosses over from the west side of north to the east side of north (at this point R = 0). V reaches its maximum value of V .
  • Page 23 This is a blank page.
  • Page 24 Campbell Scientific Companies Campbell Scientific, Inc. (CSI) 815 West 1800 North Logan, Utah 84321 UNITED STATES www.campbellsci.com info@campbellsci.com Campbell Scientific Africa Pty. Ltd. (CSAf) PO Box 2450 Somerset West 7129 SOUTH AFRICA www.csafrica.co.za cleroux@csafrica.co.za Campbell Scientific Australia Pty. Ltd. (CSA)
