Quadratec QR3 Installation Manual page 5

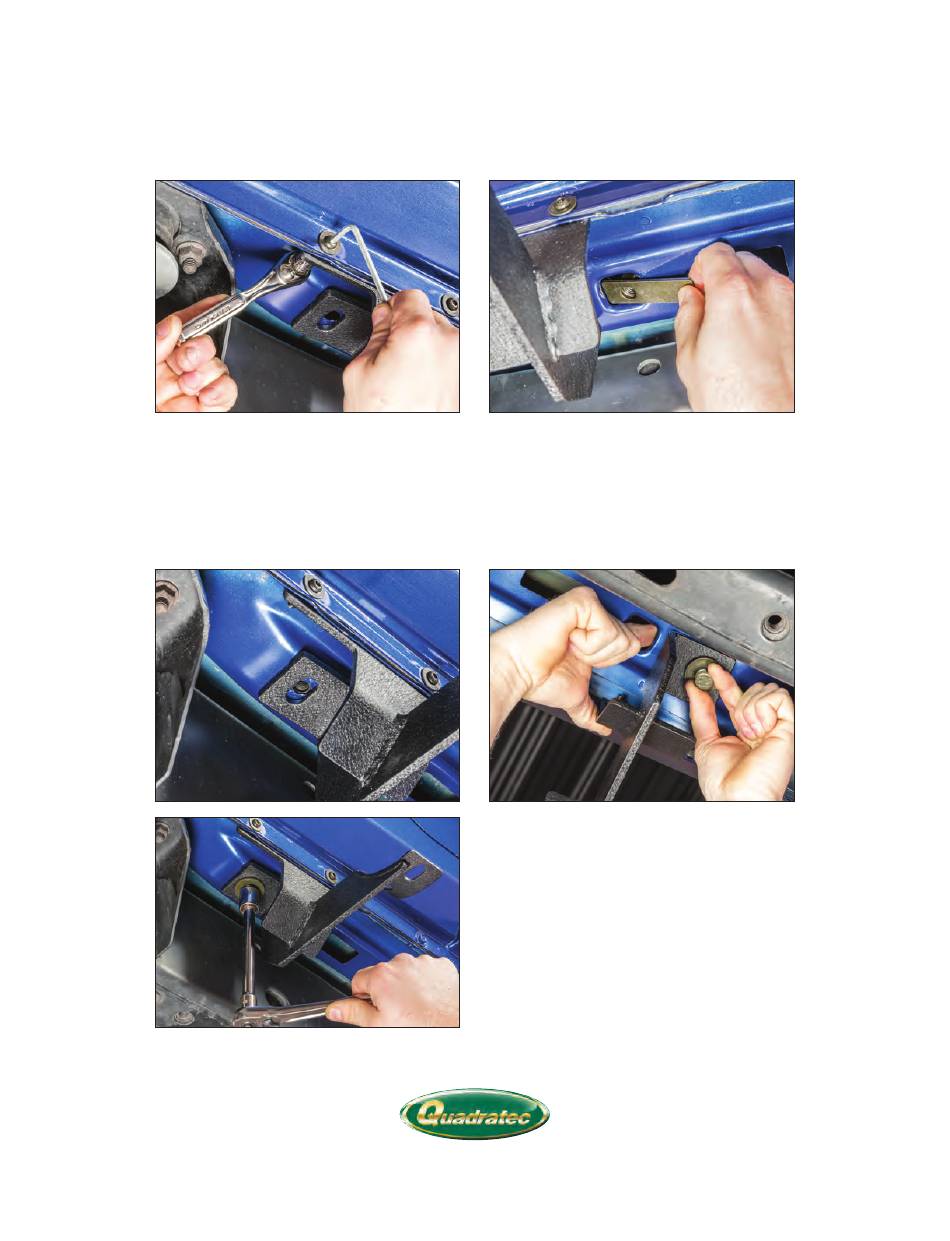

Step Two: Install Underside 10mm Bolts
Figure 5
Installing Underside 10mm Bolts
Under the body just under where you
mounted the bracket to the pinch welds
above, insert a nut plate into the open-
ing with the nut facing upwards (Fig 6).
Line up the nut on the Nut Plate with
Figure 7
Figure 9
the hole in the Bracket. Bolt the Bracket
to the Nut Plate with (1) 10mm x 35mm
Hex Bolt, (1) 10mm Lock Washer and (1)
10mm Flat Washer, (Fig 8 & 9).
Figure 8
Use the 10mm socket, extention and
ratchet to tighten up the 10mm bolt as
shown in Figure 9.
®
The Trusted Source
5
Figure 6
