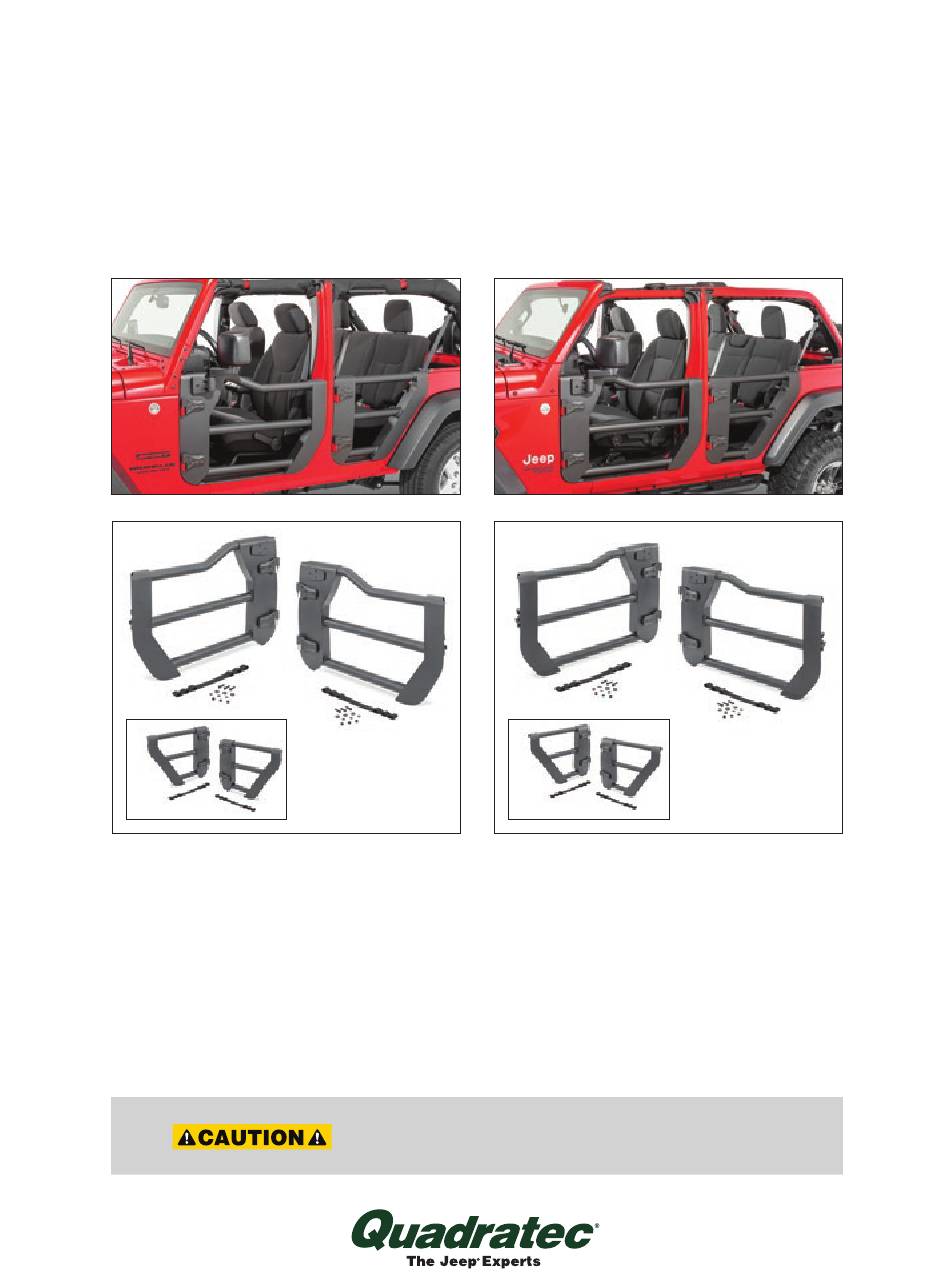

Tube Doors for Wrangler
Installation Manual: for '07 - Current JK & JL Vehicles
Front
Rear
PARTS LIST:
Front or Rear Doors
Door Check Straps
Mirror Mounting Hardware
1/4" Countersunk Screws
Hex Nuts
Split Washers
Washers
Quadratec
JK
Version
REQUIRED TOOLS:
QTY 2
Safety Glasses
QTY 2
5mm Hex Key For Door
5/32" Hex Key For Mirrors
13mm Wrench For Doors
(Front Doors Only)
QTY 6
3/8" Wrench For Mirrors
QTY 6
T50 Torx Socket For Door Nuts
QTY 6
T40 Torx Socket For Hinge Bolts
QTY 6
10 mm Wrench For Door Stops
READ ALL SAFETY MESSAGES AND UNDERSTAND ALL
INSTRUCTIONS BEFORE ATTEMPTING TO INSTALL THIS
PRODUCT. ALWAYS WEAR SAFETY GLASSES DURING INSTALL.
®
11147.10XX
#
Front
Rear
JL
Version
Advertisement
Related Manuals for Quadratec 11147.10 Series
Summary of Contents for Quadratec 11147.10 Series
- Page 1 Quadratec ® Tube Doors for Wrangler Installation Manual: for ’07 - Current JK & JL Vehicles 11147.10XX Front Front Version Version Rear Rear PARTS LIST: REQUIRED TOOLS: Front or Rear Doors QTY 2 Safety Glasses Door Check Straps QTY 2 5mm Hex Key For Door 5/32”...
-
Page 2: Installation Instructions
A Few Words About Product Safety: Throughout these instructions import- Your Quadratec Tube Doors enhance ® ant safety information is generally the look, visibility, and performance of preceded by one of three signal words your off-road capable vehicle. Before indicating the relative risk of injury,... - Page 3 Installation Instructions: FIG 1 FIG 2 Start by locating the hinge fasteners. Align the hinge pins with the factory Loosen the fasteners on the upper and door hinges of your vehicle and gently lower hinges slightly with a 5mm Hex lower the doors onto the hinges.
- Page 4 13mm wrench and a T40 torx bit engages with two clicks. The Quadratec (13mm wrench only on JK rear doors). tube doors are equipped with two stage Adjust the position of the latch as latches;...
- Page 5 Installation Instructions: FIG 10 Open the door by lifting up on the latch The check the straps have multiple knob on the inside of the door. Gently positions to allow for adjustment. swing the door open and loop the door Adjust the position of the straps so that check strap over the hook on the inside he door will not open too far and come...
- Page 6 Installation Instructions: Mirrors FIG11 FIG12 Optional mirror installation for front Pass the 1/4” counter sunk screws threw doors: Align the optional mirrors with the holes in the mirror and secure them the holes in the mounting bosses on with a washer, split washer and hex the doors.
- Page 7 Installation Results: Version Version...
- Page 8 Quadratec to only to Quadratec branded accessories first sold obtain a RGA number (610-701-3336). All labor, in the United States, Quadratec warrants to the removal, shipping and installation costs are initial retail purchaser only that your Quadratec customer’s responsibility.
